8.3.5 Graphics accelerator module
The graphic accelerator module is used to display the Chrom-ART accelerator capabilities
and how it offloads the CPU.
The five operations listed below are used:
• Alpha8 blend
• Rectangle copy
• Bitmap copy
• Rectangle blend
• Bitmap blend

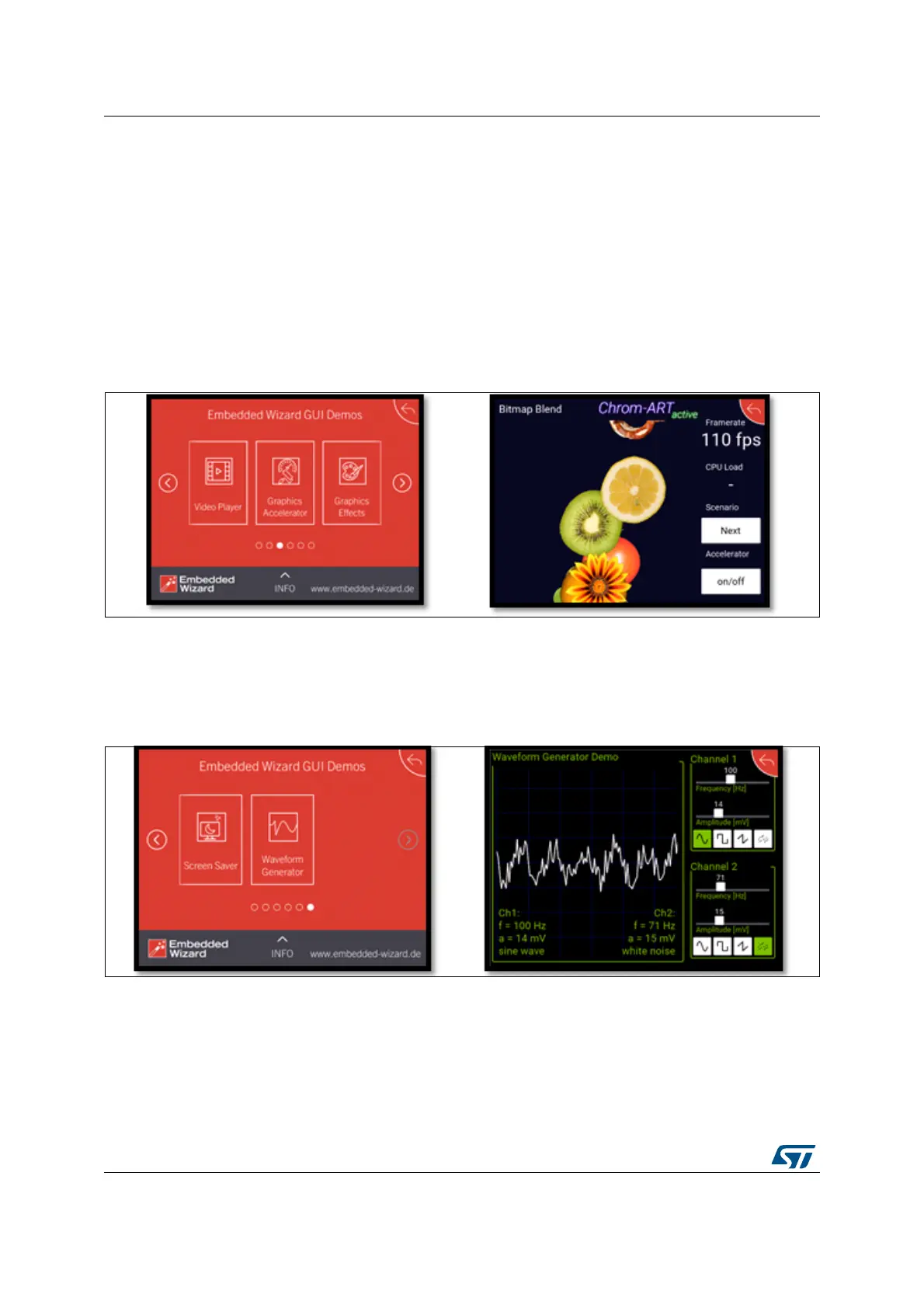

Figure 59. Embedded wizard - Graphics accelerator module
8.3.6 Waveform generator module
The waveform generator module displays the possibility to emulate waveform generation
and signal frequency display.
Figure 60. Embedded wizard - Waveform generator module
