UM2222 Rev 2 21/76
UM2222 Kernel description
75
3.10 Demonstration repository
The STM32Cube is a component in the STM32Cube package. Figure 11 shows the
demonstration folder organization.

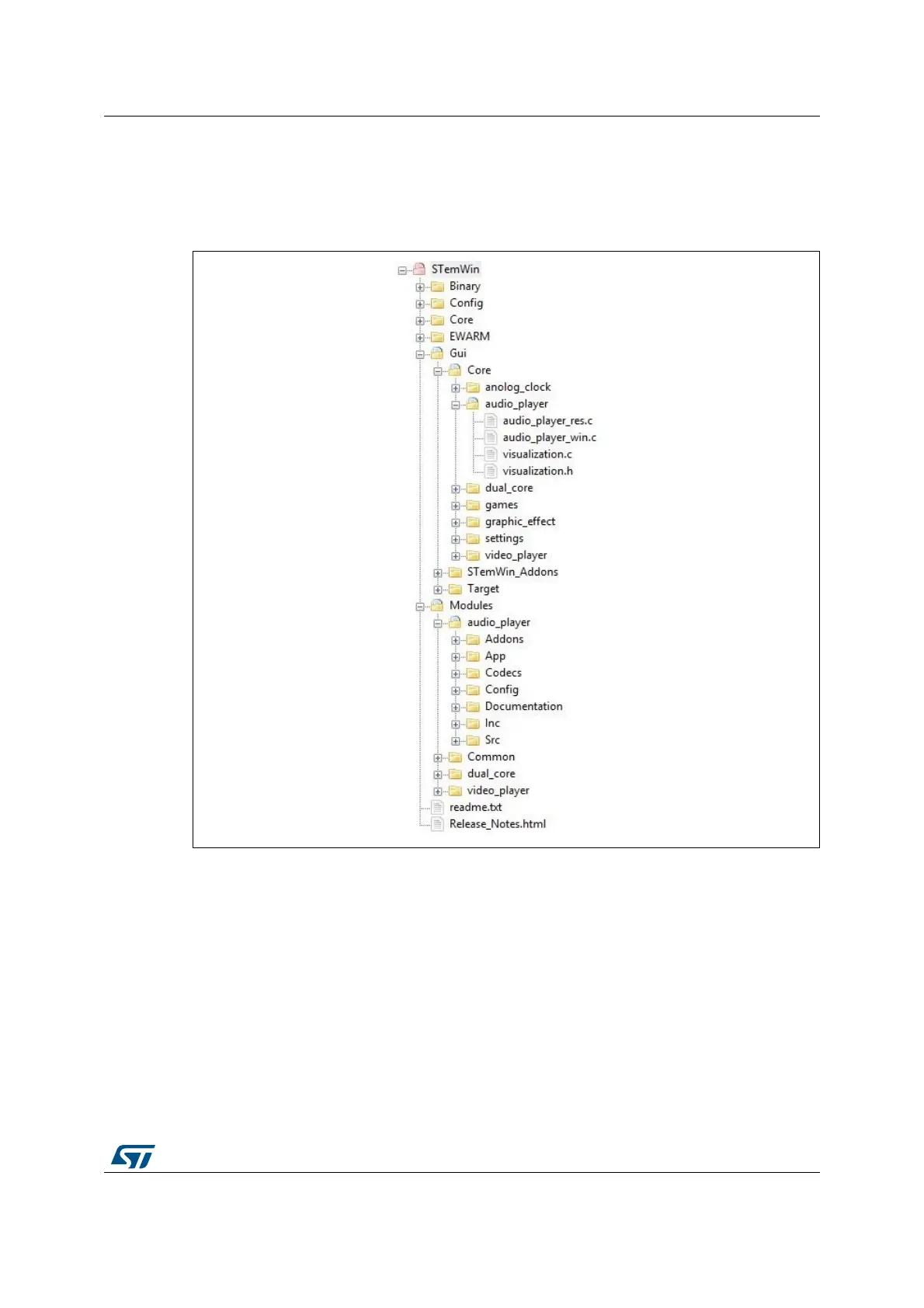

Figure 11. Demonstration folder structure
In the STM32Cube package, the demonstration sources are located in the Demonstration
folder of each supported board. The sources are divided into groups described as follows:
• Core: contains the kernel files
• GUI: contains the module core manager, the graphical aspect and the windowing
management of the modules. It contains also the binary file for added widgets based on
STemWin graphical library.
• Config: contains all components of the middleware and HAL configuration files
• Modules: contains the applicative part of the modules
• Binary: demonstration binary file in hex format
• Project settings: a folder per toolchain containing the project settings and the linker
files.
