9 Functional description of the STM32H745I-DISCO
demonstration modules
The STM32H745I dual core Discovery board demonstration aims to highlight the dual core
aspects and the analog features of the STM32H745I dual core device.
The Demonstration is based on a main menu that is usable to switch between:
• Oscilloscope and signals generator application
• EEMBC
®
CoreMark
®
application (provided in binary format)
• System information display
9.1 Main graphical interface
Overview
The main graphical interface of the demonstration allows the user to select the application to
launch. Here it is possible to run the Oscilloscope, the EEMBC
®
CoreMark
®
applications or
display the system information.
Content
The graphical interface contains three buttons to select by the user:
• Oscilloscope and signals generator
• EEMBC
®
CoreMark
®
benchmark

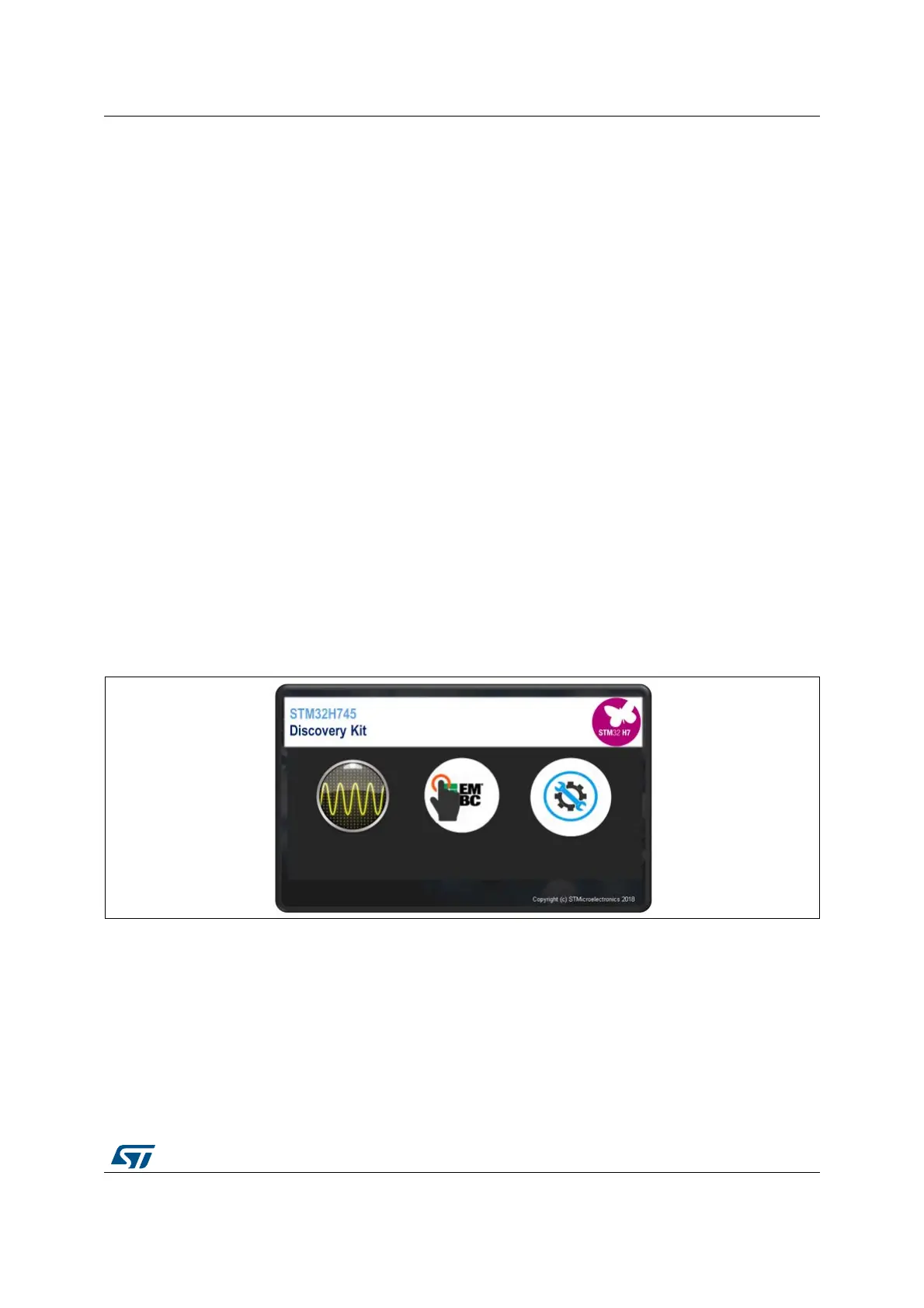

Figure 68. Main menu
9.2 System information
The system information shows the main demonstration information such as the board name,
the used device part number, the CPU speeds and demonstration firmware version.
