UM2222 Rev 2 61/76
UM2222 Functional description of STM32H743I-EVAL, STM32H747I-EVAL and STM32H747I-DIS-
75
8.3.3 Graphic effect module (only H743I-EVAL)
The graphic effect module demonstrates the computing capabilities of the platform to render
a real-time effect at full screen resolution.
The implemented filters are the following:
• Edge detection filter
• Smoothing filter
• Sharping filter
• Raising filter
• Motion blur filter
The CPU load metrics are displayed on the middle of top screen.

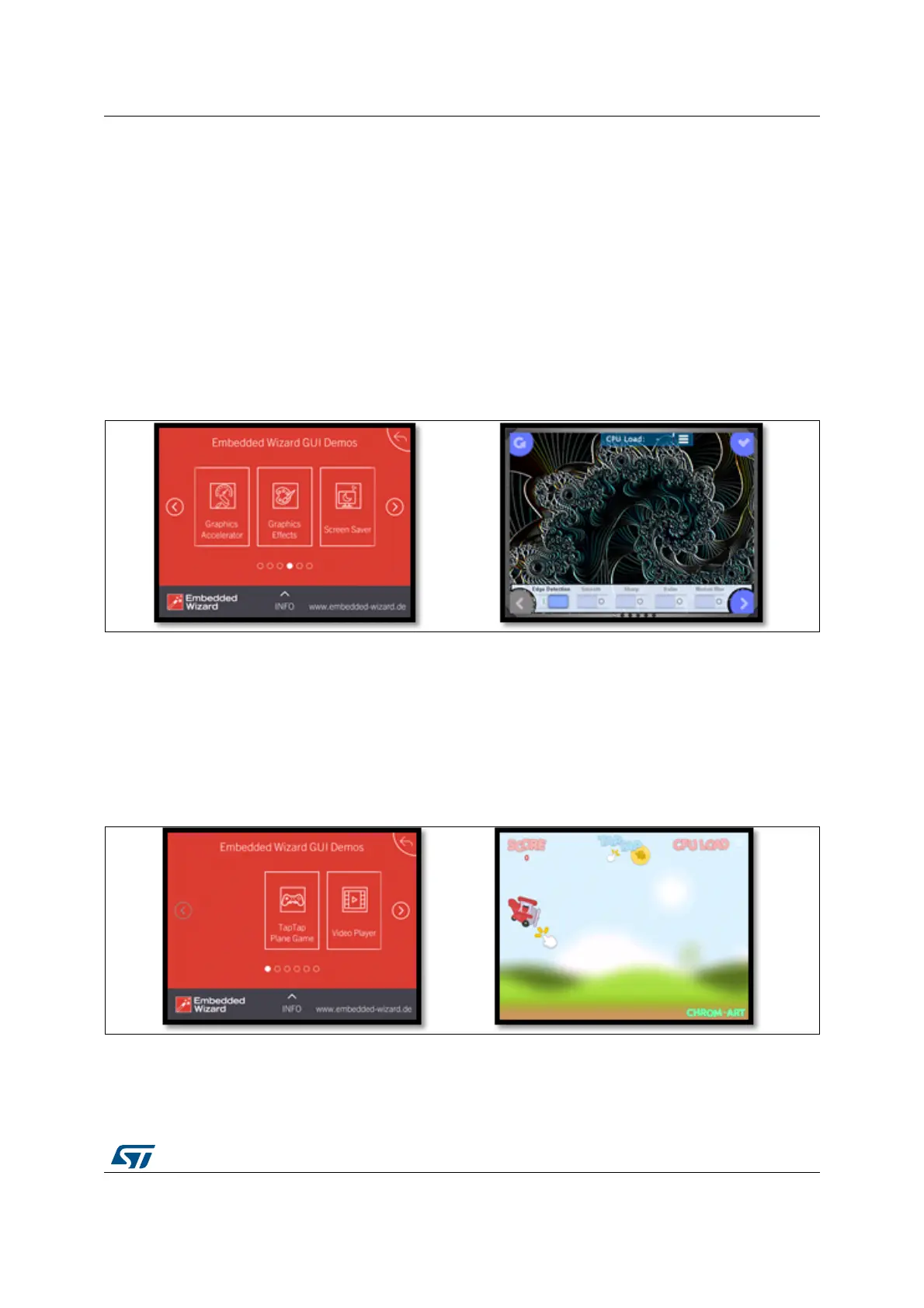

Figure 57. Embedded wizard - Graphic effect module
8.3.4 TapTap plane module (only H743I-EVAL)
The TapTap plane module allows the user to control a plane by touching anywhere on the
screen. The player has to collect the maximum number of stars to get the best score.
To display the processing capabilities of STM32H7 Series, the user can enable or disable
the Chrom-ART Accelerator by pressing on the Chrom-ART button at the bottom right of the
screen.
Figure 58. Embedded wizard - TapTap plane module
