UM2222 Rev 2 57/76
UM2222 Functional description of STM32H743I-EVAL, STM32H747I-EVAL and STM32H747I-DIS-
75
8.2.7 External hardware module
The external hardware module shows how TouchGFX can communicate with other parts of
the H7.
In the module are the user able to view the MCU Junction temperature and adjust the
screen brightness.
When entering the module the user is presented with the Junction temperature and by
swiping right, the user is able to use a slider to adjust the screen brightness.

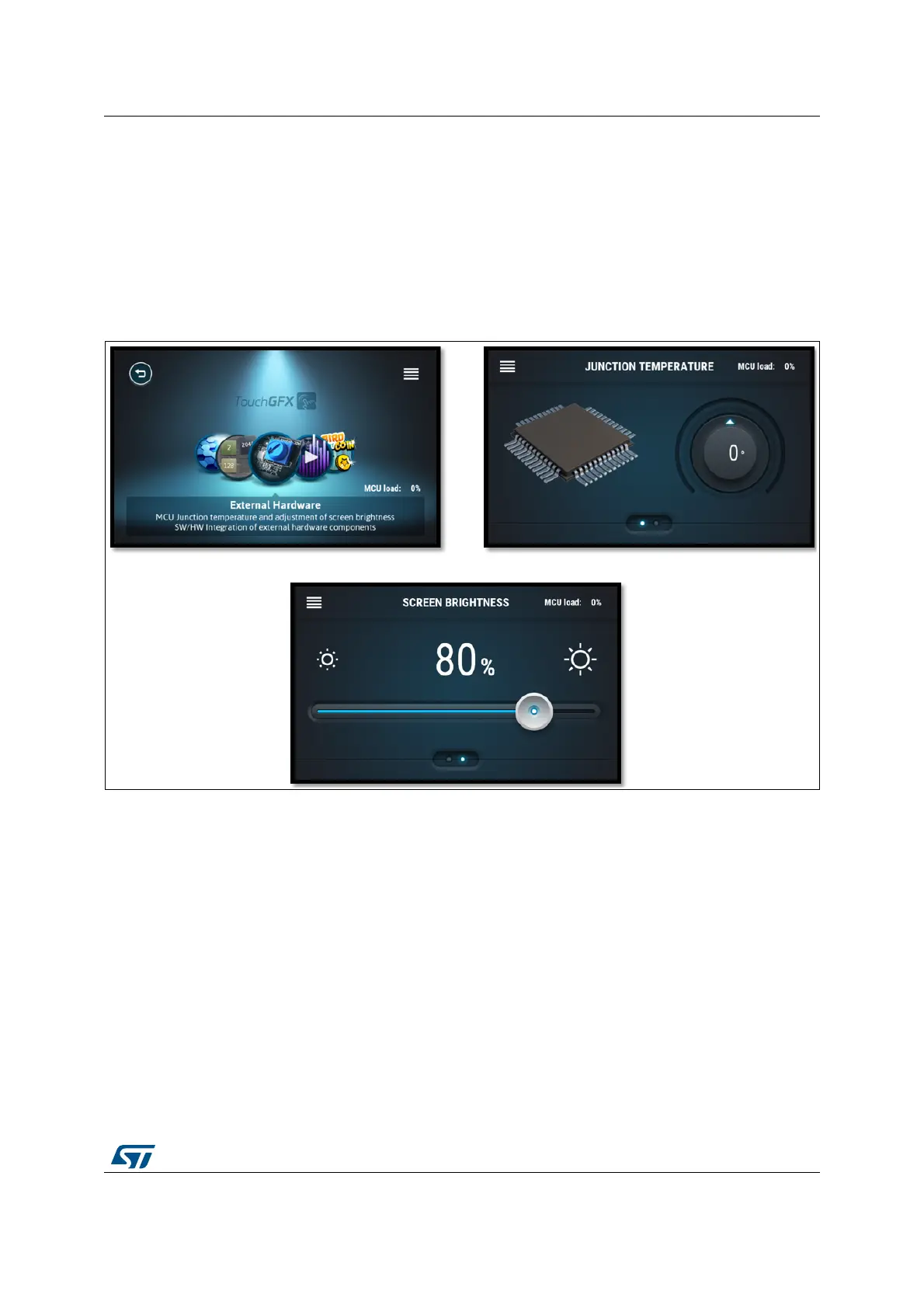

Figure 50. TouchGFX - External hardware module
8.2.8 Bird eat coin
Overview
The Bird Eat Coin game highlights the graphic performance of the Chrom-ART Accelerator.
The goal of the game is to use the bird to "eat" the coins coming at the bird to score points.
If the bird eats a bullet instead of a coin the game is lost and the score resets to 0.
