AN4661 Alternate function mapping to pins
53
2 Alternate function mapping to pins
In order to easily explore the peripheral alternate functions mapping to the pins it is
recommended to use the STM32CubeMX tool available on www.st.com.

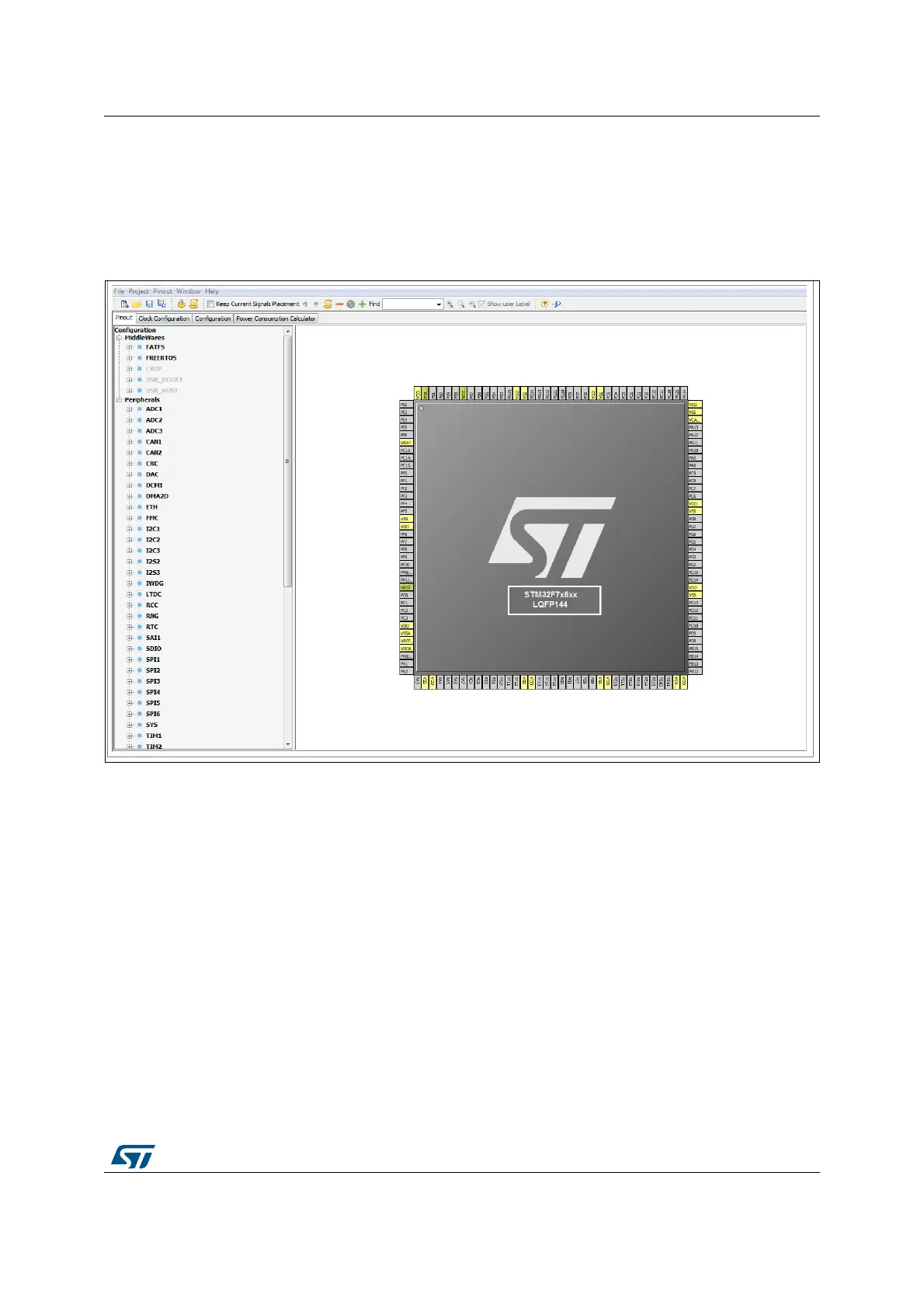

Figure 15. STM32CubeMX example screen-shot
