The supply ranges which never go below 1.8V minimum should be better managed by the
internal circuitry (no additional component needed, thanks to the fully embedded reset
controller).
When the internal reset is OFF, the following integrated features are no more supported:
• The integrated power-on reset (POR) / power-down reset (PDR) circuitry is disabled.
• The brownout reset (BOR) circuitry must be disabled.
• The embedded programmable voltage detector (PVD) is disabled.
• V
BAT
functionality is no more available and V
BAT
pin should be connected to V
DD
.
All the packages, except for the LQFP64 and the LQFP100, allow to disable the internal
reset through the PDR_ON signal when connected to V
SS
.

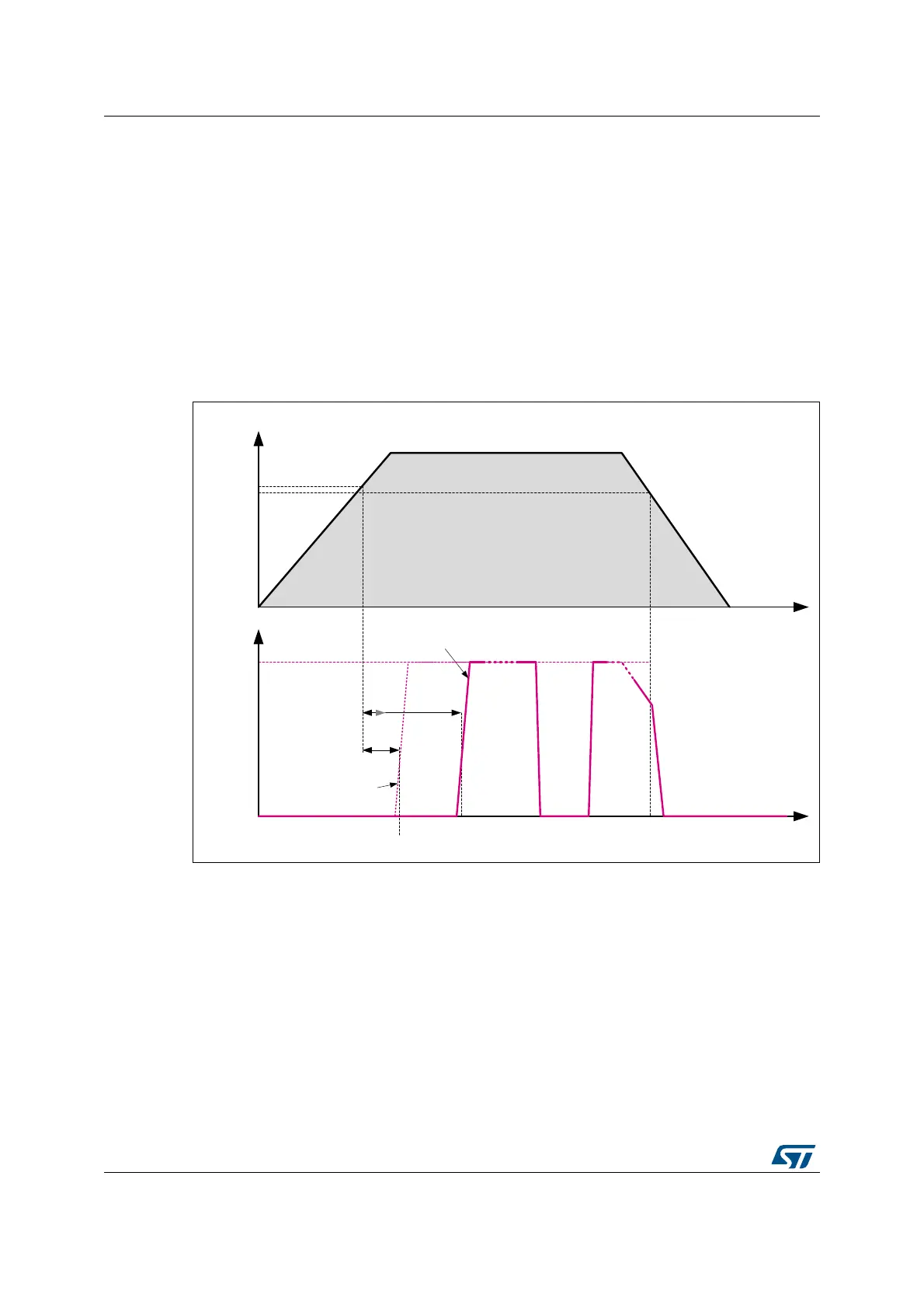

Figure 13. NRST circuitry timing example
2SHUDWLRQ 3RZHU'RZQSKDVH3RZHU2QSKDVH
069
9''
WLPH
9
9''GXULQJRSHUDWLRQNHSWDERYH9
WLPH
1567
1567.HSWORZE\
LQWHUQDOFLUFXLWU\
9''
5HVHWE\
LQWHUQDO
VRXUFHV
1567IRUFHGORZE\H[WHUQDO
VXSHUYLVRU
VXSHUYLVRU
ORZWULSSRLQW
VXSHUYLVRU
KLJKWULSSRLQW
1567.HSWORZE\
H[WHUQDOVXSHUYLVRU
7
5677(032
7
VXSHUYLVRU
7
VXSHUYLVRU!
7
5677(032
7
VXSHUYLVRU
7
5677(032
