A PVDO flag is available, in the PWR power control/status register (PWR_CSR1), to
indicate if V
DD
is higher or lower than the PVD threshold. This event is internally connected
to the EXTI line16 and can generate an interrupt if enabled through the EXTI registers.
The PVD output interrupt can be generated when V
DD
drops below the PVD threshold
and/or when V
DD
rises above the PVD threshold depending on EXTI line16 rising/falling
edge configuration. As an example the service routine could perform emergency shutdown
tasks.

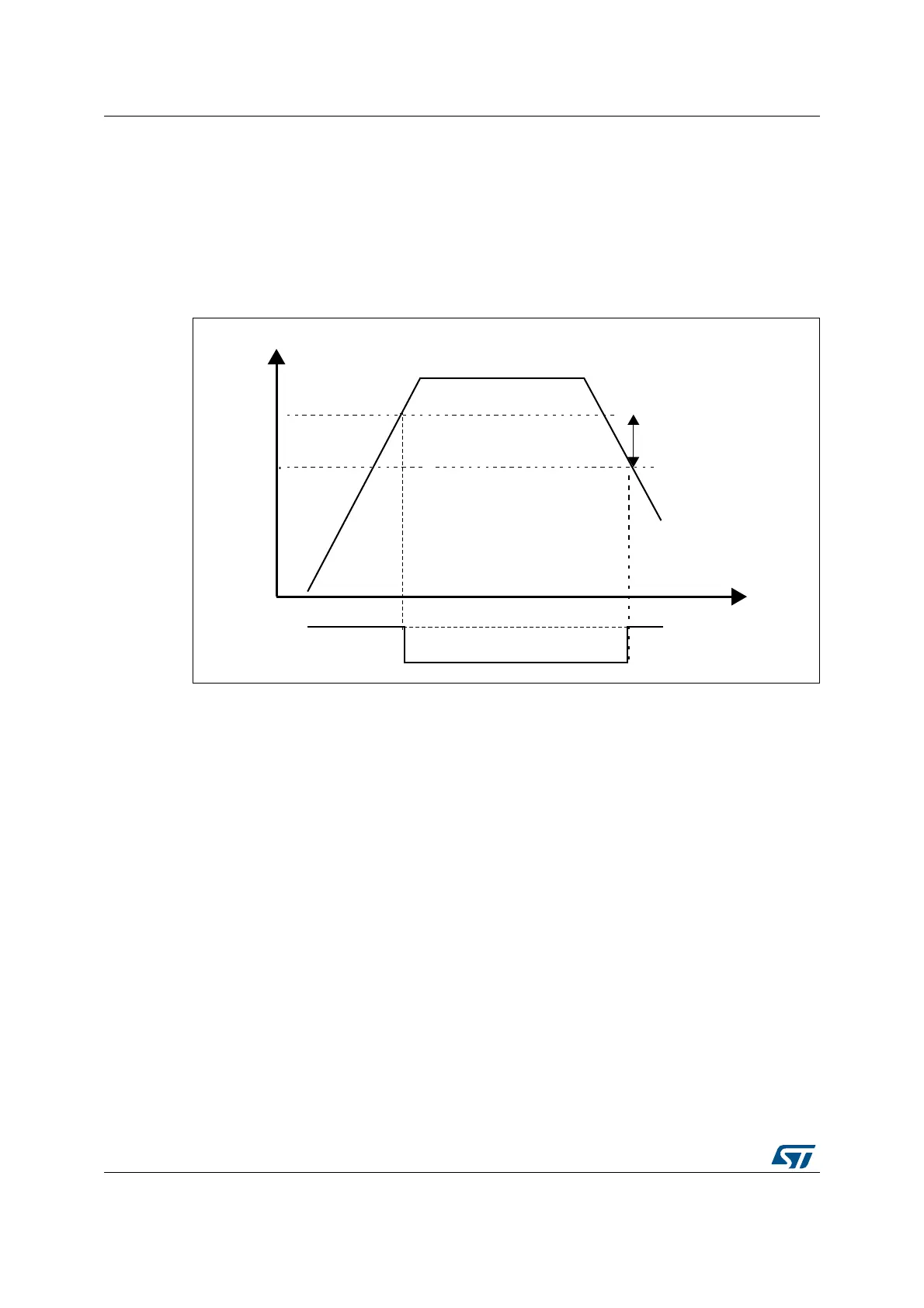

Figure 10. PVD threshold
1.3.3 System reset
A system reset sets all the registers to their reset values except the reset flags in the clock
controller CSR register and the registers in the backup domain (see
Figure 11).
A system reset is generated when one of the following events occurs:
1. A low level on the NRST pin (external reset).
2. Window watchdog end of count condition (WWDG reset).
3. Independent watchdog end of count condition (IWDG reset).
4. A software reset (Software reset).
5. A low-power management reset.
069
9''
P9
K\VWHUHVLV
39'WKUHVKROG
39'RXWSXW
939'
ULVLQJHGJH
939'
IDOOLQJHGJH
