Advanced-control timers (TIM1/TIM8/TIM20) RM0440
1104/2126 RM0440 Rev 4

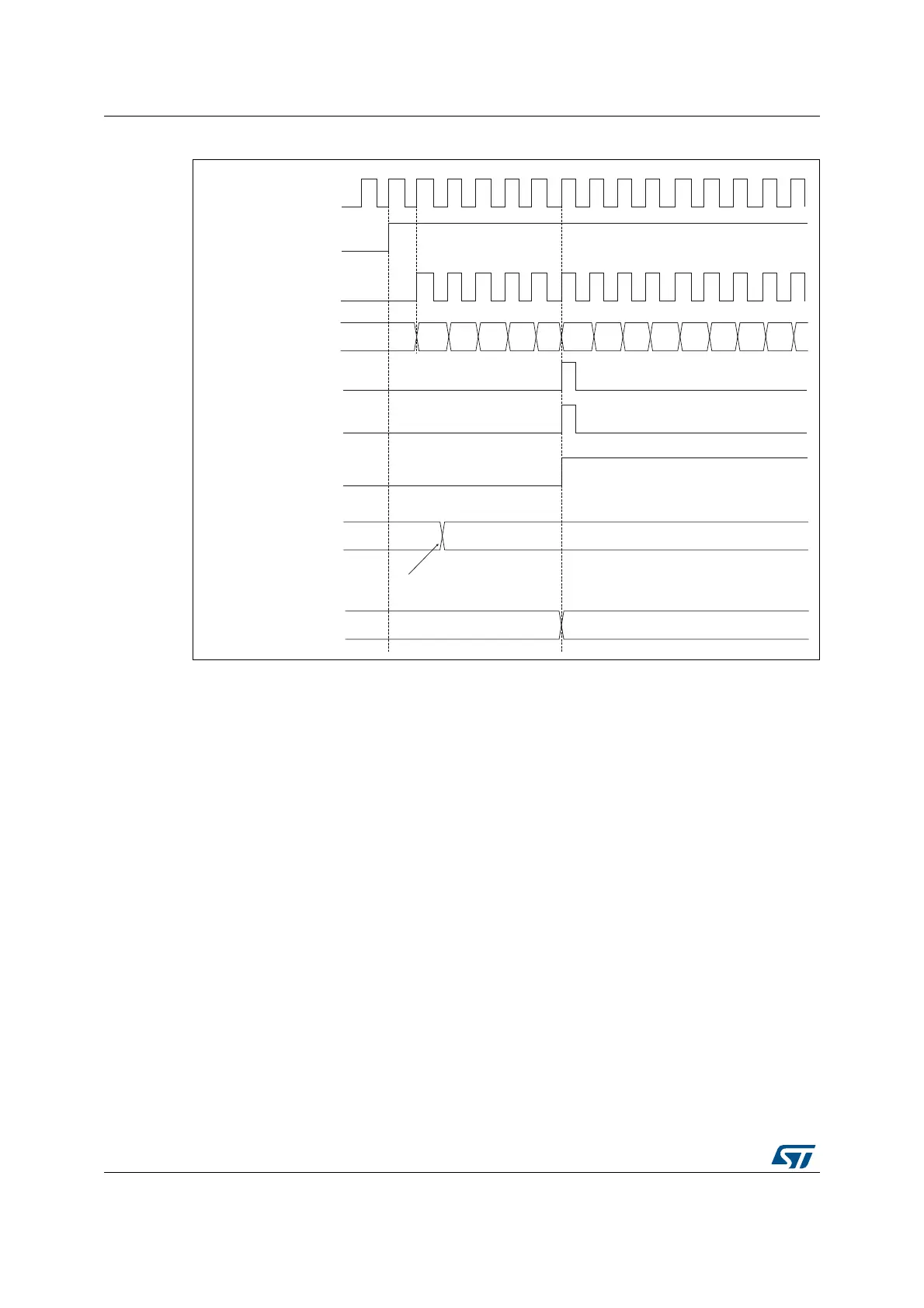

Figure 287. Counter timing diagram, update event with ARPE=1 (counter underflow)
MSv62314V1
FD 36
tim_psc_ck
tim_cnt_ck
Counter register
Update event (UEV)
Counter underflow
Update interrupt flag
(UIF)
00 02 03 04 05 06 0701
CEN
Auto-reload preload
register
Write a new value in TIMx_ARR
06 05 04 03 02 01
FD 36
Auto-reload active
register
