ST STM32G4 Series User Manual

FD controller area network (FDCAN) RM0440
1962/2126 RM0440 Rev 4
Extended message ID filtering
Figure 670 shows the flow for extended Message ID (29-bit Identifier) filtering. The
Extended Message ID filter element is described in Section 44.3.9.
Controlled by the Global Filter Configuration RXGFC and the Extended ID Filter
Configuration
RXGFC Message ID, Remote Transmission Request bit (RTR), and the
Identifier Extension bit (IDE) of received frames are compared against the list of configured
filter elements.

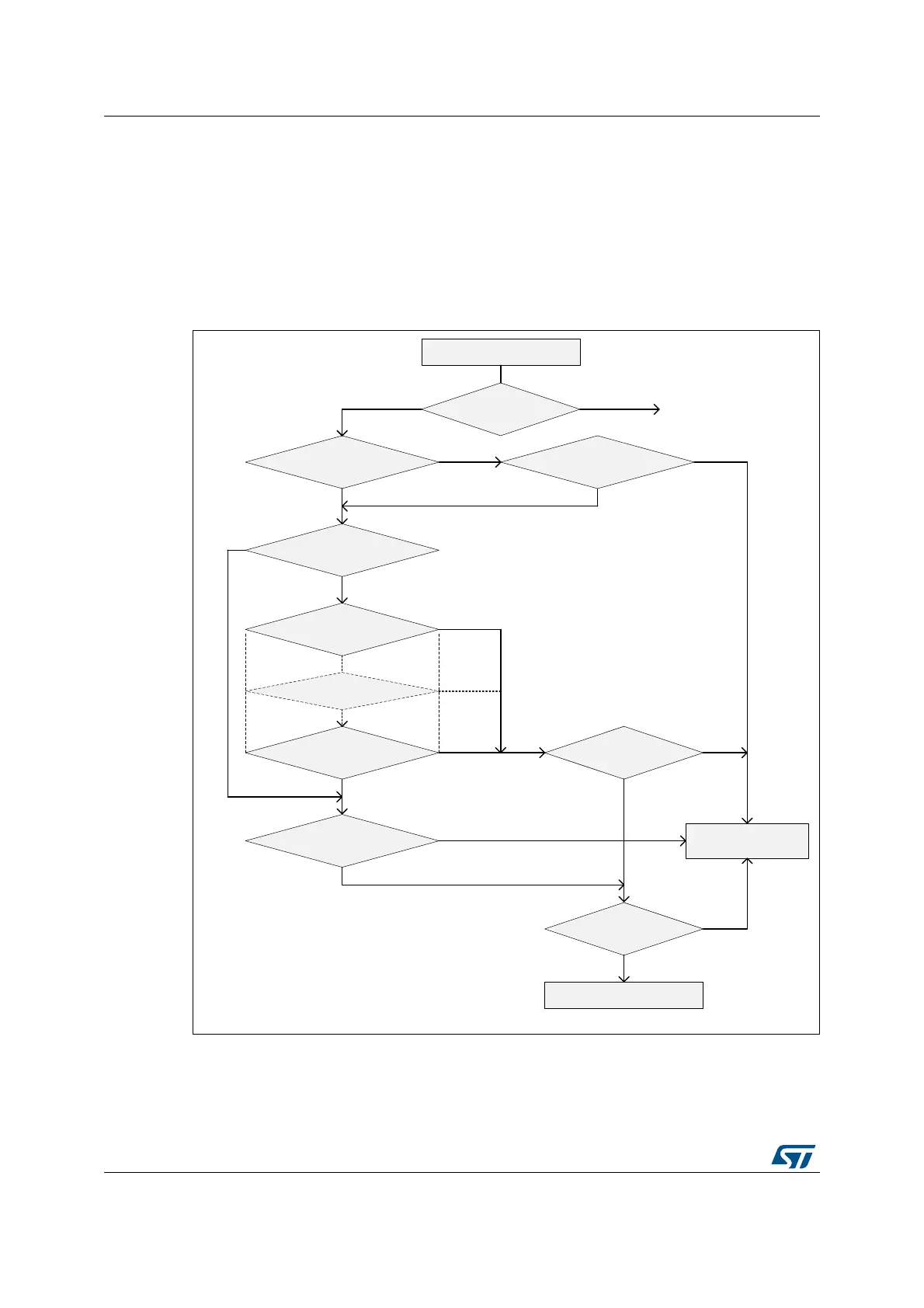

Figure 670. Extended Message ID filter path
The Extended ID AND Mask (XIDAM) is AND-ed with the received identifier before the filter
list is executed.
MS47280V1
Valid frame received
Bit identifier
Remote frame
Receive filter list enabled
Match filter
element #0
Accept
non-matching
frames
Acceptance
or Rejection
Target FIFO full
Append to target FIFO
Match filter
element #RXGFC.LSE
Reject remote frame
Discard frame
29-bit 11-bit
Yes
Yes
Yes
Yes
No
No
No
No
RXGFC[LSE[3:0]] > 0
RXGFC[LSE[3:0]] = 0
RXGFC[RRFE] = 0
RXGFC[RRFE] = 1
RXGFC[ANFE[1]] = 1
RXGFC[ANFE[1]] = 0
No
Yes
Reject
Accept
