ST STM32G4 Series User Manual

High-resolution timer (HRTIM) RM0440
872/2126 RM0440 Rev 4

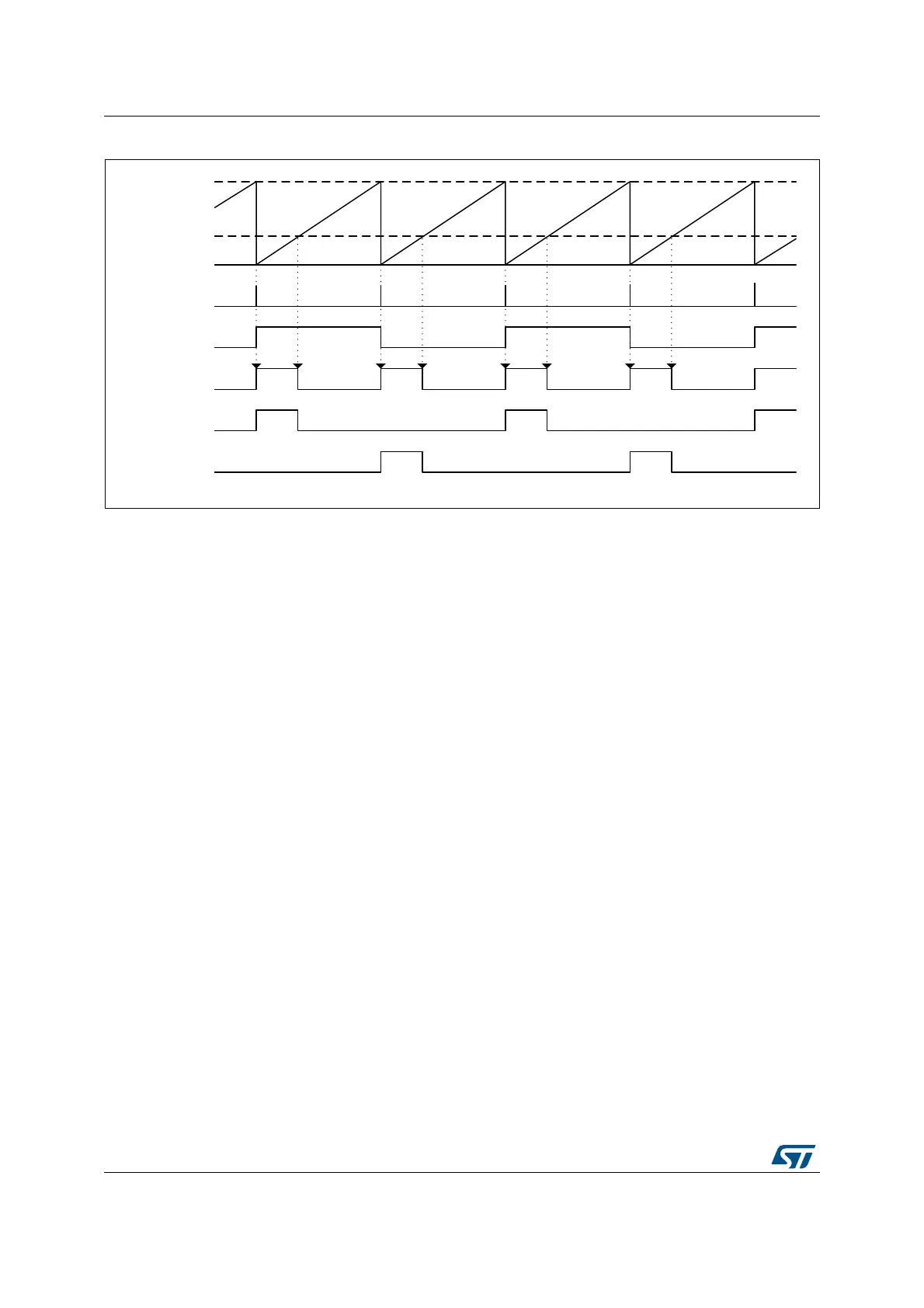

Figure 196. Push-pull mode example
Figure 197 shows how the deadtime is inserted in push-pull mode, for both positive and
negative deadtimes. In this case, the outputs are not complemented any more, and the
deadtime is applied on each output individually (both ouput 1 and output 2 of the crossbar
are used).
MS32269V2
Push-Pull logic
Crossbar output
HRTIM_CHx1
HRTIM_CHx2
Roll-over events
Compare 1
Period
Counter
Set on
period
Reset on
compare 1
