ST700 Dash Display System Installation
© Stack
9
Figure 1: ST700 Dash Display System
display location
❑ Position the ST700 Dash Display
System display so that the driver
can see it either square on or
from a position slightly above.

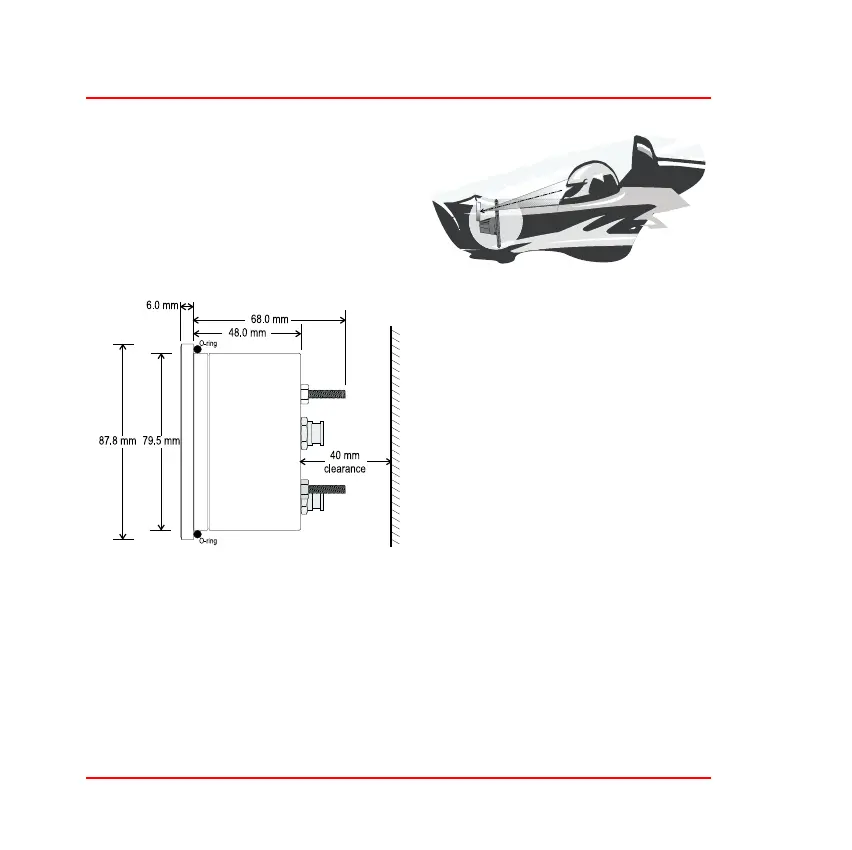

Figure 2: Overall dimensions
❑ Make certain there is suffi-
cient space behind the instru-
ment panel to accept the ST700
Dash Display System display.
Allow additional space so that
you may run and connect the
wiring harness without the
need to apply sharp bends to
the harness.
Figure 2 shows the overall dimensions of the ST700 Dash Display Sys-
tem display, which fits into a standard 80 mm diameter hole.
Wiring Harness
Stack supplies a wiring harness to connect the ST700 Dash Display Sys-
tem within the vehicle. If you find that the standard wiring harness is
unsuitable for installation on your particular vehicle, contact Stack or an
