Stack ST700 - Trackside I.R. Beacon (Optional)

Installation ST700 Dash Display System
18

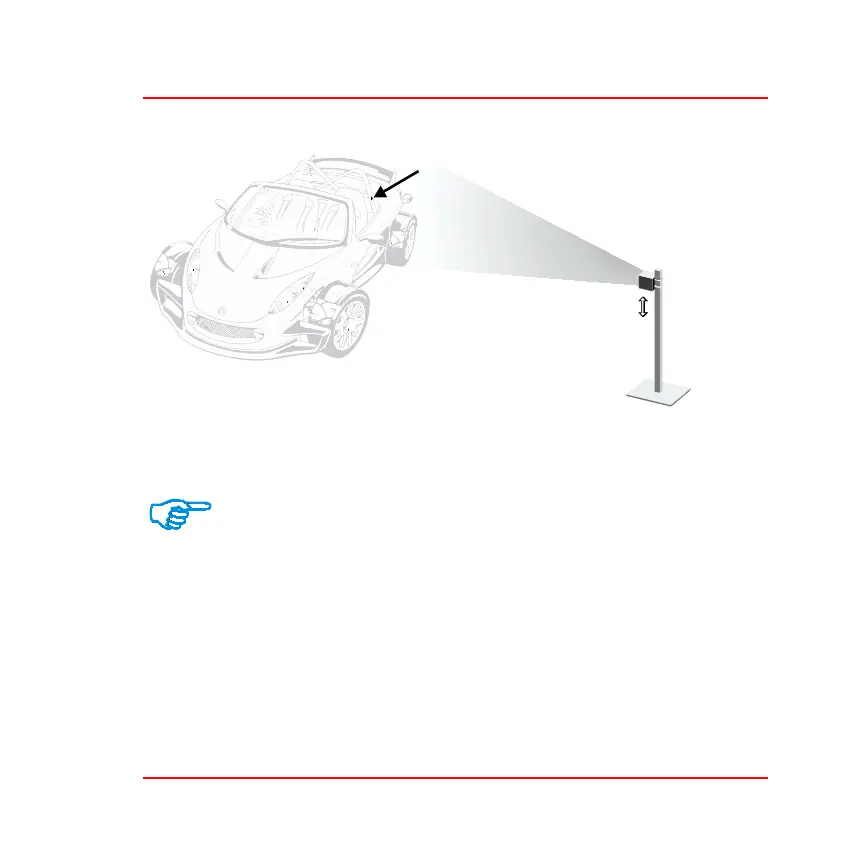

Figure 8: Infrared beacon alignment
Trackside I.R. Beacon (optional)
There must be only one Stack trackside beacon used on the track. Do
not place your beacon half way around the track because this might
inconvenience other users of Stack equipment.
If you have fitted the lap timing sensor to your vehicle, you will need to
use the trackside IR beacon to trigger the sensor for each lap.
1. Choose a suitable location for the beacon:
❑ Install the beacon as close as possible to the start/finish line, and
at least 4 metres (12 feet) from other types of beacon.
I
n
f
r
a
r
e
d
b
e
a
Lap timing sensor
Infrared beacon
adjustable for heigh
t
