ST700 Dash Display System Installation
© Stack
15
Standard contact breaker system
Connect the ‘ES’ wire of the harness to the negative contact breaker ter-
minal on the coil as shown in Figure 5.
Electronic ignition connection
Connect to the electronic ignition of the vehicle as indicated in Figure 6.
If your ST700 Dash Display System includes the Lap Timing sensor, the
Wheel Speed sensor or any pressure or temperature sensors, follow the
instructions between page 16 and page 27 to install them. Otherwise,
turn to page 27 for instructions to connect your ST700 Dash Display Sys-
tem to the switched battery circuit of your vehicle.

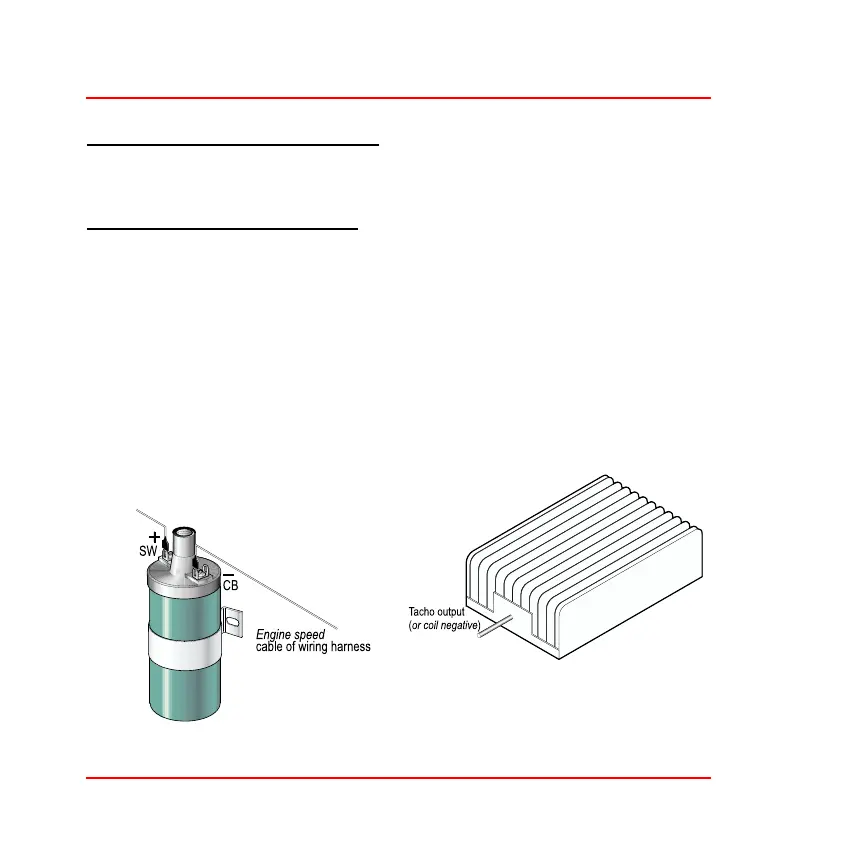

Figure 5: Standard contact breaker
connection
Figure 6: Connection to electronic ig-
nition
