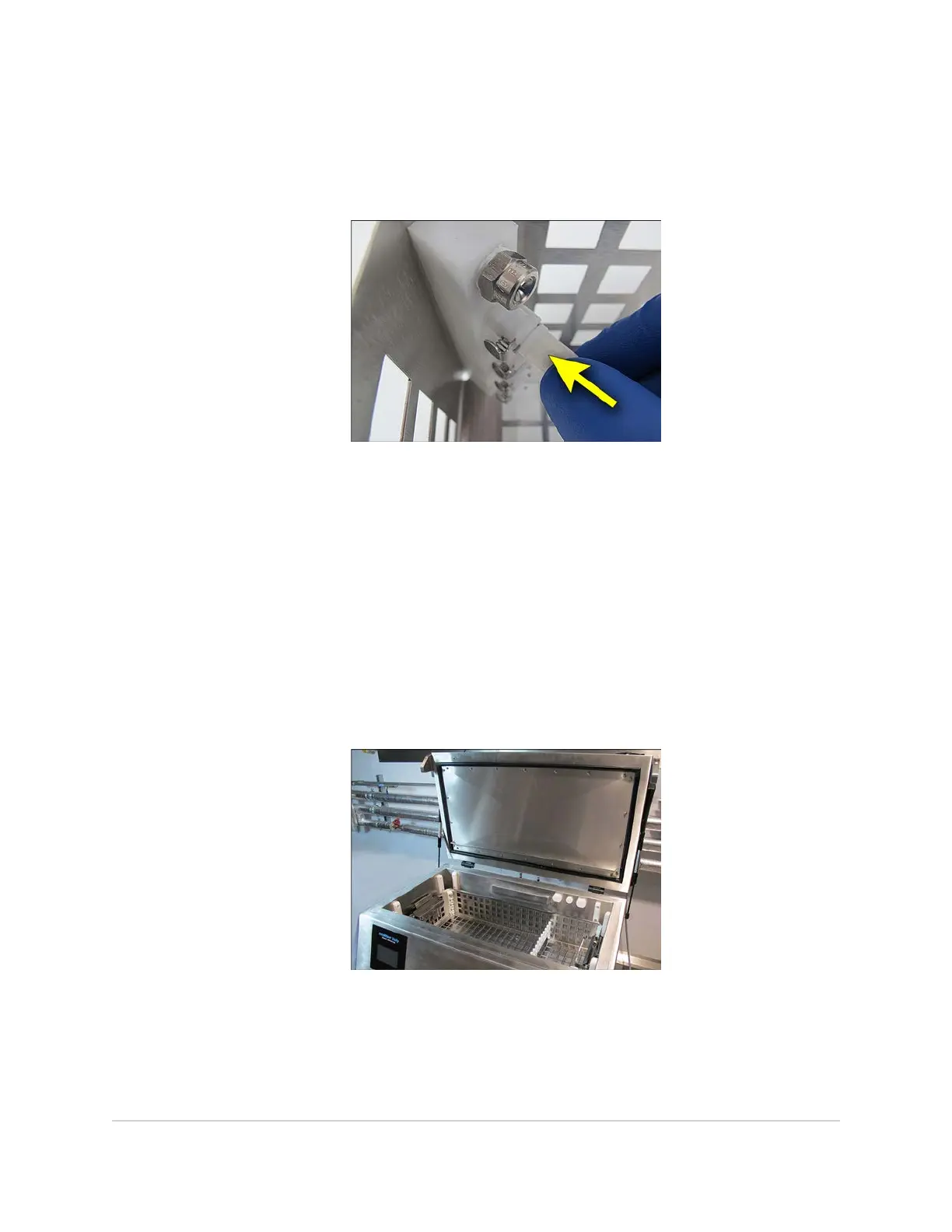

6. Attach the luer hose to an available basket flush port. Always attach the luer hose to
the top-most available flush port on a basket flush manifold. Push the connector of
the luer hose into the port until the retaining clip clicks to hold the hose in position.
Pull lightly on the hose to make sure the connection is secure.
5.7 Docking the Basket into the Tank
The basket should always be docked inside tank before attempting to start wash cycle. The
equipment will detect if basket is not present and pause operation until basket is docked in
tank.
When the tank is empty, it is recommended to inspect and clean the filter and inspect the
tank docking ports before docking the basket. When the tank is full of fluids due to the use
of the rewash feature, removing the filter is not recommended and inspection of docking
ports is not possible.
1. Open the lid of the sonic irrigator.
USING THE INSTRUMENT BASKET 45
InnoWave Unity & Unity 20 Operator Manual
