Stihl FS 94 R User Manual

FS 94 R
English
14

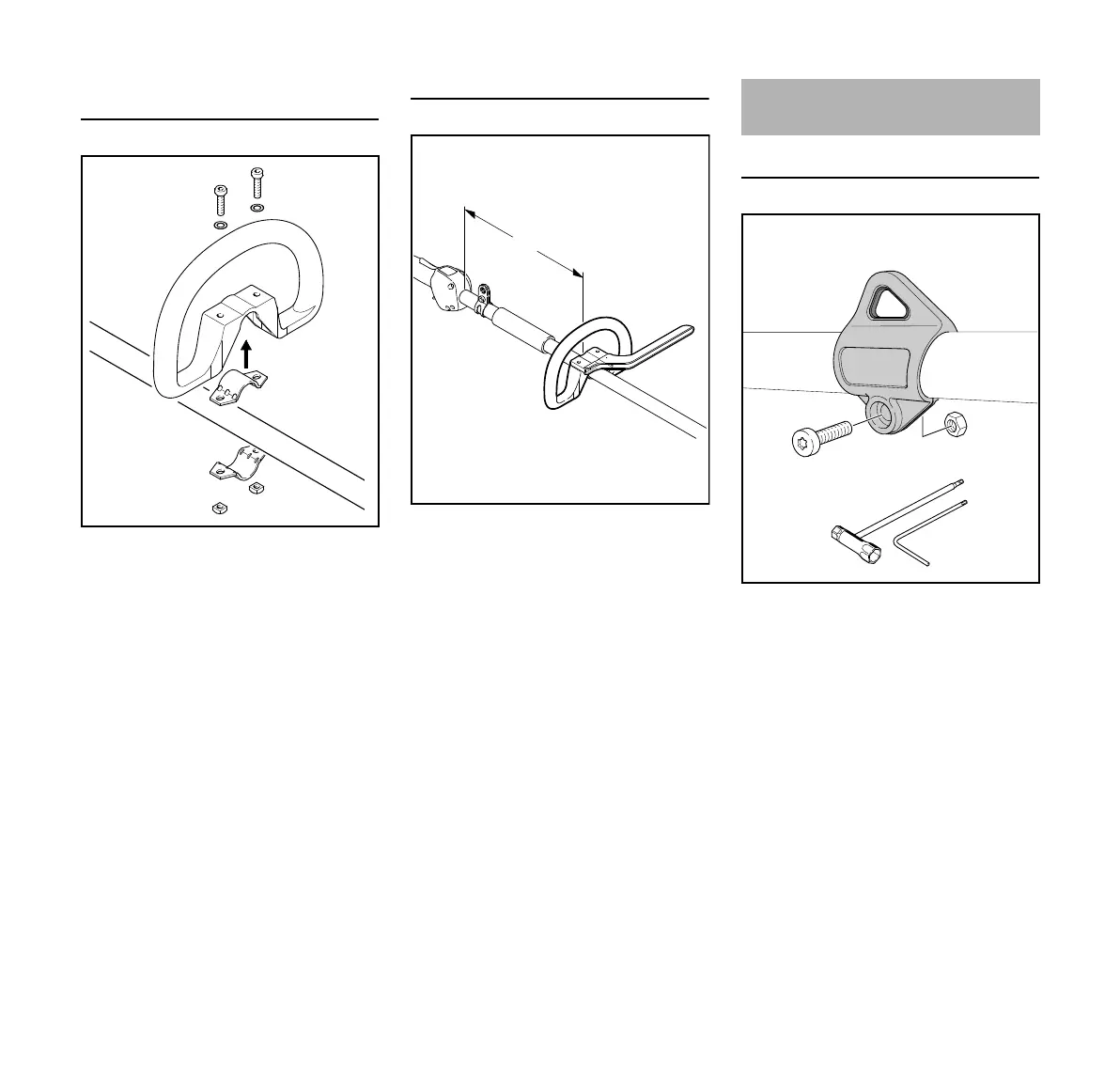

Mounting the Loop Handle without
Barrier Bar
N Insert the clamp (3) in the loop
handle (4) and position them
together on the shaft (5)
N Position the clamp (6) against the
shaft
N Line up the holes
N Fit the washer (8) on the screw (7)
and insert the screw in the hole. Fit
the square nuts (1) and screw it
down as far as it will go
N Go to "Securing the Loop Handle"
Orienting and Securing the Loop Handle
The loop handle can be adjusted to suit
the height and reach of the operator and
the application by changing
distance "A".
Recommendation: distance (A):
about 20 cm (8 in)
N Slide the loop handle to the required
position
N Line up the loop handle (4)
N Tighten down the screws until the
loop handle can no longer be
rotated on the shaft. If no barrier bar
is fitted – lock the nuts if necessary
Polymer Version
For position of carrying ring see "Main
Parts".
N Push the carrying ring (1) over the
drive tube.
N Insert the M5 nut in the hex recess
in the carrying ring.
N Fit the M5x14 screw.
N Line up the carrying ring.
N Tighten down the screw firmly.
7
8
5
4
1
6
1
3
8
7
002BA614 KN
4
002BA570 KN
A
Fitting the Carrying Ring
1
002BA529 KN
