Stihl FS 94 R User Manual

FS 94 R
English
30
arresting screen damaged. Do not
modify the muffler or spark arresting
screen.
NOTICE
According to the law or regulations in
some countries or federal states, certain
operations may only be carried out if a
properly serviced spark arresting screen
is provided.

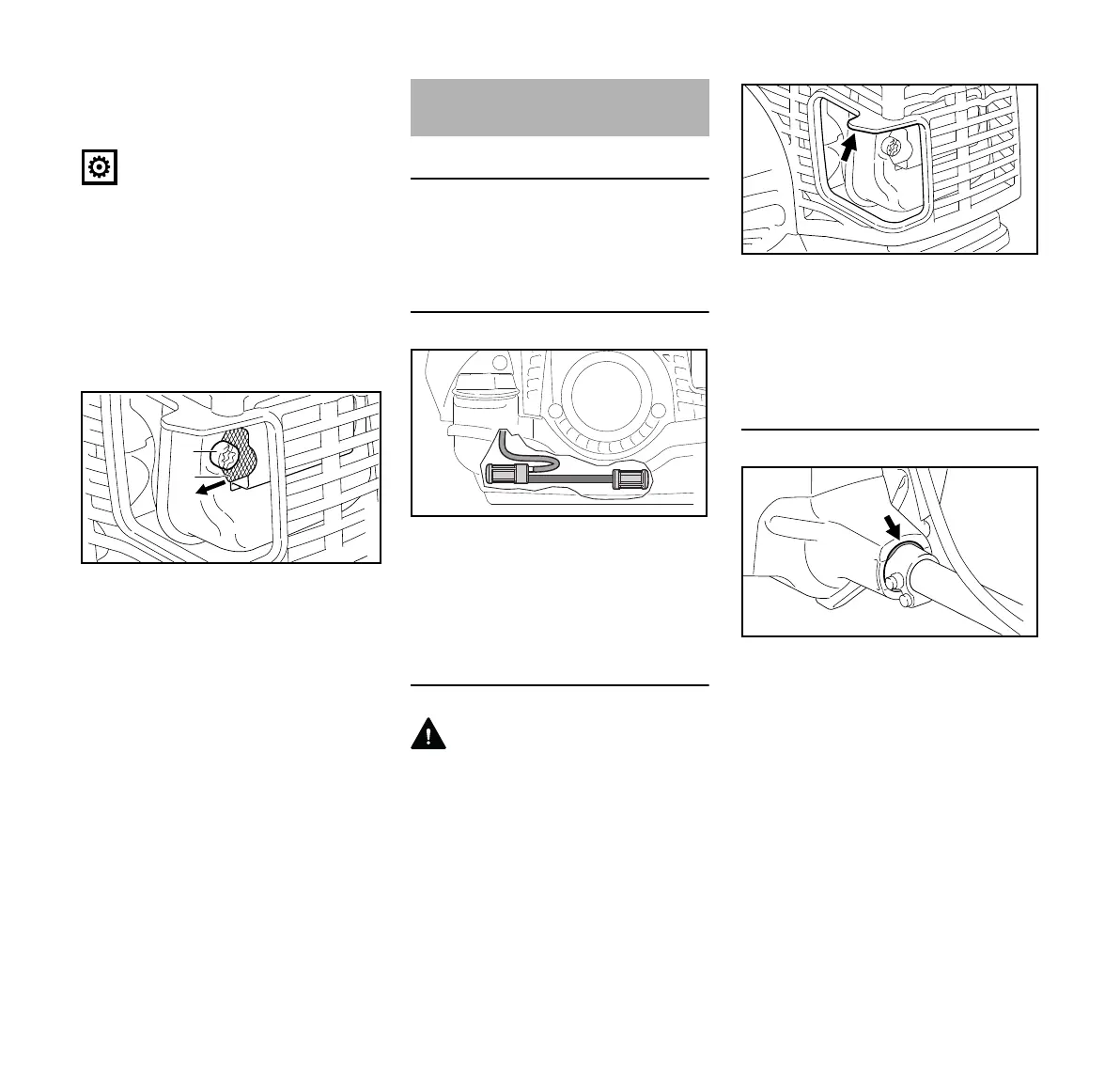

If the engine is down on power, check
the spark arresting screen in the muffler.
N Wait for the muffler to cool down
N Undo screw (1)
N Lift the spark arresting screen (2)
and pull it out.
N Clean the spark arresting screen. If
the screen is damaged or heavily
carbonized, fit a new one
N Refit the spark arresting screen
N Insert and tighten the screw
Maintenance work
STIHL recommends that all
maintenance and repairs be carried out
by STIHL dealers.
Fuel pickup body in tank
N Check the pickup bodies in the fuel
tank annually and have them
replaced when necessary
The pickup bodies should be located in
the tank in the areas shown in the figure.
Spacer, shim
WARNING
To reduce the risk of damage to persons
or objects from contact with hot parts,
never operate the machine without a
spacer, or with the spacer damaged.
The spacer (arrow) is integrally molded
to the cover.
N Check the spacer (1) for damage.
N If the spacer (1) is damaged, have
the cover replaced immediately.
Antivibration element
A vibration-absorbing rubber element is
installed between the powerhead and
the shaft. Have it checked in the event of
noticeable wear or constantly increased
vibration.
1191BA017 KN
1
2
Inspections and Maintenance
by Dealer
0208BA044 KN
1191BA018 KN
0208BA045 KN

Stihl FS 94 R Specifications

General

Engine Displacement	24.1 cc
Engine Power	0.9 kW (1.2 bhp)
Cutting Diameter	420 mm (16.5 in)
Weight	4.9 kg
Fuel Capacity	540 cc (18.3 oz)
Vibration Level	3.5 m/s²
