Stihl FS 94 R User Manual

FS 94 R
English
15

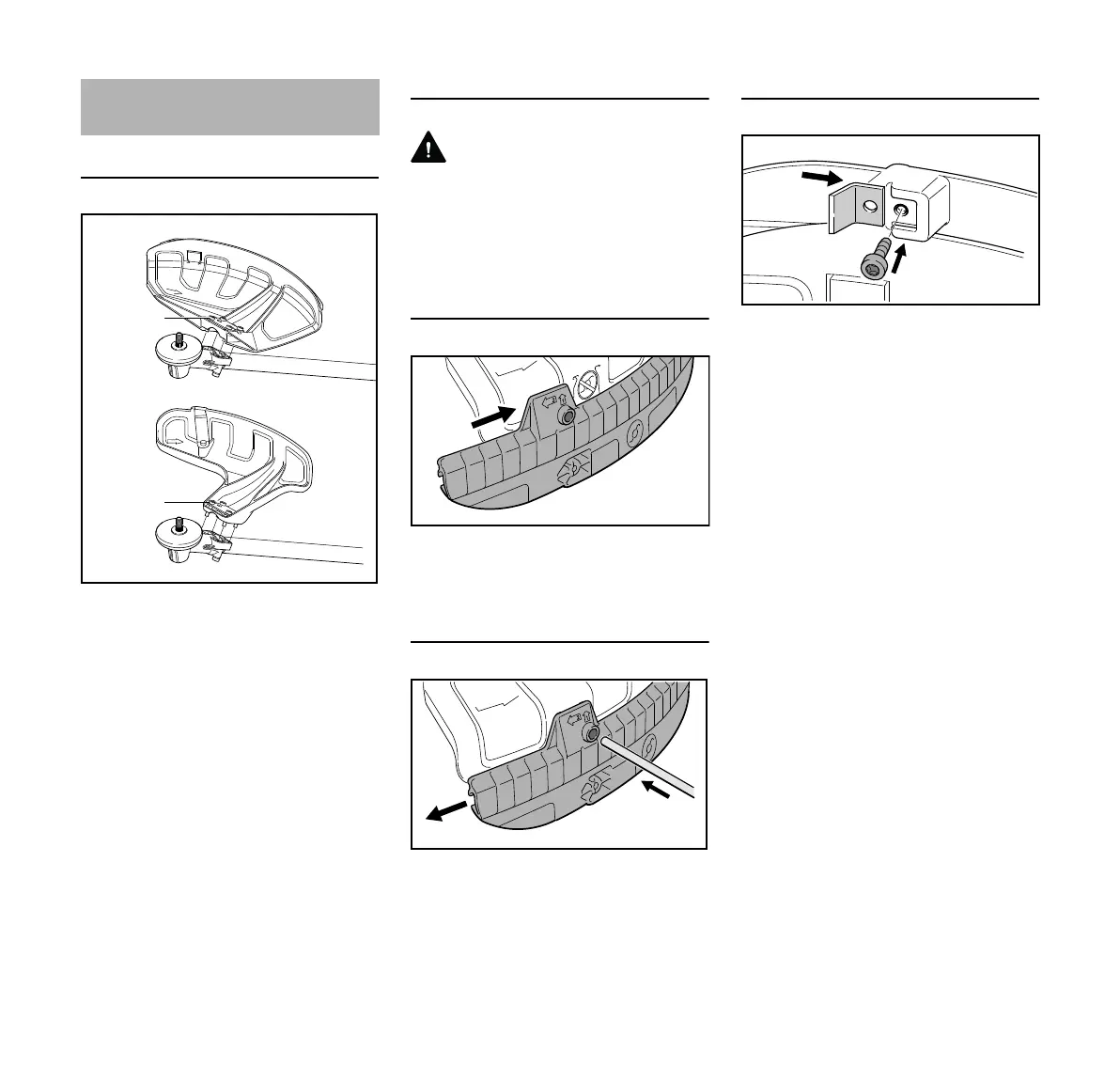

Mounting the Deflector
1 Deflector for mowing attachments
2 Deflector for mowing heads
Deflectors (1 and 2) are both mounted to
the gearbox in the same way.
N Place the deflector on the gearbox
flange.
N Insert the screws (3) and tighten
them down firmly.
Fitting the Skirt and Blade
WARNING
Risk of injury from thrown objects and
contact with the cutting attachment.
These parts must be fitted to the
deflector (1) when you use a mowing
head.
Fitting the Skirt
N Slide the lower guide slot of the skirt
onto the deflector – it must snap into
position.
Removing the Skirt
N Insert the stop pin into the hole in
the skirt and use it to push the skirt
to the left.
N Pull the skirt off the deflector.
Mounting the Blade
N Slide the line limiting blade into the
guide on the skirt.
N Insert the screw and tighten it down
firmly.
Mounting the deflector
002BA636 KN
2
1
3
3
002BA637 KN
1.
2.
002BA646 KN
002BA638 KN

Stihl FS 94 R Specifications

General

Engine Displacement	24.1 cc
Engine Power	0.9 kW (1.2 bhp)
Cutting Diameter	420 mm (16.5 in)
Weight	4.9 kg
Fuel Capacity	540 cc (18.3 oz)
Vibration Level	3.5 m/s²
