Stihl FS 94 R User Manual

FS 94 R
English
33
1 Manual Fuel Pump
2 Choke Knob
3 Carburetor Adjusting Screws
4 Fuel Filler Cap
5 Fuel Tank
6 Starter Grip
7 Muffler with Spark Arresting Screen
8 Throttle Trigger
9 Throttle Set Wheel
10 Momentary Stop Switch
11 Throttle Trigger Lockout
12 Carrying Ring
13 Cap with Spark Plug Boot
14 Air Filter Cover
15 Machine Support
16 Loop Handle
17 Barrier Bar
18 Drive Tube
19 Spacer at the Shroud
# Serial Number

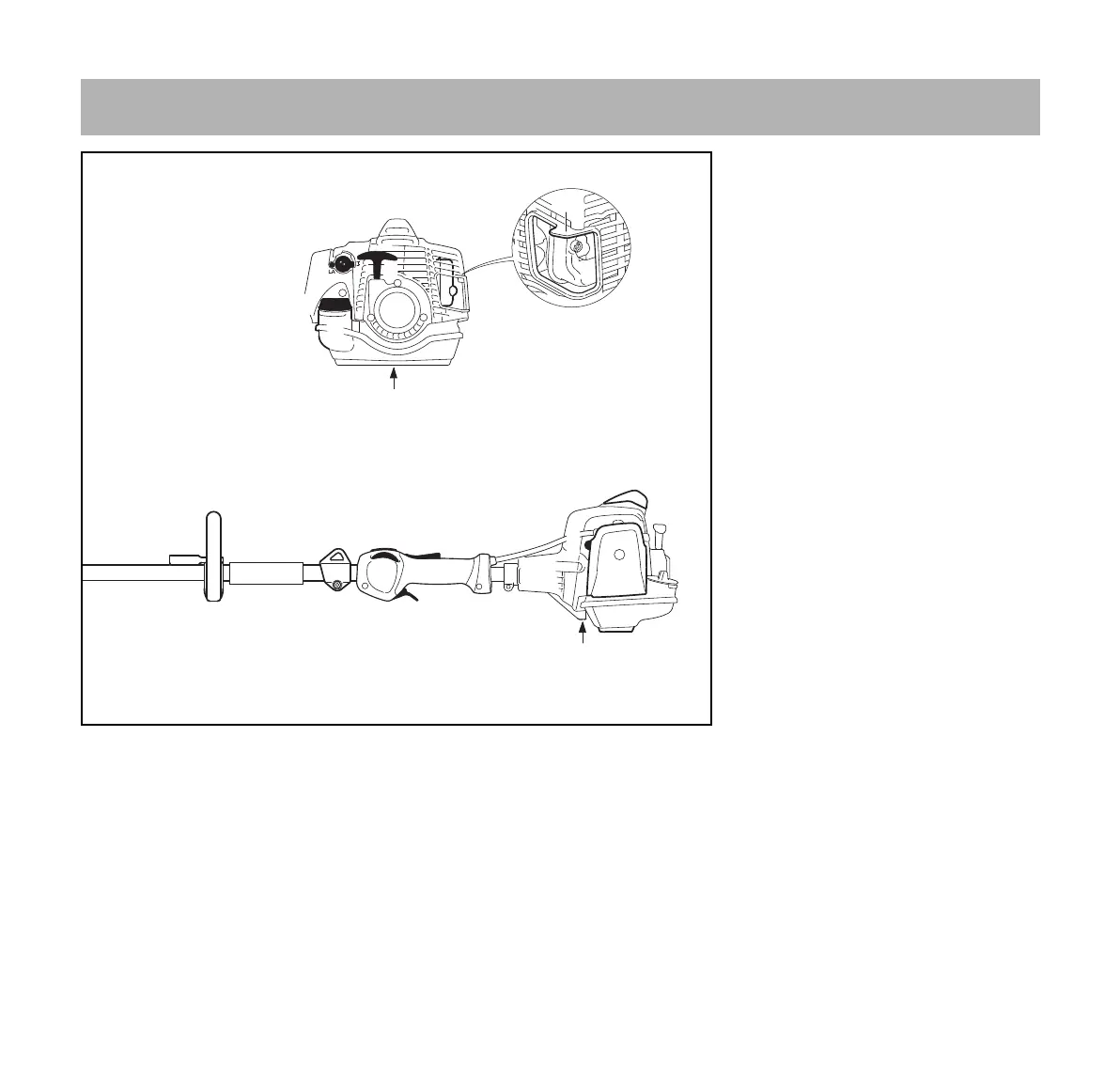

Main Parts
10
17
19
#
4
6
8
11
9
2
3
5
7
0000-GXX-5494-A0
13
14
15
#
18
16
12
1

Stihl FS 94 R Specifications

General

Engine Displacement	24.1 cc
Engine Power	0.9 kW (1.2 bhp)
Cutting Diameter	420 mm (16.5 in)
Weight	4.9 kg
Fuel Capacity	540 cc (18.3 oz)
Vibration Level	3.5 m/s²
