Stihl FS 94 R User Manual

FS 94 R
English
21

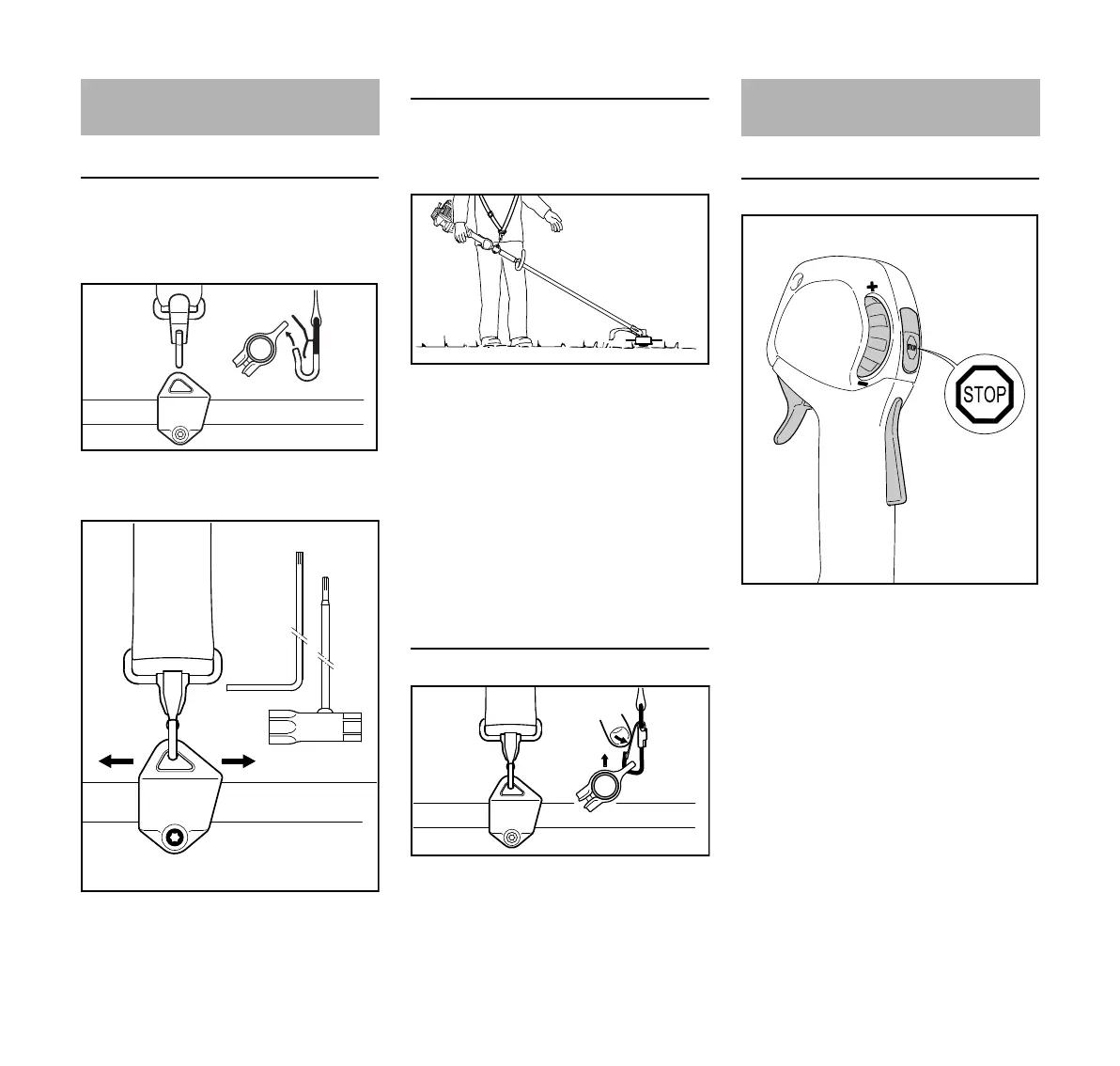

Attaching Machine to Harness
The type and style of the harness or
shoulder strap and carabiner depend on
the market.
N Attach the carabiner (1) to the
carrying ring (2) on the drive tube.
N Loosen the screw (3).
Balancing the Machine
N Adjust the carrying ring.
N Tighten the screw moderately.
N Let go of the brushcutter and check
to see how it is balance – the cutting
attachment should just touch the
ground in the normal working
position.
N Move the carrying ring as required.
When the correct balanced position has
been reached:
N Tighten down the screw on the
carrying ring firmly.
Disconnecting Machine from Harness
N Press down the bar on the
carabiner (1) and pull the carrying
ring (2) out of the carabiner.
Controls, parts
1 Throttle lever lock
2 Throttle trigger
3 Stop switch – with settings for Run
and Stop. To switch off the ignition
system, the stop switch (…) must
be pressed – see "Function of the
stop switch and the ignition"
4 Thumb wheel – to limit the throttle
path – see "Function of thumb
wheel"
Function of the stop switch and the
ignition
If the stop switch is actuated, the ignition
is switched off and the engine is
switched off. When released, the stop
switch automatically returns to the Run
Balancing the Machine
1
2
1
2
0000-GXX 1056-A0
0000-GXX-1321-A0
3
0000-GXX-1289-A0
1
1
0000-GXX-1290-A0
2
2
Starting / Stopping the
Engine
0208BA066 KN
2
1
4
3

Stihl FS 94 R Specifications

General

Engine Displacement	24.1 cc
Engine Power	0.9 kW (1.2 bhp)
Cutting Diameter	420 mm (16.5 in)
Weight	4.9 kg
Fuel Capacity	540 cc (18.3 oz)
Vibration Level	3.5 m/s²
