position: After the engine has stopped,
the ignition is automatically switched on
again in the Run position – the engine is
ready for starting and can be started.

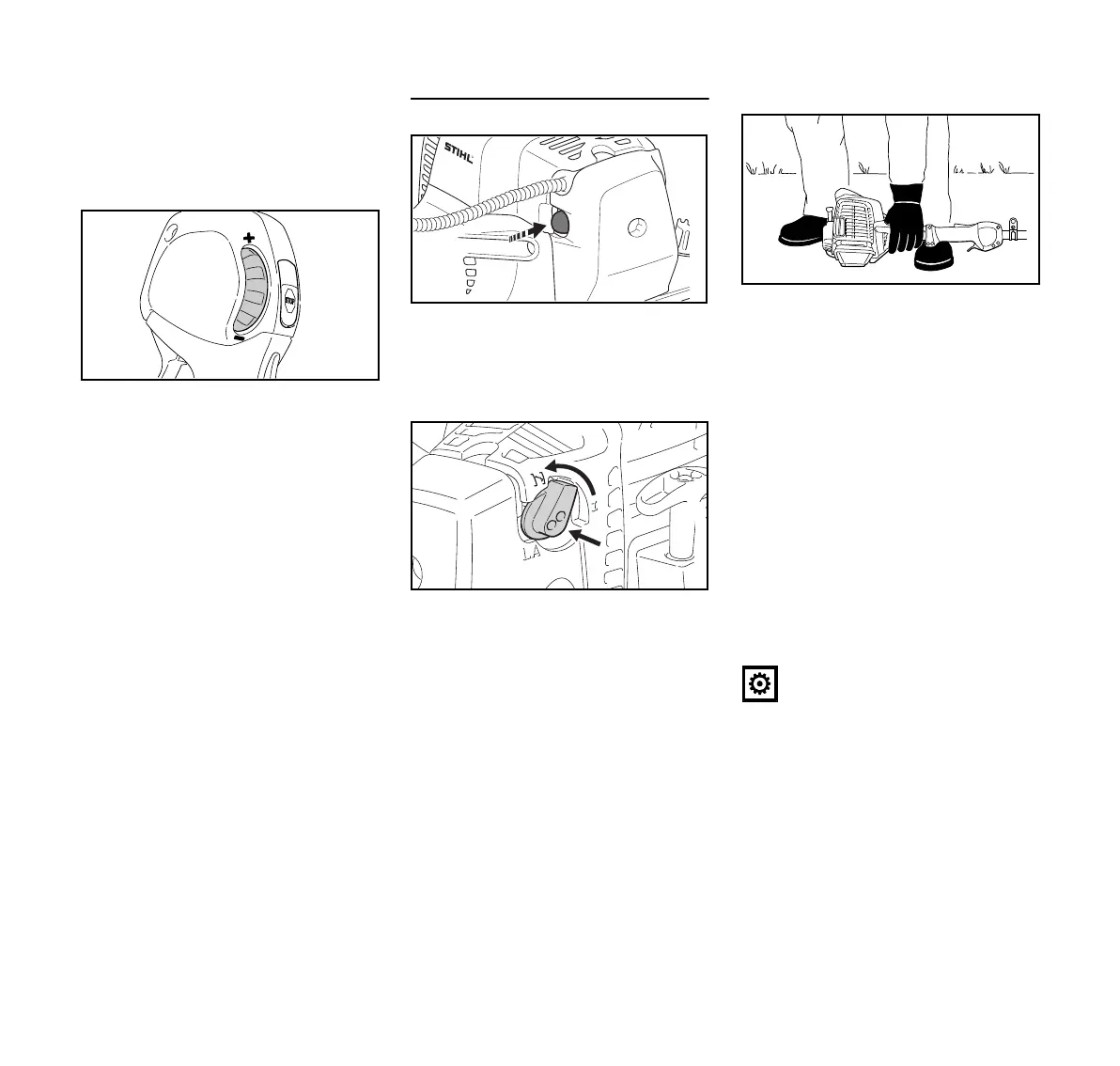

Function of thumb wheel
The thumb wheel (4) is used to set the
throttle path infinitely between idling and
full throttle and therefore also the engine
speed range:
– Turn thumb wheel (4) in – direction:
the throttle path is shorter and the
set maximum engine speed is lower
– Turn thumb wheel (4) in + direction:
the throttle path is longer and the set
maximum engine speed is higher
– Press the throttle trigger forcefully to
apply full throttle even if limitation
set– the set limitation is maintained–
when the throttle trigger is released,
it is back in the preset range.
Starting the engine
N Press the fuel pump bulb (5) at least
5 times - even when bulb is filled
with fuel
Cold engine (cold start)
N Turn the knob for warm start (6) and
then press to g
Also use this setting if the engine has
been running but is still cold.
– Turn thumb wheel as far as possible
in the direction+
Hot engine (hot start)
N The knob for warm start (6) remains
in position F
Actuating
N Place the unit on the ground in a
secure position It should rest on the
support on the engine and the
cutting attachment guard.
N (if present): Remove the transport
guard on the cutting attachment
The cutting attachment must not touch
the ground or any other objects – risk of
accident!
N safe standing - possibilities:
standing, bent or kneeling
N Press the machine firmly against the
ground with the left hand – do not
touch the throttle trigger, throttle
trigger lockout or stop switch while
doing so
NOTICE
Do not stand or kneel on the shaft!
0208BA067 KN
4
5
0000-GXX-5224-A0
2.
1.
6
0000-GXX-5475-A0
1191BA014 KN
