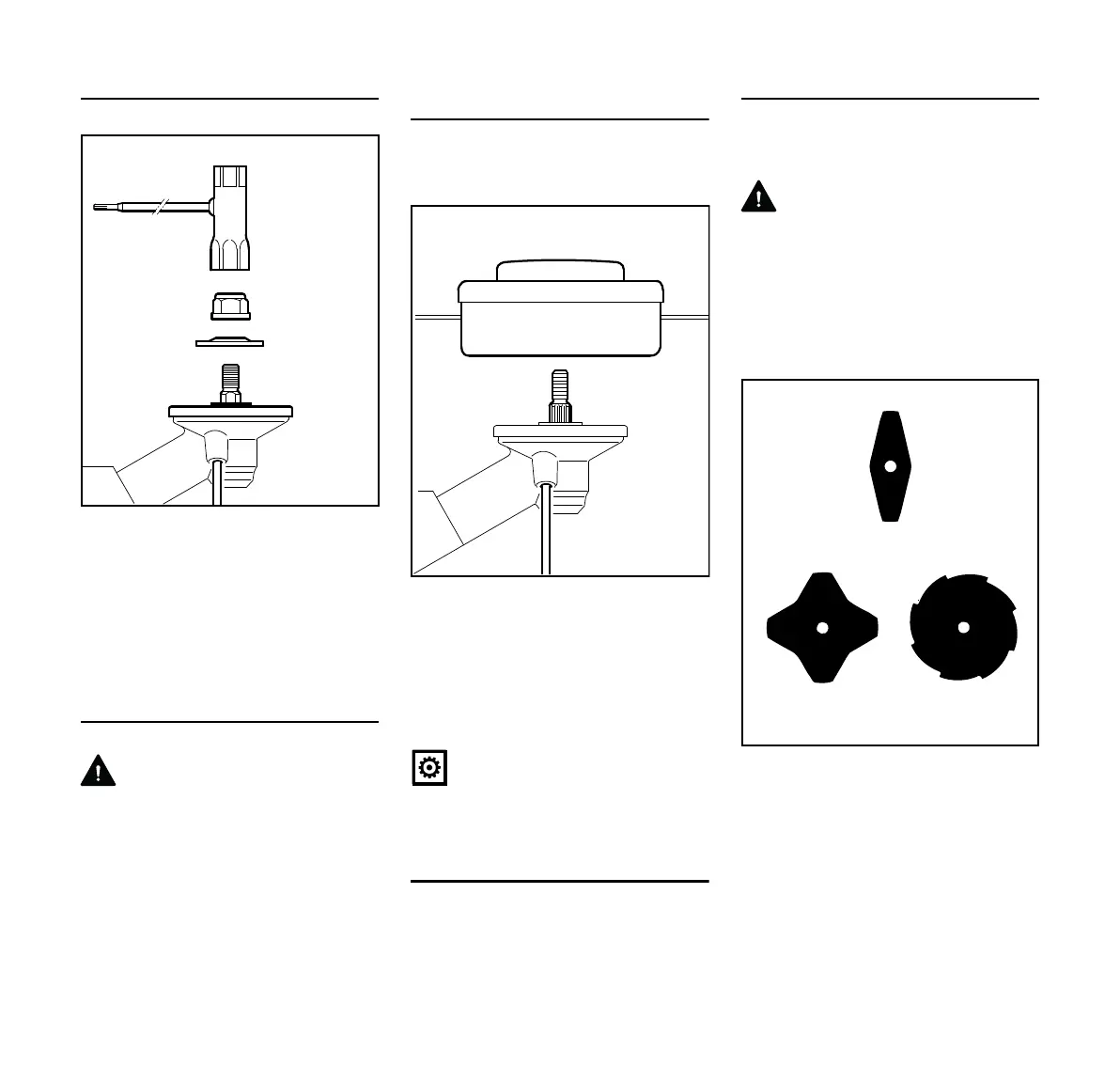

Removing the Mounting Hardware
N Block the shaft.
N Use the combination wrench (1) to
loosen and remove the nut (2)
clockwise (left-hand thread).
N Take the thrust washer (3) off the
shaft (4). Do not remove the thrust
plate (5).
Mounting the Cutting Attachment
WARNING
Use a deflector that matches the cutting
attachment – see "Mounting the
Deflector".
Fitting the mowing head with screw
mounting
Keep the supplement sheet for the
mowing head in a safe place.
N Fit the thrust plate
N Turn the mowing head
anticlockwise on the shaft (1) as far
as it will go
N Retain the shaft
N Tighten the mowing head
NOTICE
Remove the tool that was used to block
the shaft.
Removing the Mowing Head
N Retain the shaft
N Turn the mowing head clockwise
Mounting Metal Cutting Attachment
Keep the leaflet and packaging of the
metal cutting tool in a safe place.
WARNING
Wear protective gloves to reduce the
risk of direct contact with the sharp
cutting edges.
Mount only metal cutting attachments.
Check direction of rotation of cutting
attachment
The cutting edges of the grass cutting
blades (1) and (2) may point in either
direction – these cutting attachments
must be turned over regularly to reduce
one-sided wear.
Cutting edges of grass cutting blade (3)
must point clockwise.
3
4
2
271BA057 KN
1
5
1
002BA385 KN
1
3
2
681BA050 KN

Stihl FS 94 R Specifications

General

Engine Displacement	24.1 cc
Engine Power	0.9 kW (1.2 bhp)
Cutting Diameter	420 mm (16.5 in)
Weight	4.9 kg
Fuel Capacity	540 cc (18.3 oz)
Vibration Level	3.5 m/s²
