62 GS 461

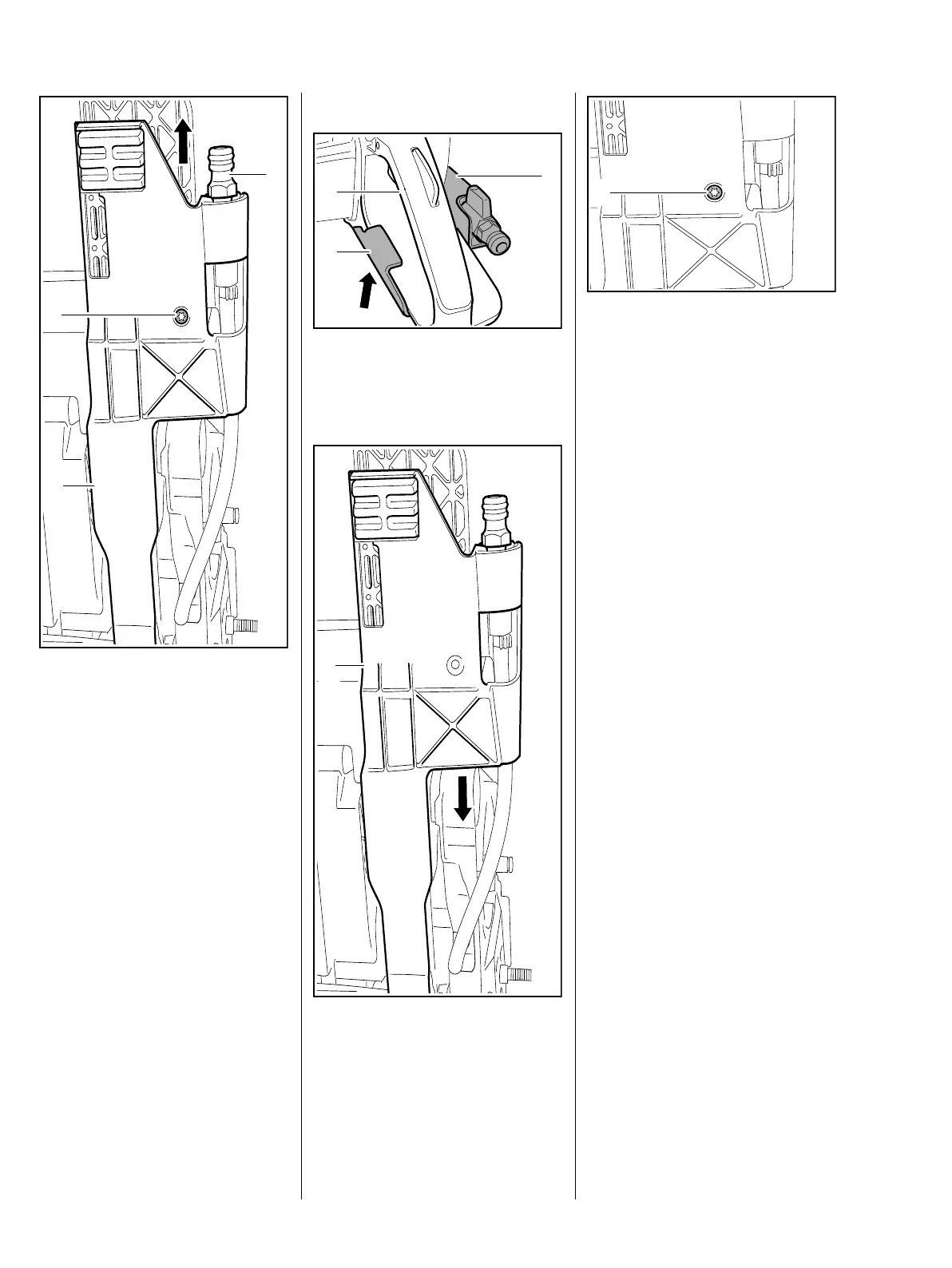

: Unscrew screw (1), lift
support (2) in the area of the
shut-off cock (3) and push out to
the rear
– Examine the support, replace if
necessary
– Reconfigure shut-off cock,
rubber buffer and water hose if
necessary
2411RA107 TG
3
1
2
Installation
: Position support (1) with the
tab (2) on the base of the rear
handle (3) and fit
: Push support (1) as far as it will
go towards the guard, then press
in the direction of the clutch side
until the lugs engage
2411RA108 TG
1
2
3
1
2411RA109 TG
: Screw in the screw (1) and
tighten
– Fit water hose, b 8.4.1
– Fit support on handlebar,
b 8.1.2
2411RA110 TG
1
