Stihl MS 500i

MS 500i 9
9.1 Tools, Servicing Aids
– Socket, T27x125 – 0812 542 2104 or equivalent
– Torque wrench – 5910 890 0302 or equivalent
– Screwdriver, T27x200 – 5910 890 2415 or equivalent

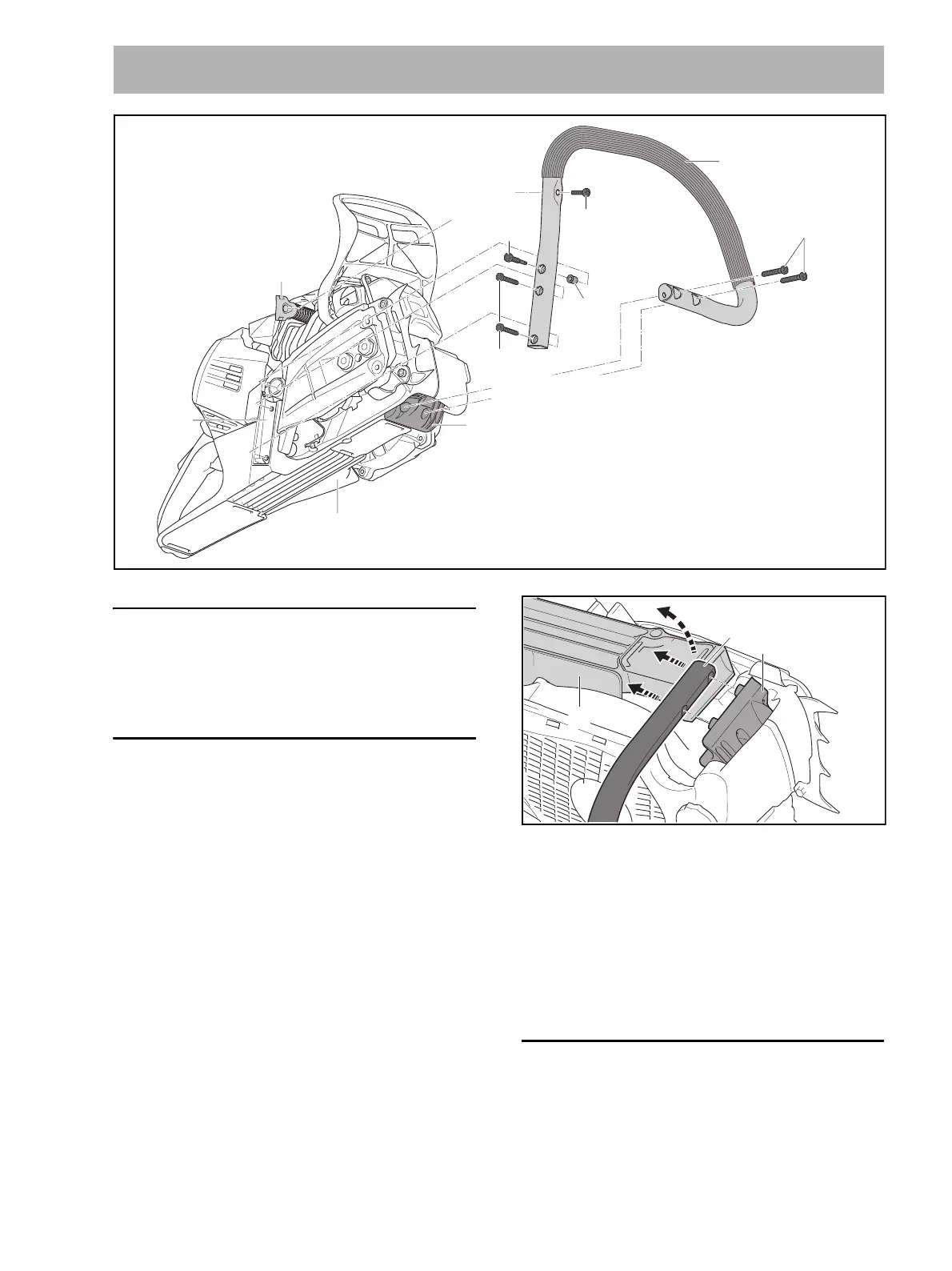

9.2 Removing the Handlebar
N Preparations, @ 3.1.
N Take out the screws (5).
N Take out the screw (3).
N Take out the screws (1).
N Remove the handlebar (2) from the guide (7).
N Ease the handle housing (8) away from the
crankcase (arrow) and hold it there.
N Pull the handlebar (2) off the screw bosses on
handlebar mount (9).
N Remove the handlebar (2) forwards, over the hand
guard.
N Pull off the bushing (10).
N Take out the screw (4).
9.3 Installing the Handlebar
N Insert and tighten down the screw (4).
N Push bushing (10) onto the screw (4) so that it snaps
into place.
N Fit the handlebar (2) over the hand guard from the
front.
9 Handle
2
9
7
8
6
1
P6x32.5
(6 Nm /
53 lbf. in.)
3 M5x20
(6 Nm / 53 lbf. in.)
10
M6x26
(8 Nm /
71 lbf. in.)
4
5
P6x32.5
(6 Nm / 53 lbf. in.)
0000-GXX-5573-A0
9
2
8
0000-GXX-3541-A0
