5.1 Tools, Servicing Aids
– Socket, T27x125 – 0812 542 2104 or equivalent
– Torque wrench – 5910 890 0302 or equivalent
– Screwdriver, T27x200 – 5910 890 2415 or equivalent
– Open-end wrench, 8 mm
– Loctite 242 (medium-strength threadlocking
adhesive) – 0786 111 2101
5.2 Removing the Chain Catcher
N Preparations, @ 3.1.
N Remove the chain sprocket cover.
N Take out the screw (2).
N Remove the chain catcher (1).
5.3 Installing the Chain Catcher
N Fit the chain catcher (1).
N If the original screw (4) is re-used: Coat thread of
screw (2) with Loctite 242.
N Insert and tighten down the screw (2).
N Fit the chain sprocket cover.
5.4 Removing the Spiked Bumper
N Preparations, @ 3.1.
N Remove the chain catcher, @ 5.2.
N Hold nut (5) steady and take out the screw (3).
N Remove the spiked bumper (4).
5.5 Installing the Spiked Bumper
N Place the spiked bumper (4) in position.
N Insert the screw (3).
N Hold the nut (5) steady and tighten down the
screw (5).
N Install the chain catcher, @ 5.3.
N Fit the chain sprocket cover.

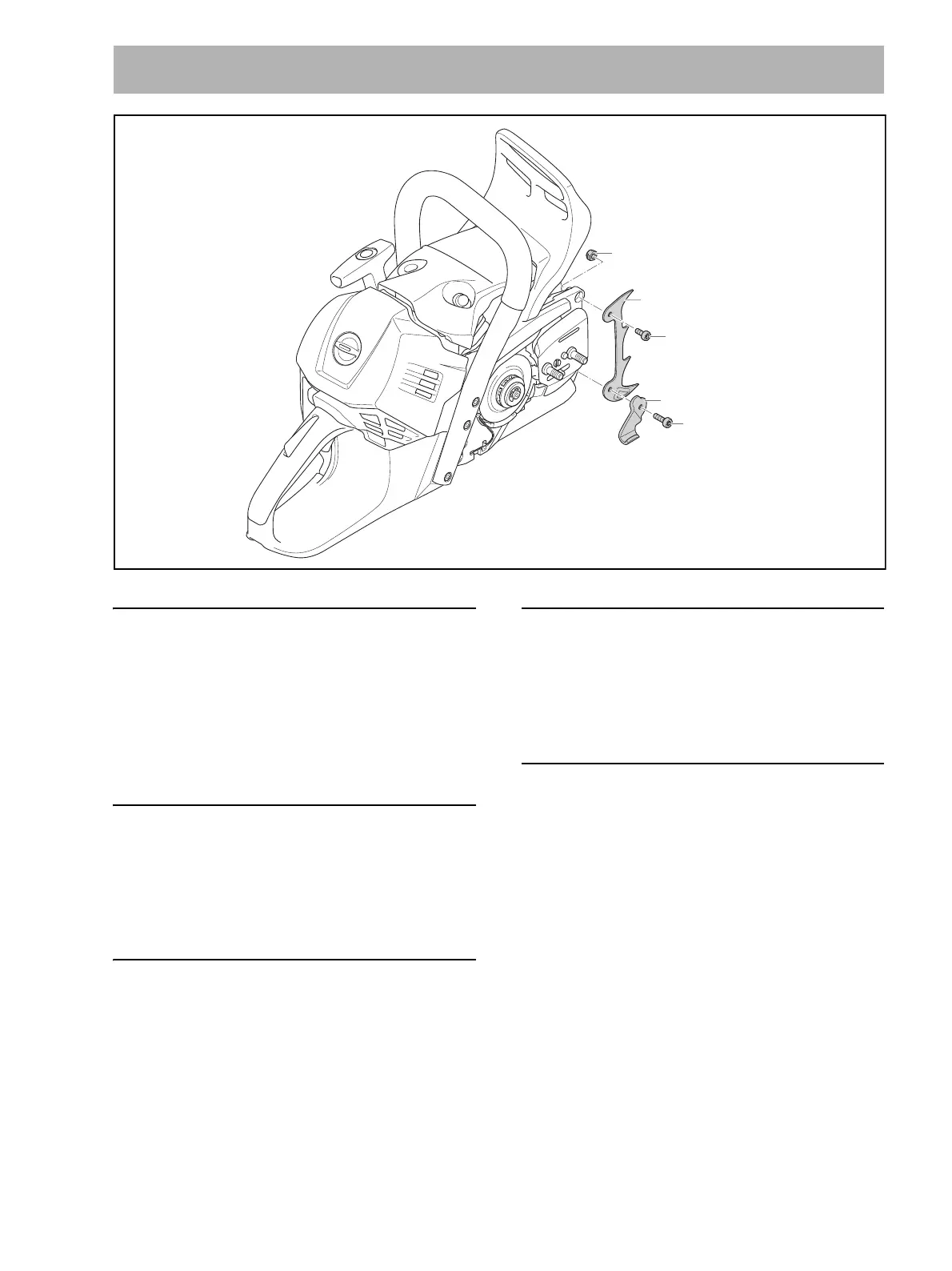

5 Spiked Bumper, Chain Catcher
4
1
3 M5x12 (8 Nm / 71 lbf. in.)
2 M5x16 (8 Nm / 71 lbf. in.)
5 M5
