MS 500i 29

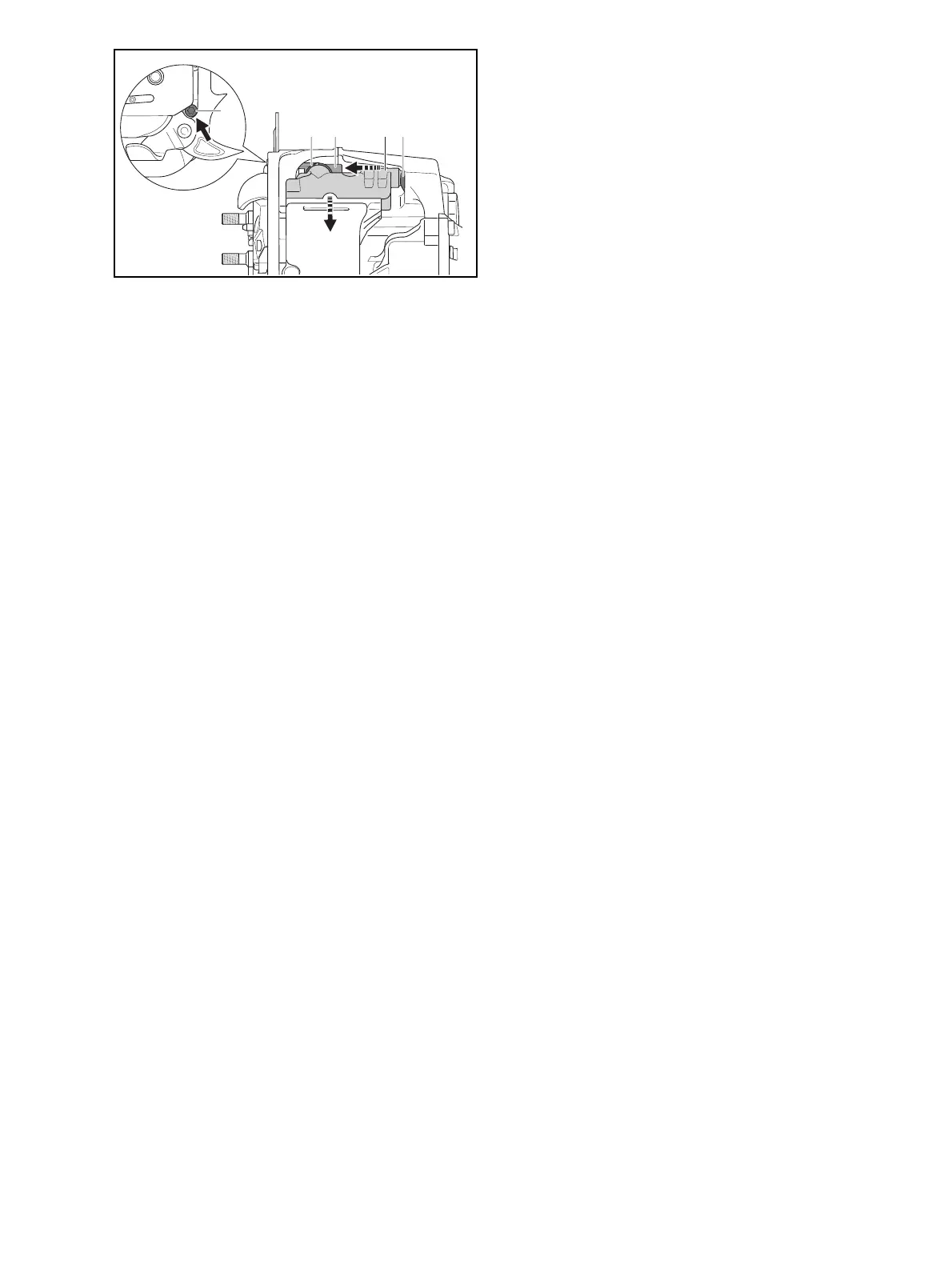

N Use punch-down tool 5910 890 4000 to push the
bearing plug (3) into it seat in the crankcase.
N Insert and tighten down the screw (2).
N Install the handlebar, @ 9.3.
N Fit the chain sprocket cover.
N Place the AV spring (8) in position.
N If the original screw (9) is re-used: Coat thread of
screw (9) with Loctite 242.
N Insert and tighten down the screw (9).
N Insert and tighten down the screw (7).
N Mount the shroud.
N Fit the filter cover.
4 3 5 6
2
0000-GXX-5603-A0
