6 | What you should know before commissioning STOBER
14
02/2020 | ID 443025.06
6 What you should know before commissioning
The following chapters provide a quick introduction to the structure of the program interface and accompanying window
designations as well as relevant information about parameters and generally saving your project configuration.
6.1 Program interfaces
The following chapters include an overview of the program interfaces for the described software components.
6.1.1 DS6: Structure of the program interface
The DriveControlSuite commissioning software (DS6) offers a graphic interface that you can use to project, parameterize
and start up your axis model quickly and efficiently.

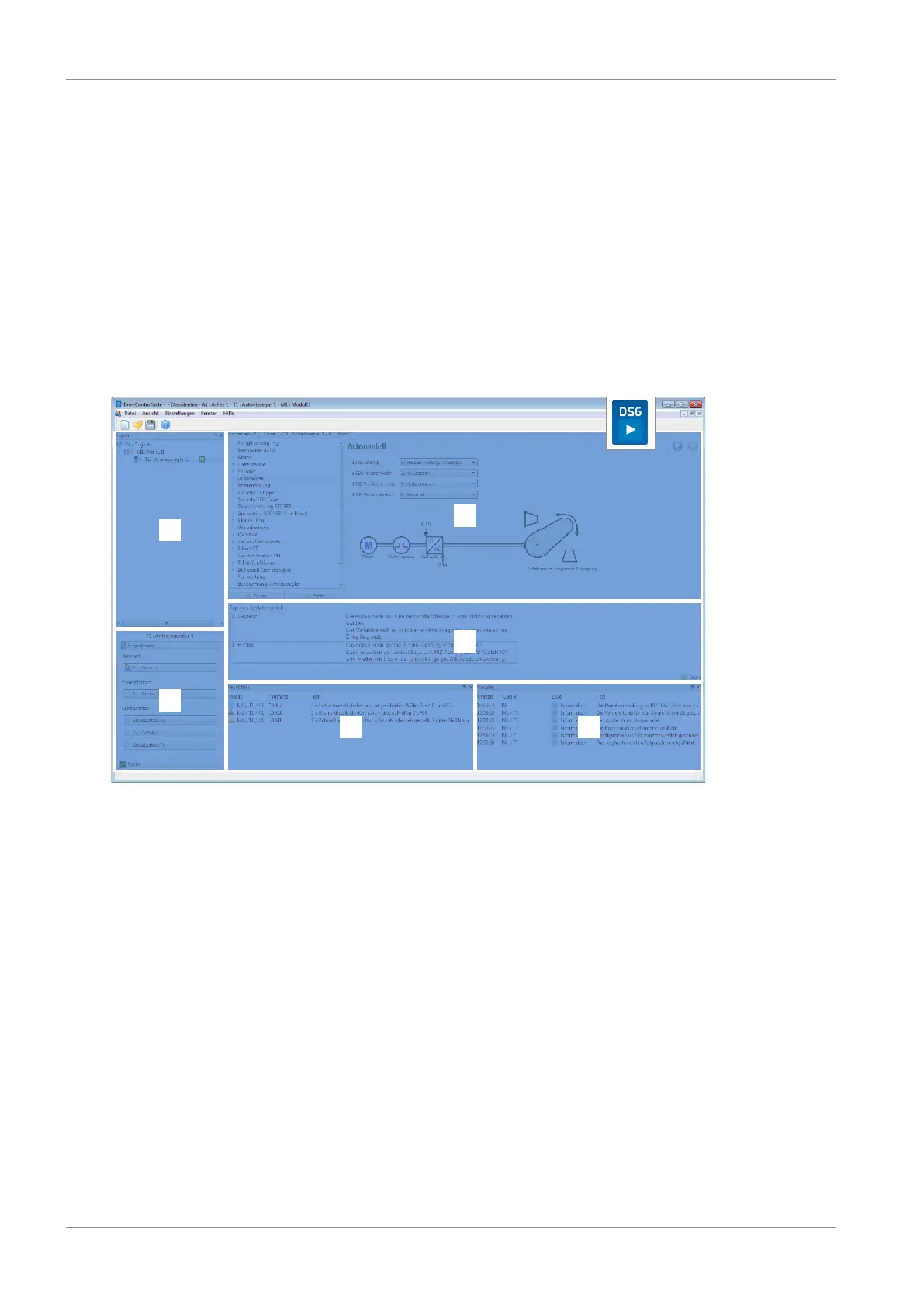

Fig.2: DS6 – Program interface
1 Project tree
2 Project menu
3 Workspace
4 Parameter description
5 Parameter check
6 Messages
6.1.1.1 Individualized workspace
The project tree (1) and project menu (2) are connected and, like the parameter check and messages (5, 6), can also be
docked at the left, right or bottom edge of the screen. This program window can also be displayed or hidden using the View
menu.
The workspace (3) and parameter description (4) are also connected to each other and always positioned in the middle.
Both areas can be minimized or maximized.
