STOBER
6 | What you should know before commissioning
02/2020 | ID 443025.06
17
6.
1.3
T
winCA
T 3: S
tructure of
the pr
ogram interface
In TwinCAT 3, you operate your EtherCAT system using TwinCAT XAE. The following graphic shows the interface elements
relevant to this documentation.
1
2
3
4
5
6

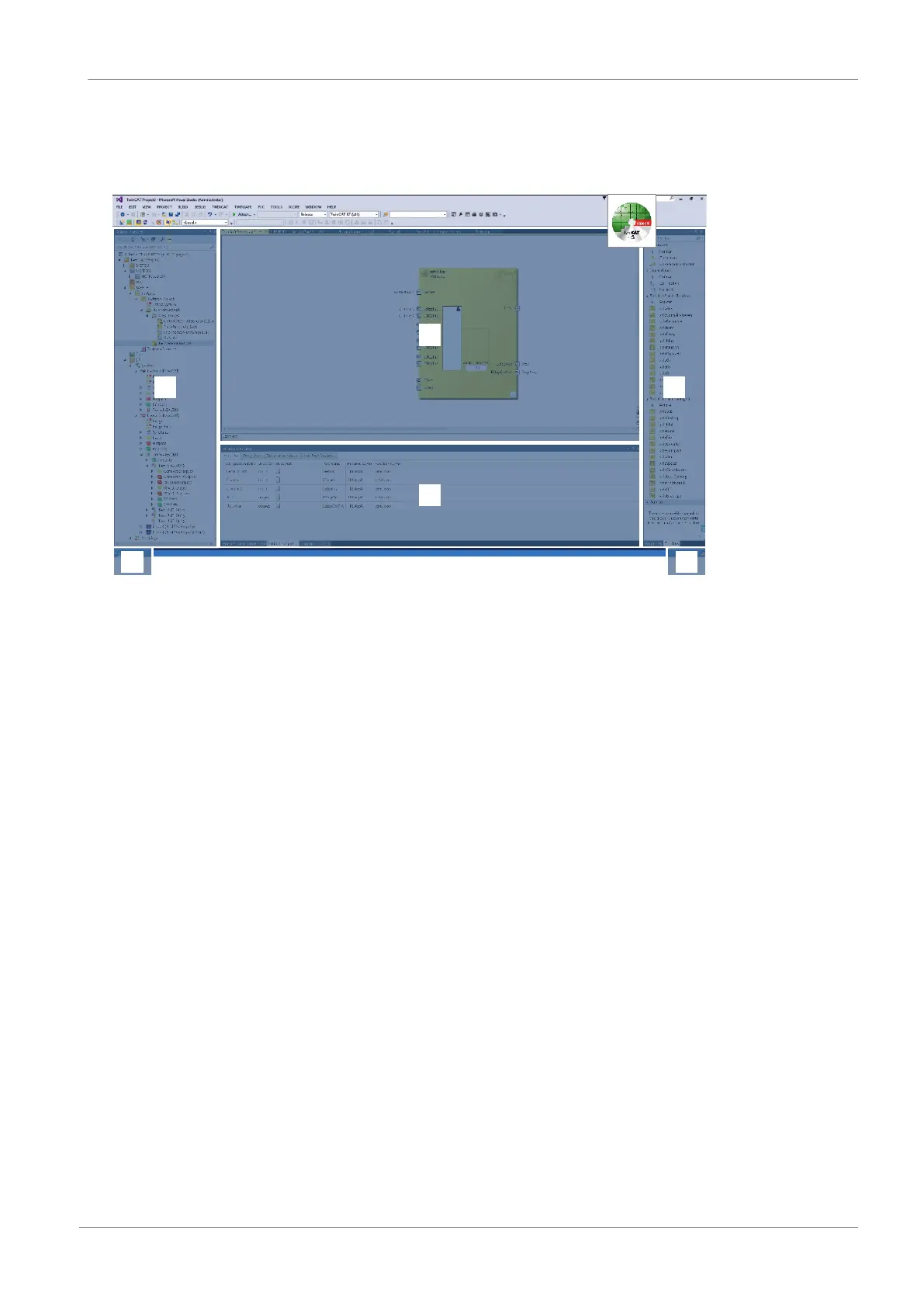

Fig.5: TwinCAT 3 (TwinCAT XAE) – program interface
1
Solution explorer
2
Main window
3
Message view
4
Toolbox
5
Event display
6
Status display (configuration, run, connection setup/timeout mode)
