8 Monitoring and diagnostics
For monitoring purposes and in the event of a fault, the various monitoring and diagnostic options described below are
available.
8.1 Connection monitoring
In order to be able to detect a communication failure, activate the watchdog function. This means that you monitor the
arrival of cyclical process data by defining a PDO timeout in A258 EtherCAT PDO-Timeout (see the chapter Parameterizing
general EtherCAT settings [}24]).
In the Operational operating state, an activated watchdog triggers fault 52: Communication with cause 6: EtherCAT PDO off
if a new PDO is not received within the specified timeout.
Monitoring is not triggered if the EtherCAT master regularly ends communication by leaving the operational state.
8.2 LED display
STOBER drive controllers feature diagnostic LEDs that visualize the state of fieldbus communication and the states of the
physical connection.
8.2.1 EtherCAT state
There are 2 LEDs on the front of the drive controller that provide information about the connection between EtherCAT
master and slave and about the state of the data exchange. This information can also be read out in parameter A255
EtherCAT Device State. If the drive controller includes the SY6 safety module, the STO and SS1 safety functions are activated
via EtherCAT FSoE. In this case, an additional LED on the front of the device provides information about the FSoE state.

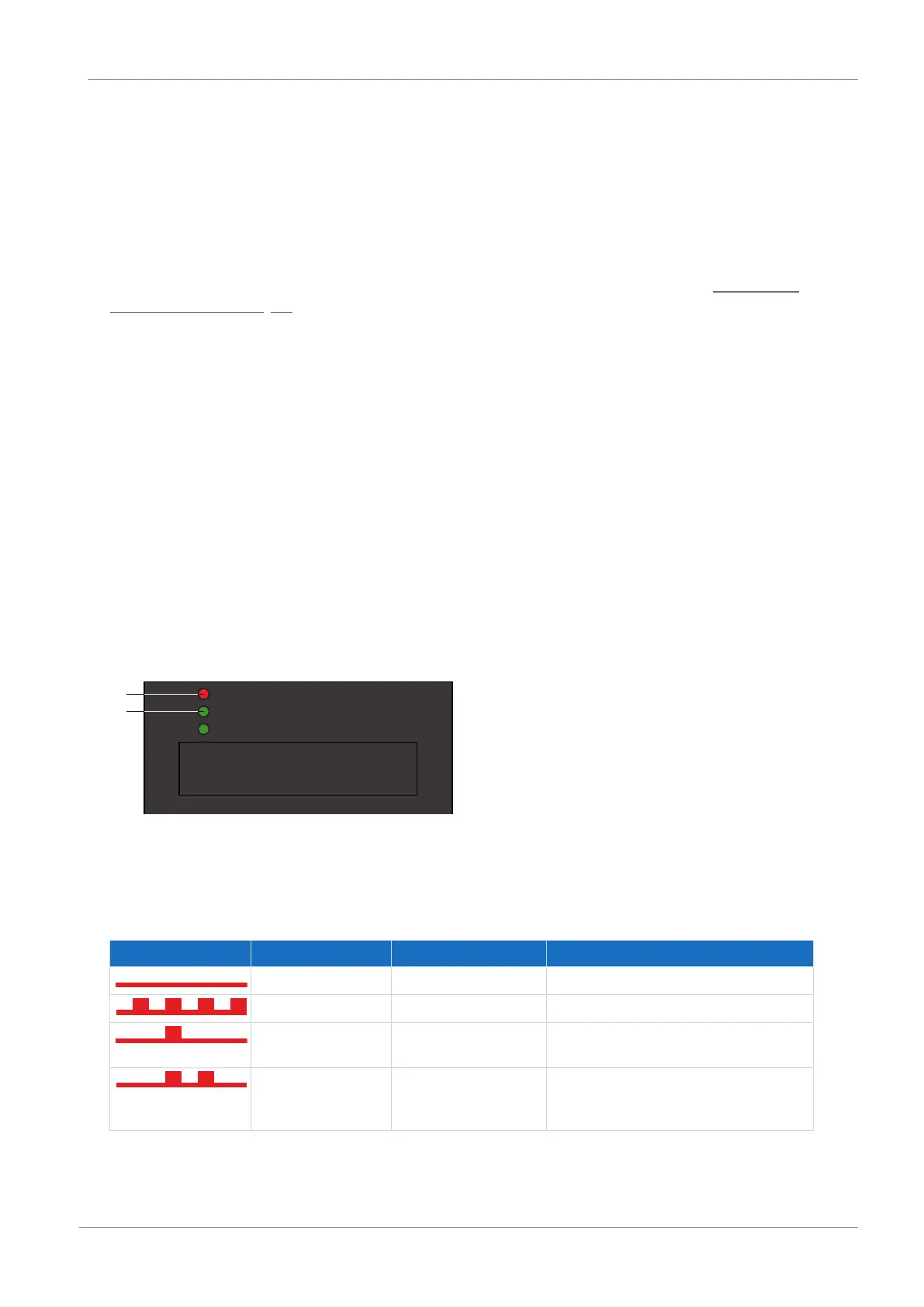

Fig.6: LEDs for the EtherCAT state
1 Red: Error
2 Green: Run
Red LED Conduct Error Description
Off No Error No error
Flashing Invalid Configuration Invalid configuration
Single flash Unsolicited State Change The EtherCAT slave changed operating states
by itself
2x flashing Application Watchdog
Timeout
The EtherCAT slave did not receive new PDO
data during the configured watchdog
timeout
Tab. 4: Meaning of the red LED (error)
