6 | What you should know before commissioning
STOBER
16
02/2020 | ID 443025.06
6.
1.2
AS6: Structure o
f
the program interface
The AutomationControlSuite (AS6) development environment provides a graphic interface which you can use to organize
your automation projects, configure associated networks like EtherCAT, create or debug program codes or parameterize
drives.
1
4
5
6
3
2

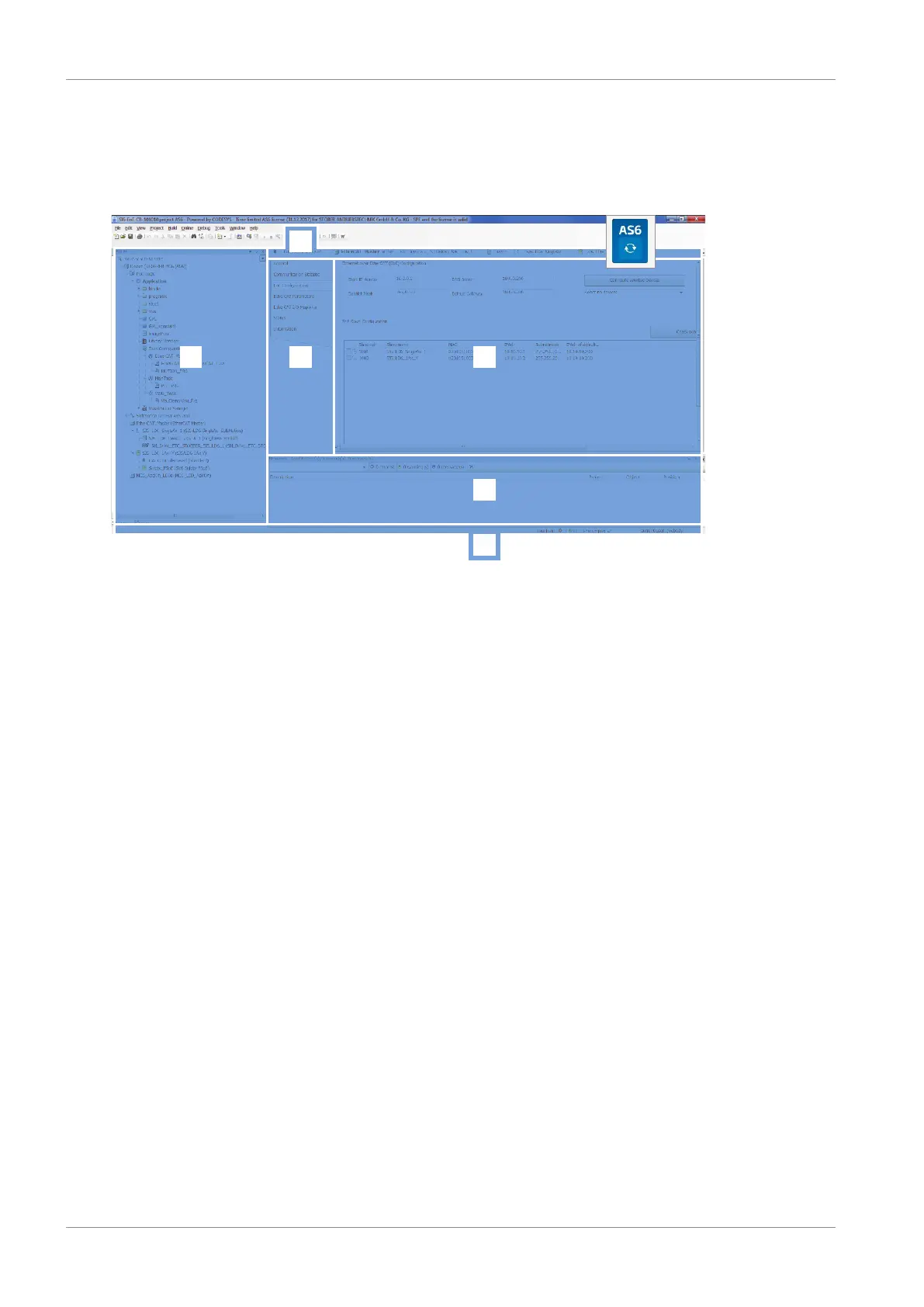

Fig.4: AS6 – Program interface
1
Device tree
2
Horizontal tabs
3
Vertical tabs
4
Editor window
5
Message window
6
Status bar
15
17
