Stober SC6 Series Operating Manual

9 | Looking for more information about EtherCAT? STOBER
72
02/2020 | ID 443025.06
Changing the cycle sequence
For cycle times < 1ms, change the cycle sequence of the application to RxPDO, TxPDO, graphical programming (A149 = 1). The following example shows a synchronization with a changed
cycle sequence. The frame jitter (controller) and application jitter (drive controller) are separated and synchronization is stable.
OI
1
3
2
I
OI
1
3
2
I
OI
1
2
O
O
Beckhoff CX2030
Frame
SYNC Shift Time
Shift Time User Defined
Data ready
SYNC 0
PLL phase offset
AR1
Cycle time Cycle time
NC+PLC NC+PLC NC+PLC
APPAPP
= Jitter
Cycle time

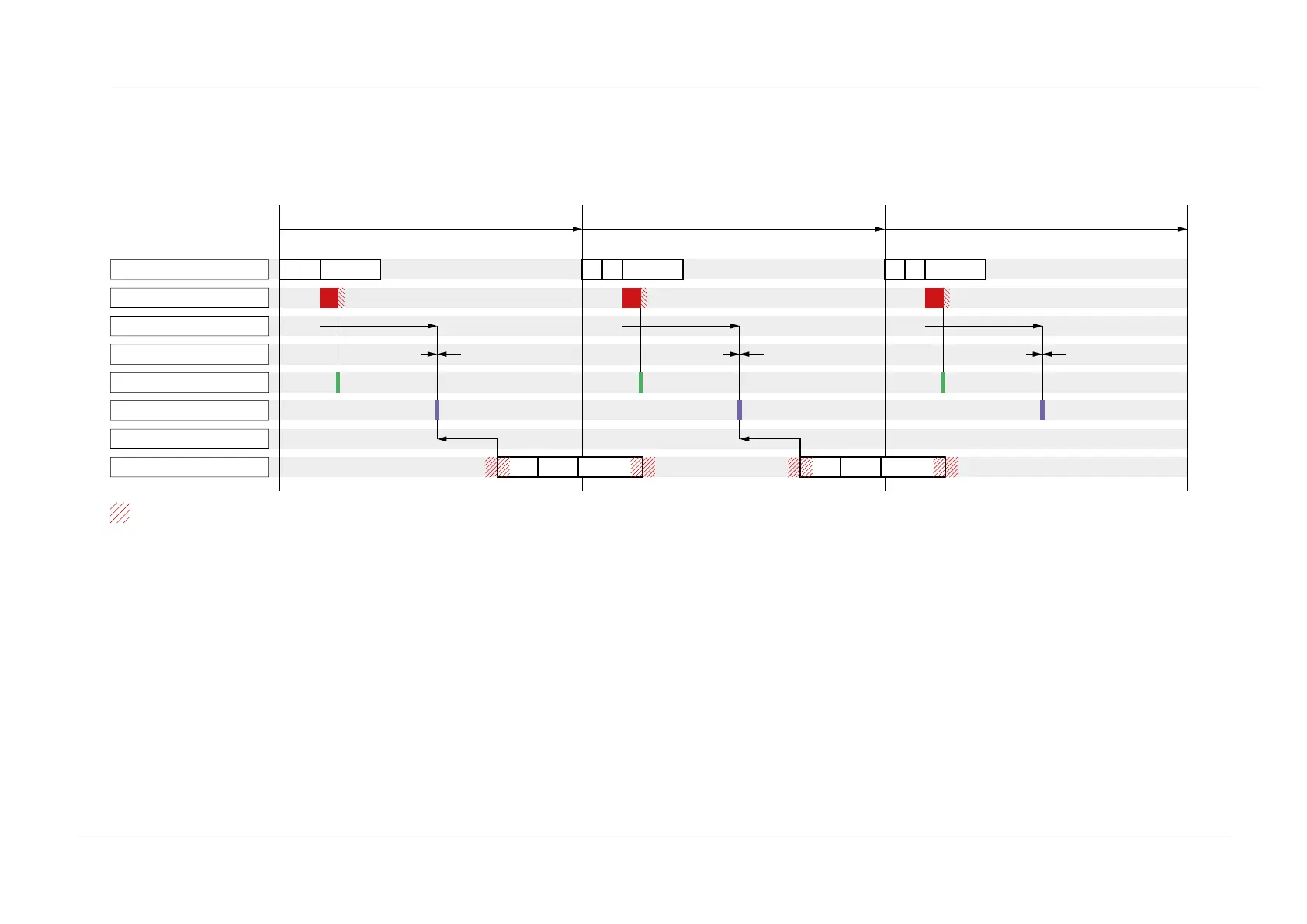

Fig.19: TwinCAT 3: DC-Sync – Stable synchronization, cycle time < 1ms
