Assembly and setting up 4
Assembling machine 4.2
4-9
Setting transformer to mains voltage:
1. Check the mains voltage of building mains supply.

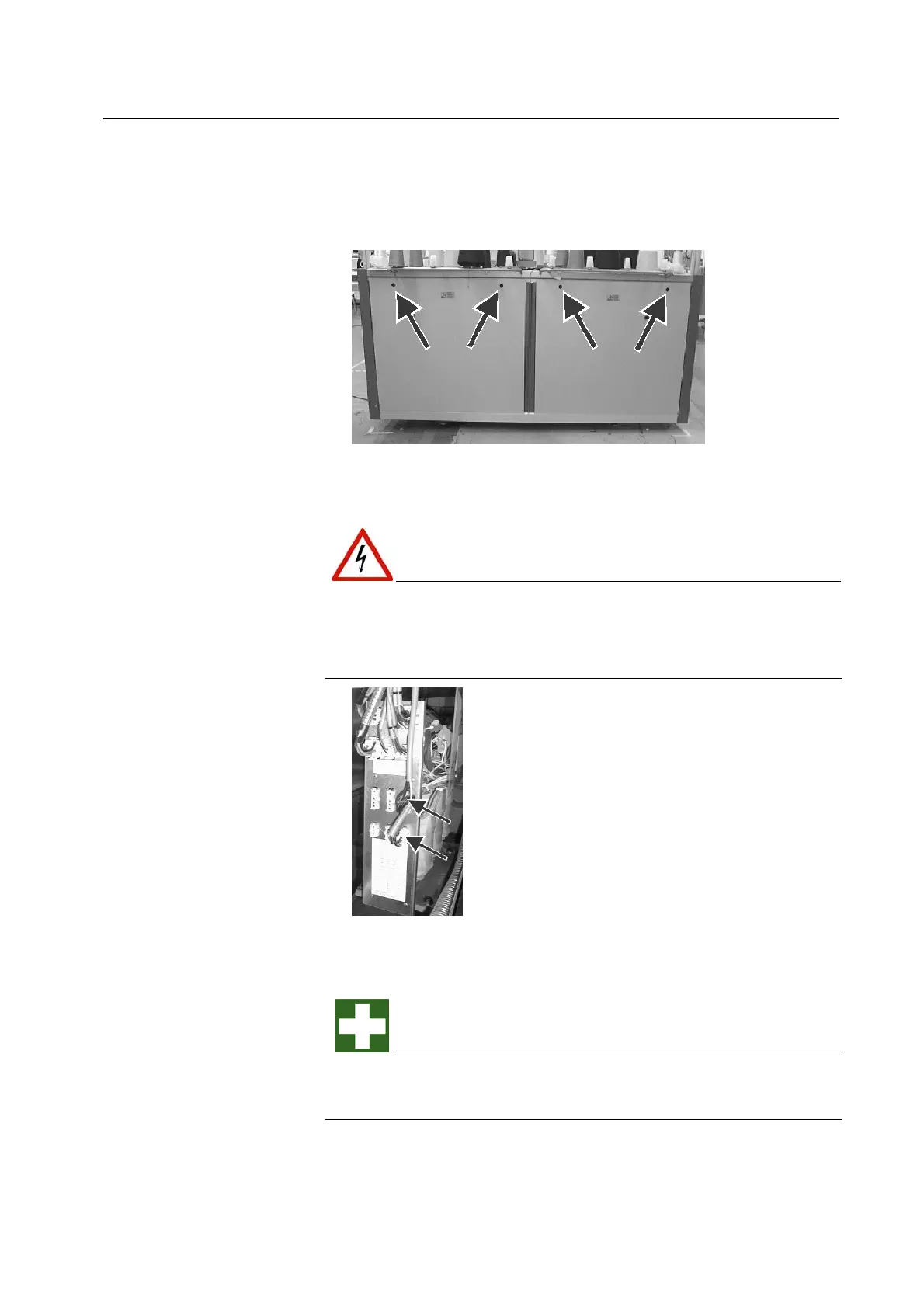

Fig. 4-6 Remove the rear panel segments
2. Open the rear panel segments with the key from the enclosed
accessories and take off the segments.
DANGER
High voltage!
Electrical shock may cause death or serious injuries.
Î Deenergize building mains supply.
Fig. 4-7 Transformer T1 at the rear of the knitting machine
3. Plug in the connectors XTA and XTB on the transformer T1 in
accordance with the building mains voltage.
The measured voltage differs from the setting value.
Î Select the mains voltage setting closest to the measured voltage.
