1.8 Guide light (Optional)
Guide light is optional for R2W PLUS Series total station. It is mainly used to stake out.
The Surveyor could adjust the position of prism and station through the guide light color.
It will be faster to set the prism.
The guide light could be seen within 100M. The distance will be effective by atmospheric
conditions and others.
Under the face left situation, the Surveyor should move telescope to left direction when
he only saw the green light or the light became bigger; If only saw the red light or red
light became bigger, the surveyor should move
telescope to the right direction. The move
direction will be contrary when the telescope is
in face right.

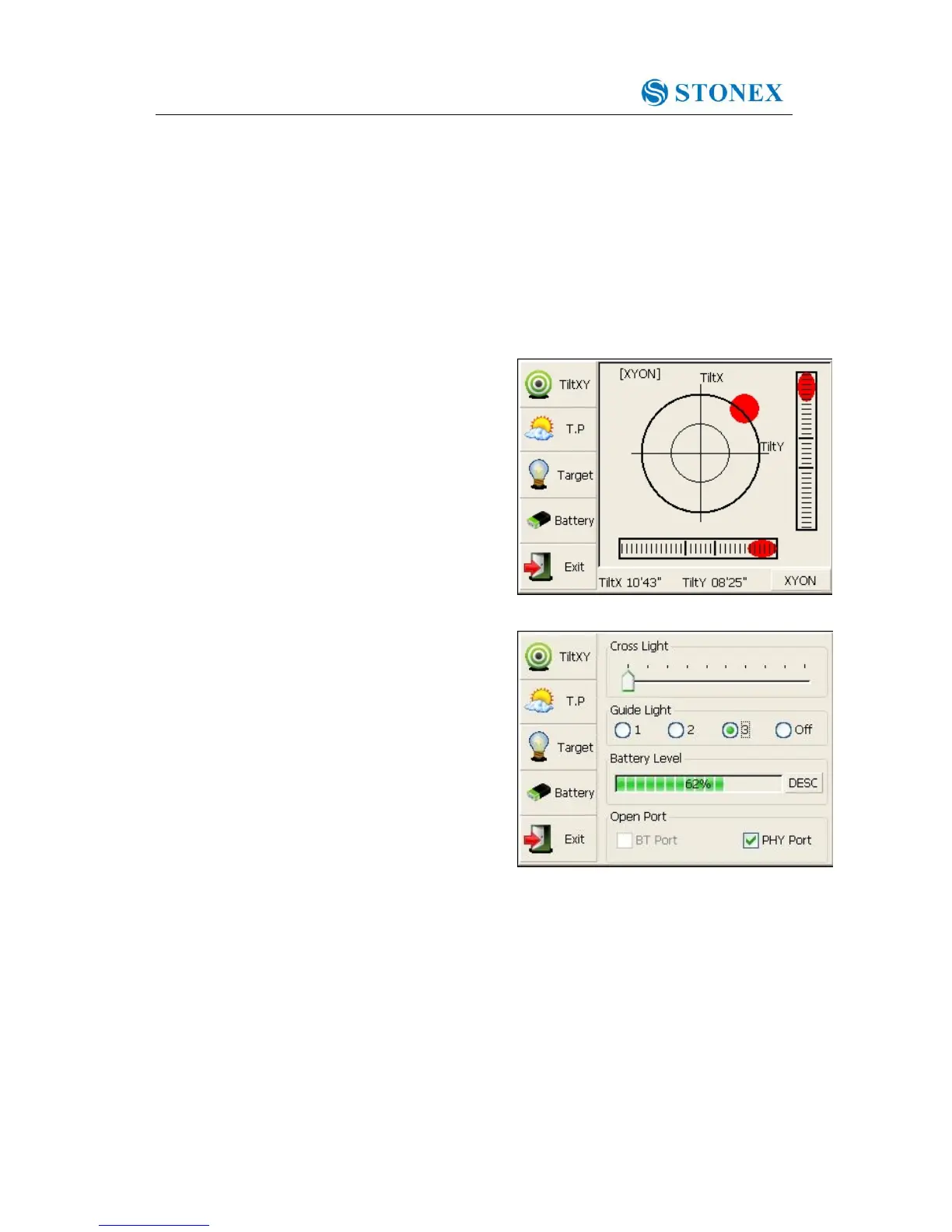

Guide light on/off: press【★】to open fast setting
menu, select Battery, if the instrument is
equipped with guide light module, 4 options for
Guide light are active, ①②③ are for adjusting
guide light intensity, select {Off} to turn off
guide light.
