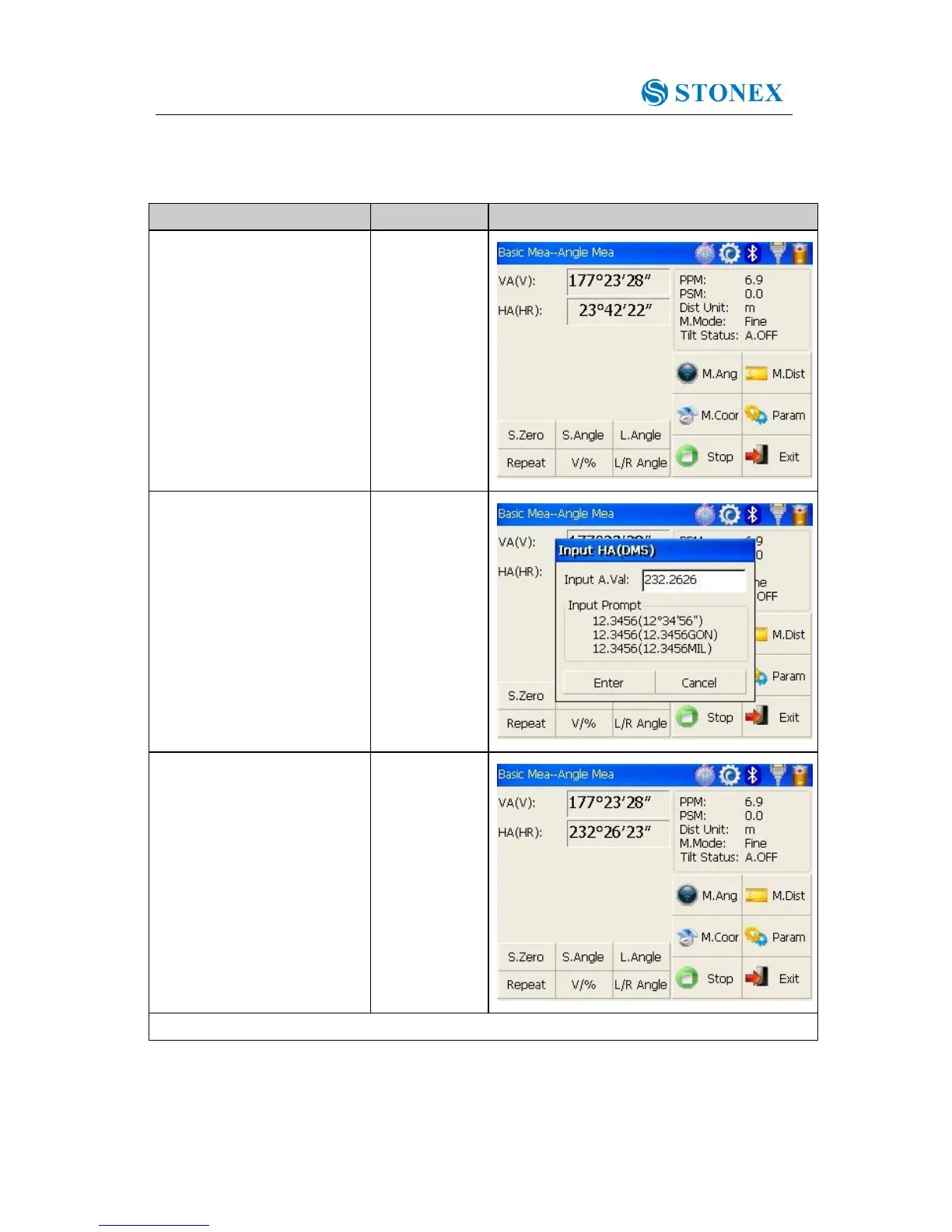

4.3.4 Setting horizontal angle with the “S.Angle” key
Make sure the operation is under angle measurement mode.
Operation steps
Keys
Display
①Collimate target point used
for Orientation.
②Click “S.Angle” key, and a
dialog box will be ejected,
as is showed in the right
figure.
③Input horizontal angle you
need.
※ 1
Such as:232°26' 26"
【S.Angle】
input
horizontal
angle
④With data entry complete,
click “Enter” key, and angle
measurement after
orientation will go on.
【Enter】
※1 Data entry should be referred to the format shown in the dialog box.
