4.4 Distance measurement mode
4.4.1 Distance measurement and measuring mode setting
Operation steps
Keys
Display

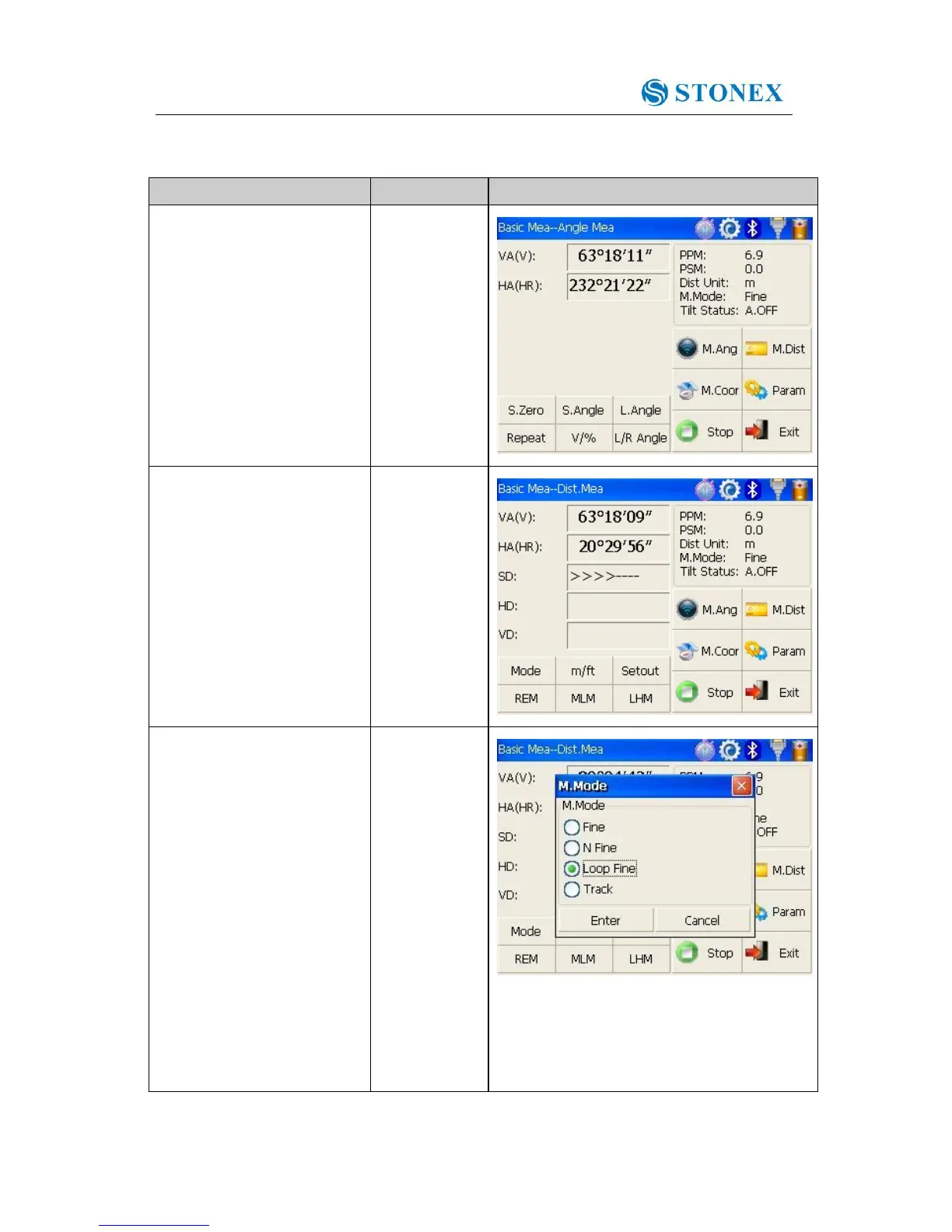

①Collimate the center of
prism.
Collimate
②Click “M.Dist” key to
enter distance measurement
mode, and then the system
will carry out measurement
based on previous setting
mode.
【M.Dist】
③Click “Mode” key to
activate setting function of
distance measurement mode.
Take “Loop Fine” as
example here.
Fine: single fine measuring
mode
N Fine: n times fine
measuring mode
Loop Fine: Continuous
measuring mode
Track: tracking measuring
mode
【Mode】
