R2W PLUS
39
Operation steps
Keys
Display

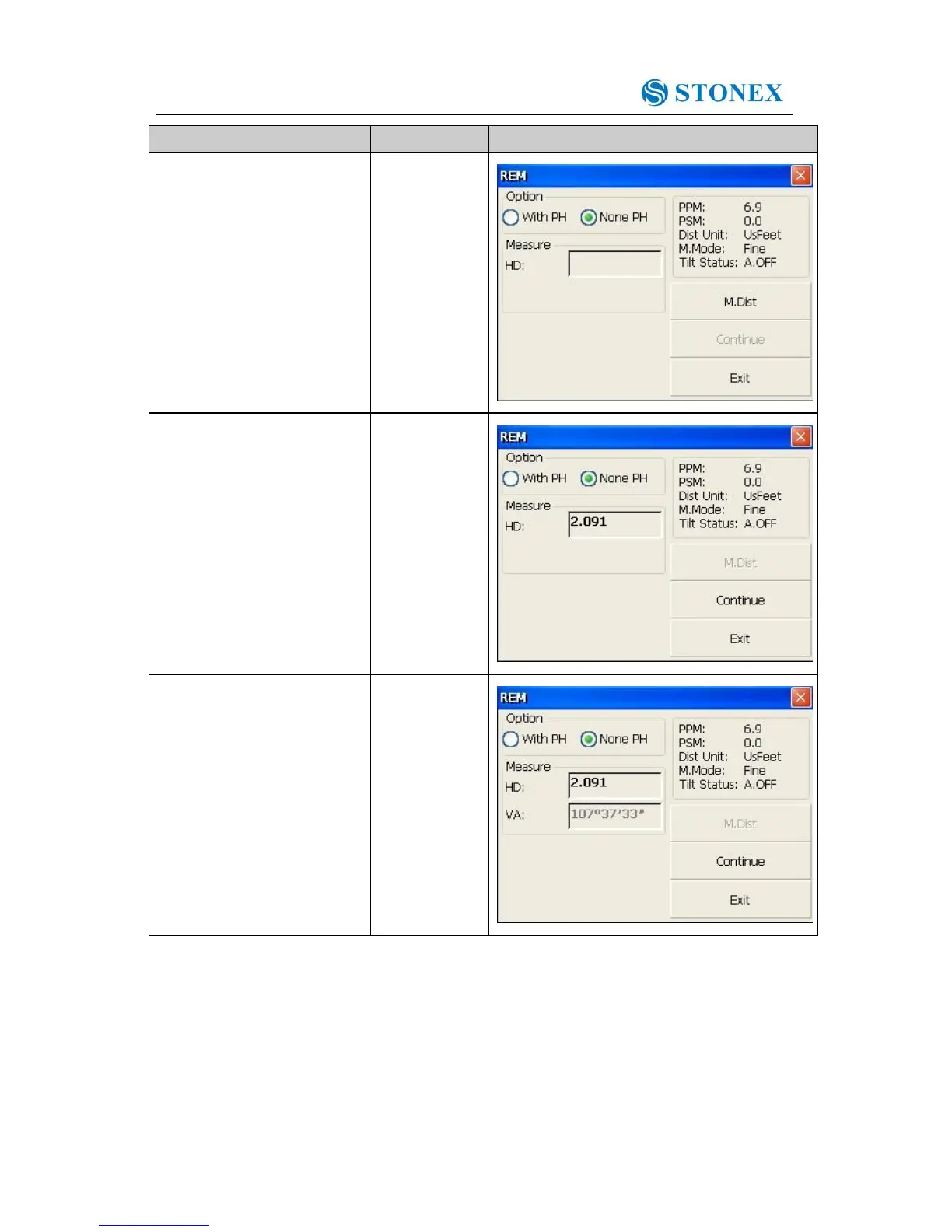

①Select “None PH” button
with stylus.
【None PH】
②Collimate the ground
point.
③Click “M.Dist” key to
start observing.
④Horizontal distance
between instrument and
prism will be shown.
Collimate
prism
【M.Dist】
⑤Click “Continue” key, and
position of ground point G is
locked that means reference
point is confirmed.
【Continue】
