R2W PLUS
43

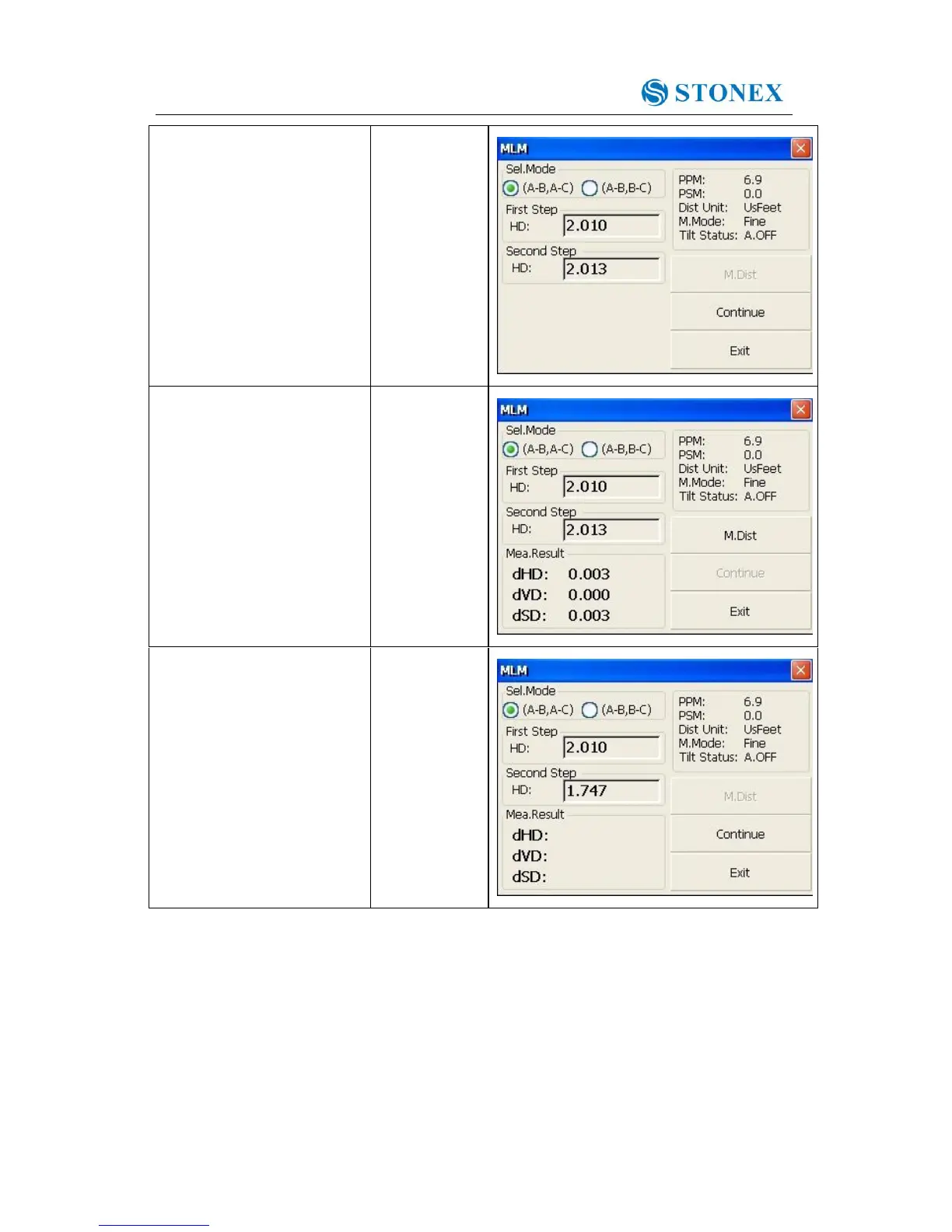

④Collimate prism B, click
“M.Dist” key.
【M.Dist】
⑤Click “Continue” key,then
horizontal distance (dHD),
elevation difference (dVD)
and slope distance (dSD)
between prism A and prism
B will display. ※1)
【Continue】
⑥In order to calculate the
horizontal distance between
points A and C, collimate
prism C, and click “M.Dist”
key again. Thus horizontal
distance between instrument
and prism C will be shown.
【M.Dist】
