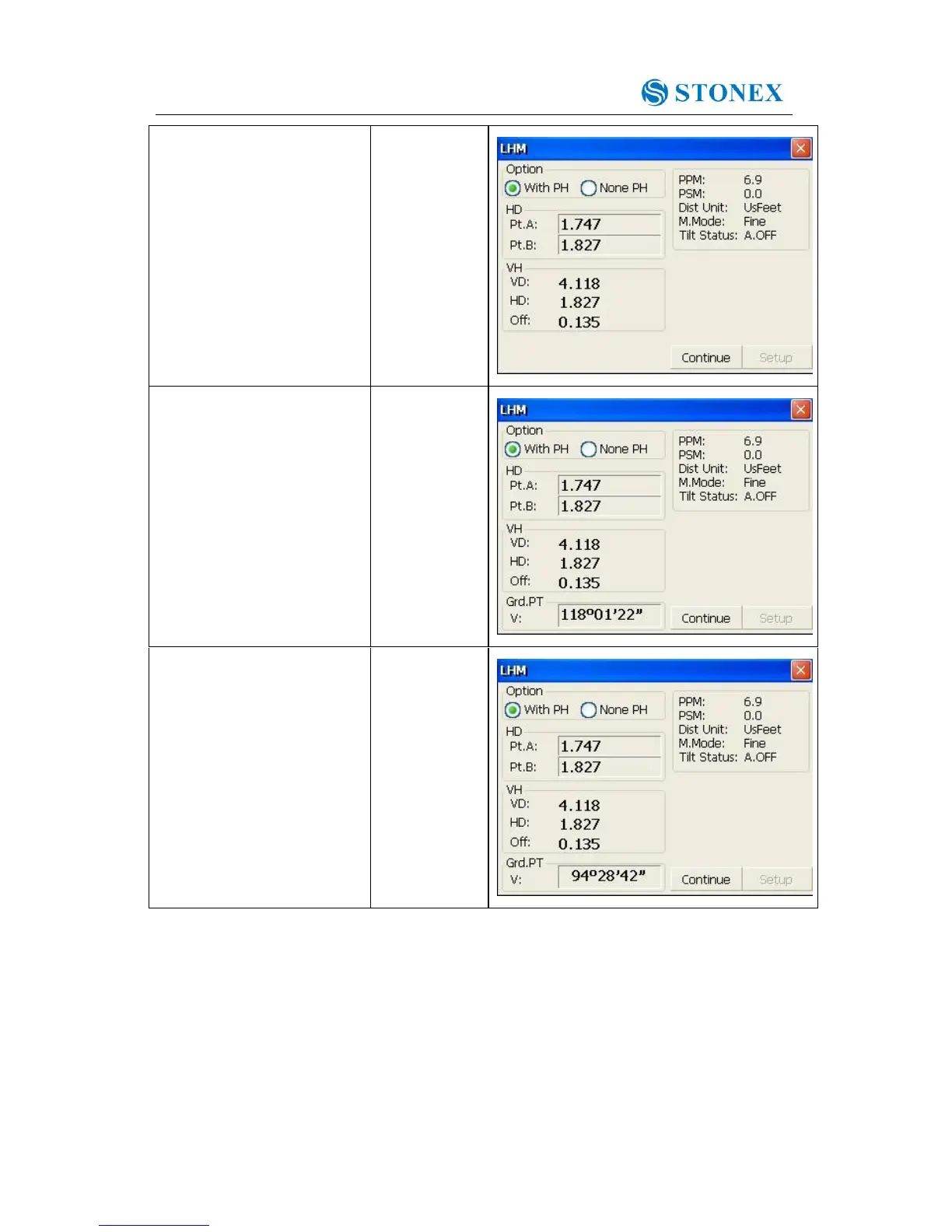

⑦Collimate point L on
overhead line. The screen
displays measuring data of
collimating L.
VD: Vertical distance
between A and L.
HD: Horizontal distance
between instrument and L.
Off: Horizontal distance
between A and L.
⑧Click “Continue” key
which is used for measuring
height between overhead
line and ground. Operation
steps:
●Collimate point on
overhead line before
clicking “Continue” key.
【Continue】
⑨Collimate ground point G
by screwing vertical tangent
part.
Collimate G
