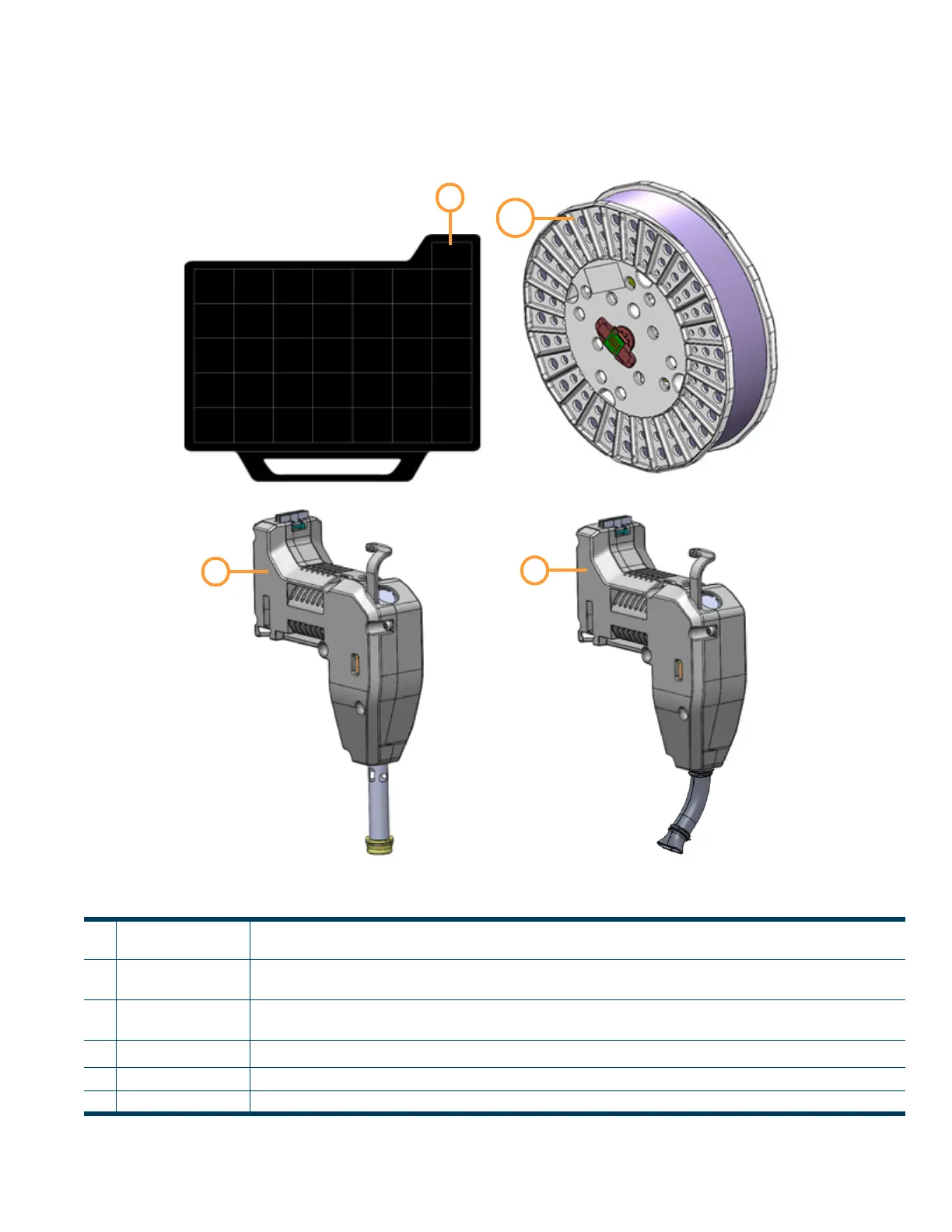

Figure 2-4: Additional Components - Startup Materials
The following items are not located within the Welcome Kit. Instead, they can be found within the oven chamber
and the storage drawer. The items found within the oven chamber must be removed before powering the printer
ON.
Table 2-4: Key for Figure 2-4
1 Substrate (x16) A substrate is the surface upon which a part is built. The same substrate is used for all model materials,
including PLA. See “Preparing the Printer” on page 120 for more information.
2 ABS Model Material
Spool
Material spool containing 60 in
3
(984 cc) of ABS model material (see “Materials Used” on page 34).
3 QSR Support
Material Spool
Material spool containing 60 in
3
(984 cc) of QSR support material (see “Materials Used” on page 34).
4 PLA Material Spool
Material spool containing 60 in
3
(984 cc) of PLA material (see “Materials Used” on page 34).
5 PLA Model Head Print head for use with PLA model material only (see “Print Heads” on page 33).
6 PLA Cooling Module Cooling module to be used in conjunction with the PLA model head (see “Print Heads” on page 33).
