AbraPol-10
Instruction Manual
11
Locate the electrical cable for the air solenoid valve (located
on the inner left side of the machine) and remove the cap
covering the stripped wires.
Open the cover of the DIN terminal by removing the screw
and connect the wires to the terminals.
Replace the cover for the DIN terminal.
Find the air supply hose and cut off the plug (stopper). Fix the
cut end into the air supply inlet.
Replace the front cover and reconnect main power.
Note:
It is not important to which terminal the wires are connected,
each wire can be connected to either terminal.

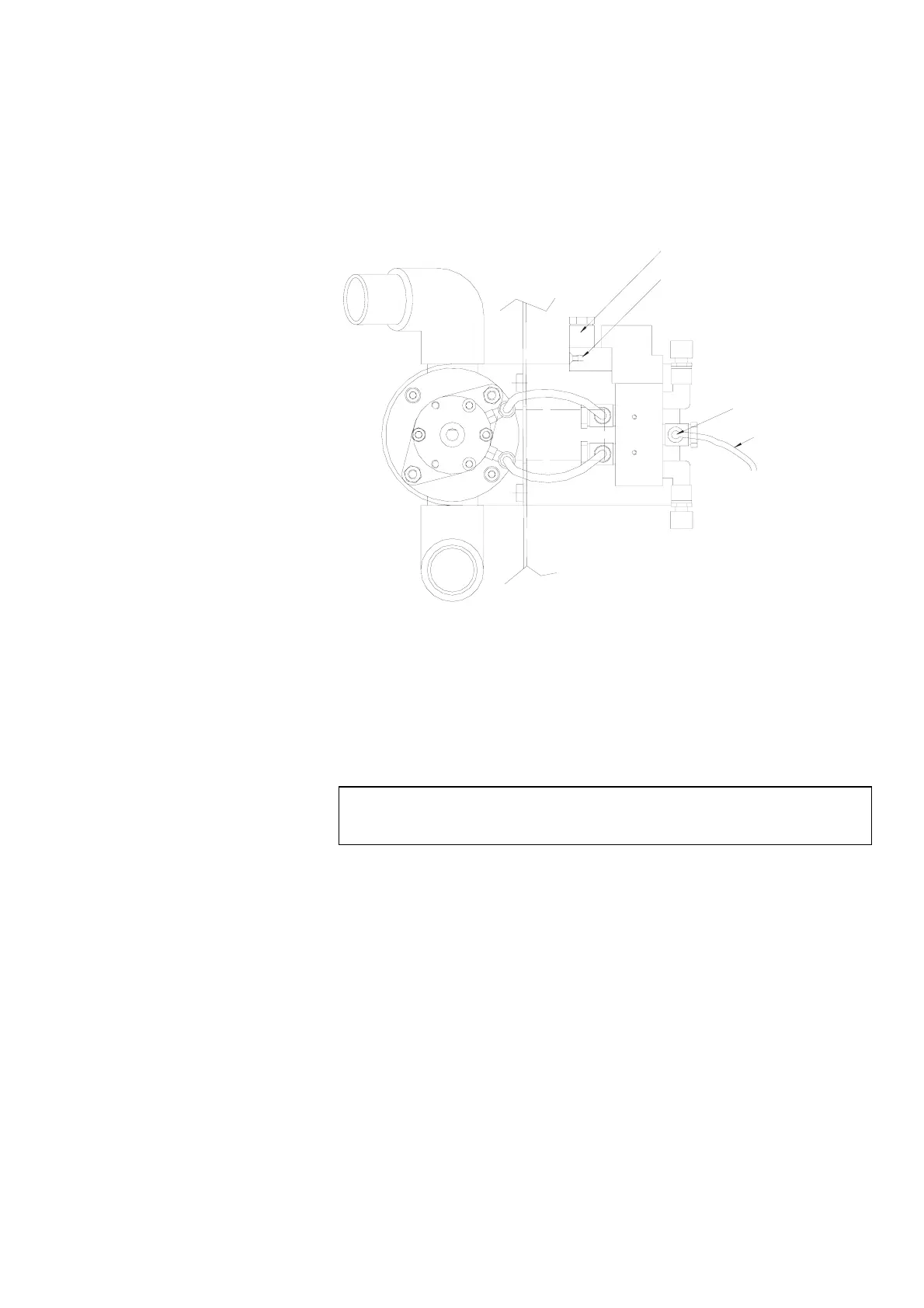

Air supply inlet
Air supply hose
DIN terminal
Screw
