OPERATING THE BASE CONTROLS - SIDE CONTROL
To operate the base controls, see Figure 1 to locate which pedals are used for what operation. Pedal (A) raises the
litter. Pedal (B) lowers the stretcher ends. Pedal (C) operates the brake and steer function for the foot end.
Pump pedal (A) to raise the litter
Depress the center of pedal (B) to lower both ends of the
stretcher together.
Depress the side of pedal (B) closest to the foot end of
the stretcher to lower the foot end.
Depress the side of pedal (B) closest to the head end of
the stretcher to lower the head end.
Pedal (C) - Brake and Steer functions

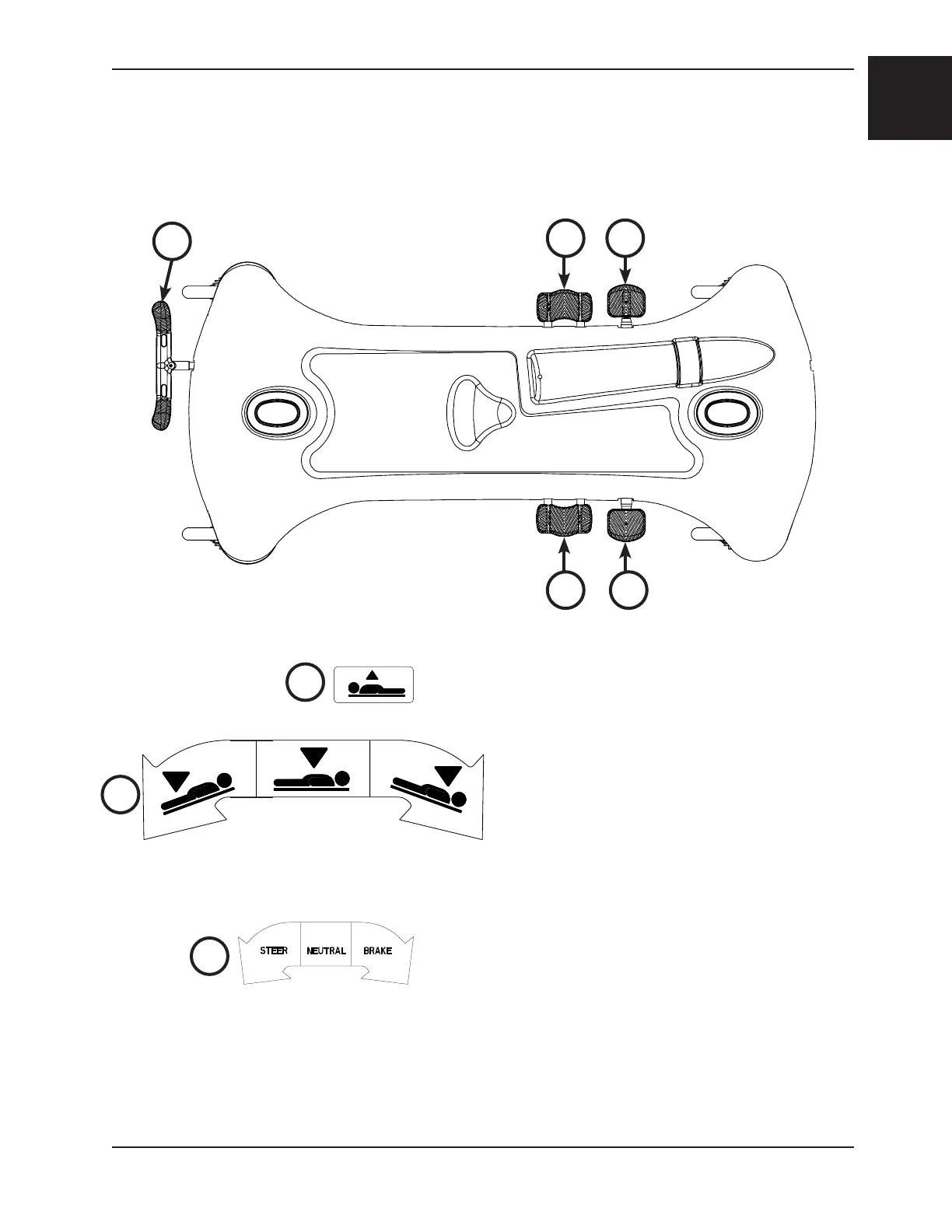

Figure 1: Stretcher Base Controls - Side Control
A
B
C
B
B
A
A
C
