OPERATING BASE CONTROLS - 3-SIDED CONTROLS
Operation Guide

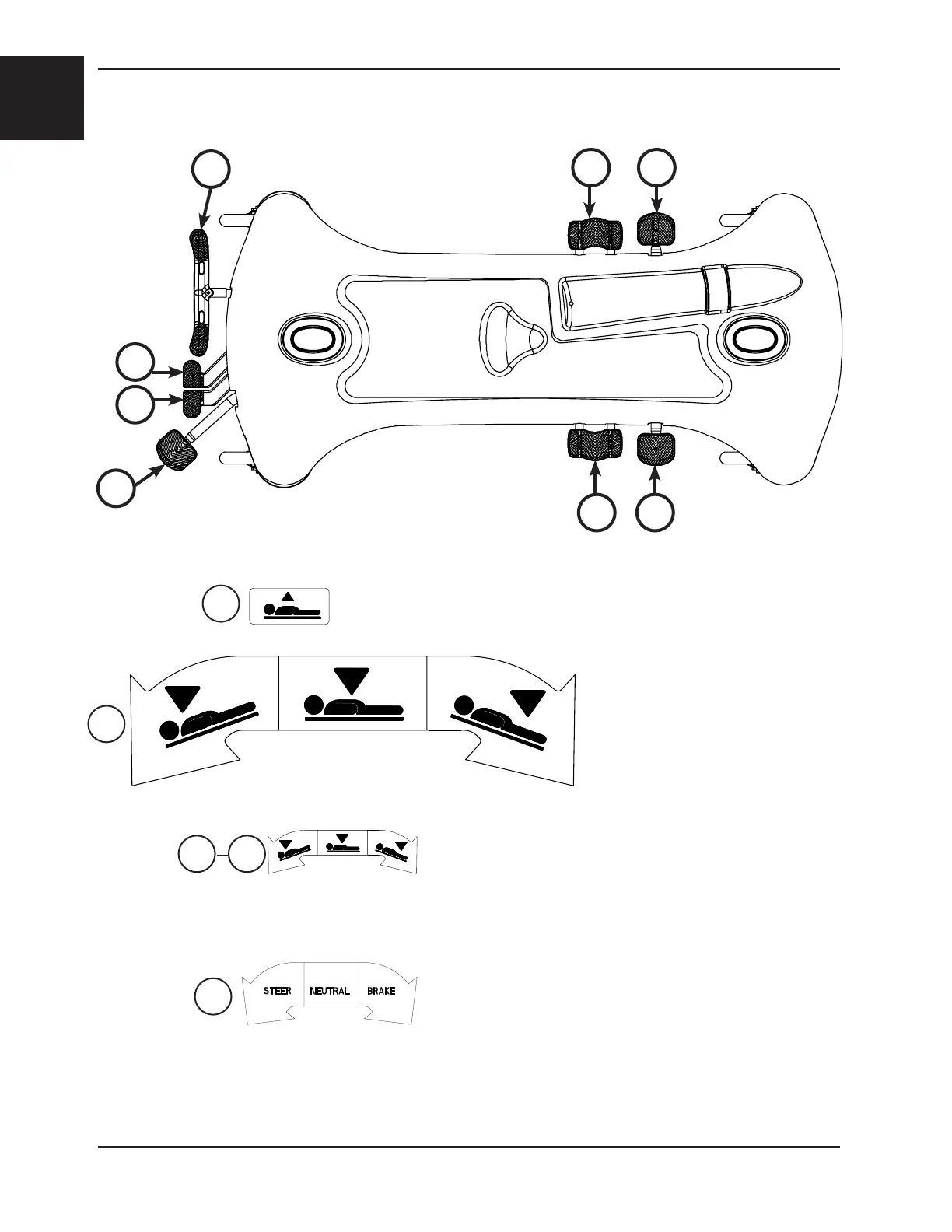

Figure 2: Stretcher Base Controls - 3-Sided Control
Pump pedal (A) at the foot end or sides of the stretcher to raise the litter
Pedal (E) - Brake and Steer functions (foot end)
A
C
E
DB
Depress pedal (B) or the side of pedal (C) closest to the head
end of the stretcher to lower the head end of the stretcher.
Depress pedal (D) or the side of pedal (C) closest to the foot
end of the stretcher to lower the foot end of the stretcher.
Depress in the center of pedal (C) or depress pedals (B) and (D)
together to lower both ends of the stretcher together.
B
A
D
C
C
A
A
E
