USING THE OPTIONAL PRE-OP/POST-OP HEAD EXTENSIONS (CRANK FOWLER ONLY)
The Pre−Op/Post−Op head extensions provide additional litter surface to
protect the patient’s head during transport.
Note: The head extensions can be used as push handles when the
stretcher is being moved.
To add the extensions to the litter:
1. Slide the extension tube into the receptacle tube on the side of the
fowler frame.
2. Pivot the extension upward until it locks into place on the head piece
frame.
To release the extension:
1. Pull the red knob (A) under the extension toward you.
2. Rotate the extension downward.
3. Pull the extension straight out of the socket.
USING THE OPTIONAL INFLATABLE HEAD SUPPORT CUSHION
The optional inflatable head support cushion has two internal air
bladders to cushion and provide more stability for the patient’s head.
To inflate the bladders, squeeze the bulb (A).
To deflate the bladders, press the release valve (B).

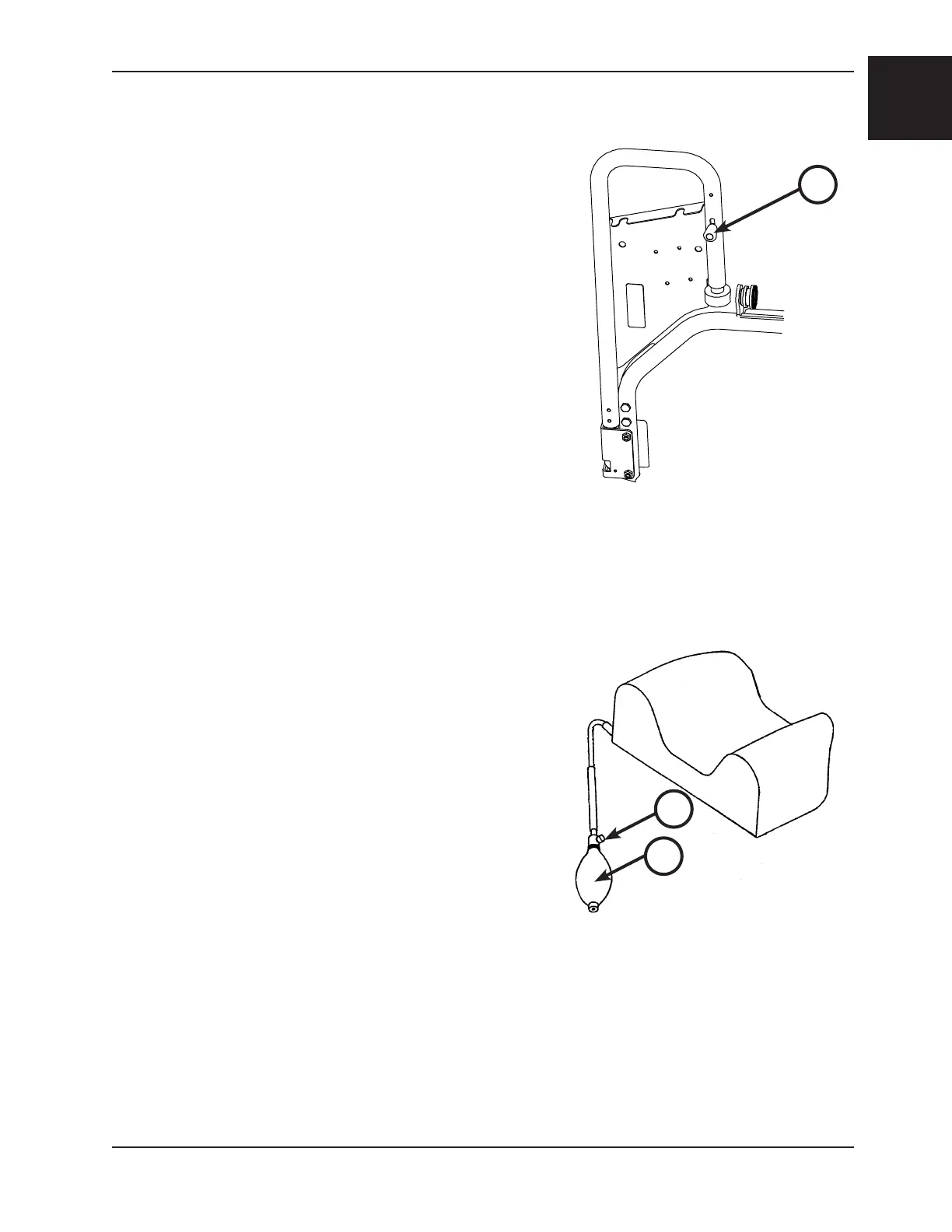

Figure 10: Head Extensions
A
Figure 11: Head Support Cushion
B
A
