Operation Guide
USING THE OPTIONAL WRIST RESTS
There are two optional wrist rests available:
• Standard (1)
• Temporal (2)
To use the wrist rest:
1. Insert the support tube (A) into the socket in the fowler
head piece assembly.
2. Turn the knob (B) clockwise to secure the wrist rest
assembly.
To adjust the height of the wrist rest:
• Turn the knob (C) counterclockwise to loosen it.
• Raise or lower the wrist rest to the desired height.
• Turn the knob clockwise to tighten it and hold the wrist
rest in place.
Note: The ”U” shaped rest (D) can be pivoted up and away
from the patient when the wrist rest is not in use.
USING THE OPTIONAL DRAPE SUPPORT/OXYGEN TUBING
The optional drape support/oxygen tubing provides an integrated drape support and patient air delivery system.
The oxygen tubing is located inside of the flexible support tube.
Place the mounting tab (A) into the I.V. receptacle at the head end of the stretcher and insert the oxygen delivery line
into the oxygen tube receptacle (B).
Note: The assembly can be adjusted for maximum patient comfort.
Figure 13: Oxygen Tubing
B
A
1
2

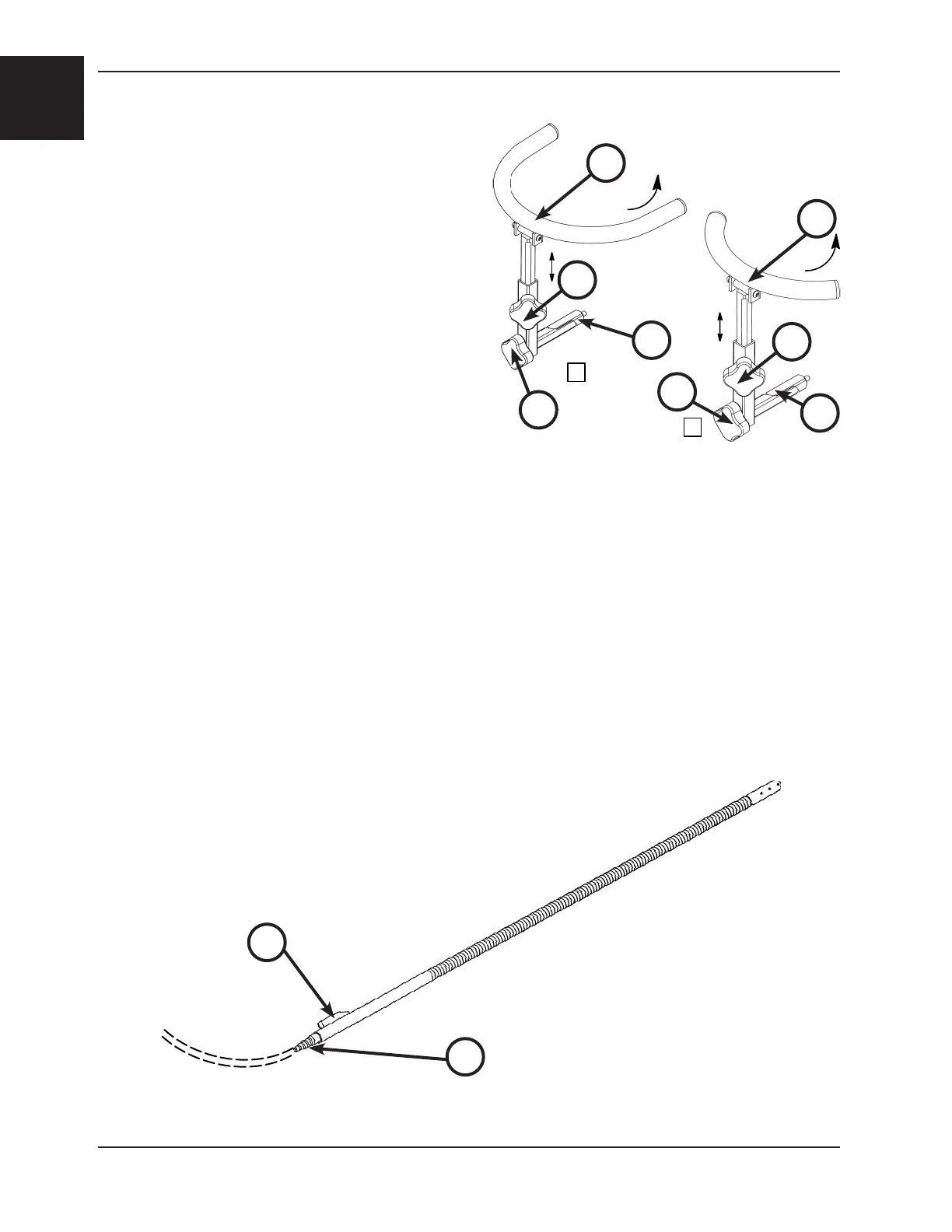

Figure 12: Wrist Rests
A
C
A
B
C
B
D
D
