X-Ray Cassette Holder - FA64205
The Optional X-Ray Cassette Holder was designed to hold the necessary material in order to perform X-Rays with the
bed.
INSTALLATION
Required Tools:
• #2 Phillips Screwdriver
1. Raise the fowler to the full upright position.
2. Apply the brakes if they are not already engaged.
3. Unplug the bed and turn off the battery disconnect switch.

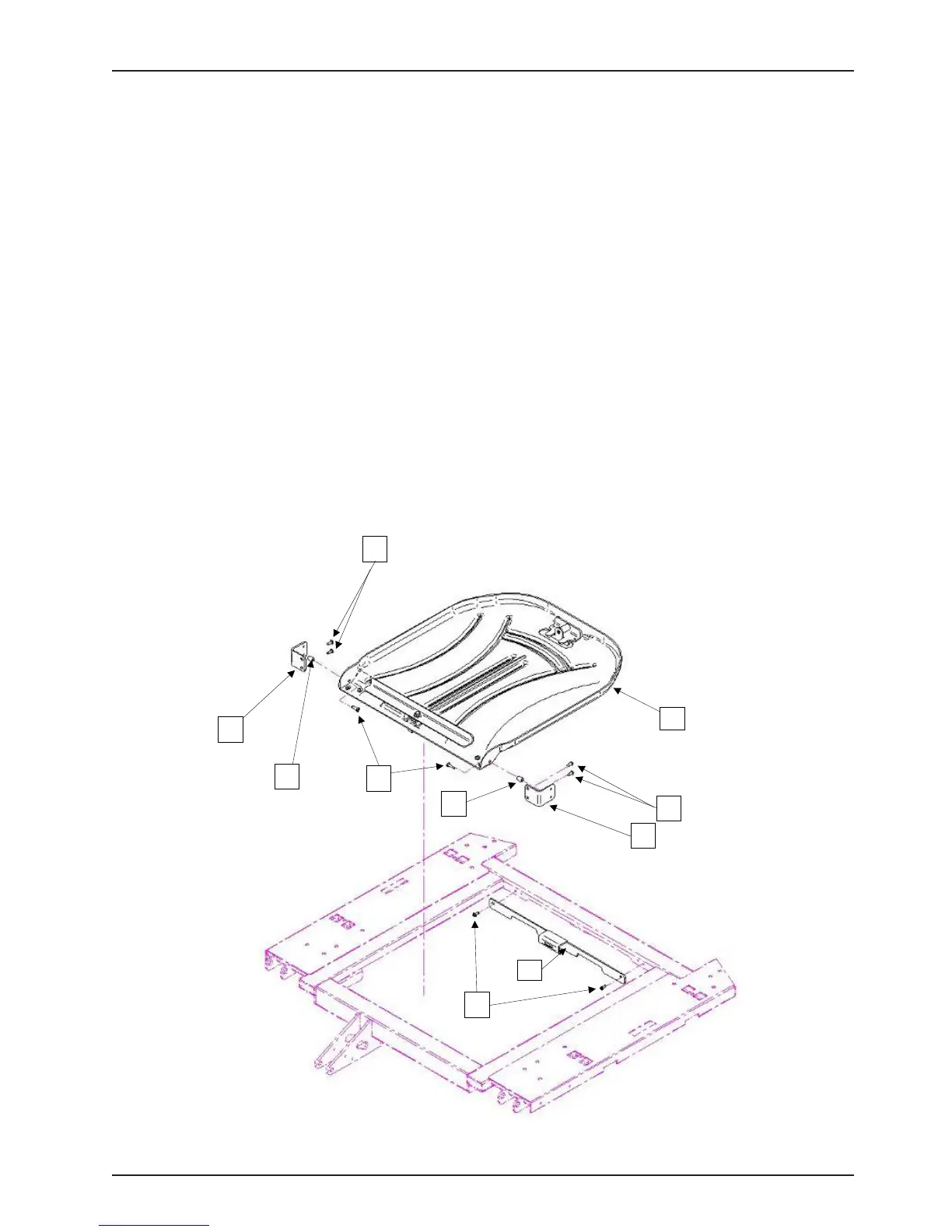

4. Using a Phillips screwdriver, install the bracket assembly (A) to the the top of the fowler frame with two #10 x ½”
tapping screws (F).
5. Using a Phillips screwdriver, install the two Cassette Holder Pivot brackets (B) into the lower section of the fowler
with four #10 x ½” tapping screws (G).
6. Using the Phillips screwdriver, install the X-Ray Cassette Holder Plate (C) into the Cassette Holder Pivot brackets
(B) with two #10 x 3/4” tapping screws (E) and two spacers (D)
Note: Make sure to close the X-ray cassette holder support after using it to avoid damaging it when there is
a movement of the fowler section or of the list system.
C
B
E
D
G
F
G
B
D
