CCaabbllee llooccaattiioonn VVoollttaaggee PPoossiittiivvee lleeaadd NNeeggaattiivvee lleeaadd DDeessccrriippttiioonn
SK1 120AC Pin 1 brown Pin 2 blue 120VAC power in to
the power supply
SK2 (A) +5VDC Pin 1 red Pin 3 green +5VDC from the
power supply for the
main board
SK2 +12VDC Pin 2 black Pin 3 green +12VDC from the
power supply for the
main board
SK2 +24VDC Pin 7 blue Pin 3 green +24VDC from the
power supply
SK2 -12VDC Pin 8 blue Pin 6 red -12VDC from the
power supply for the
foot box fans

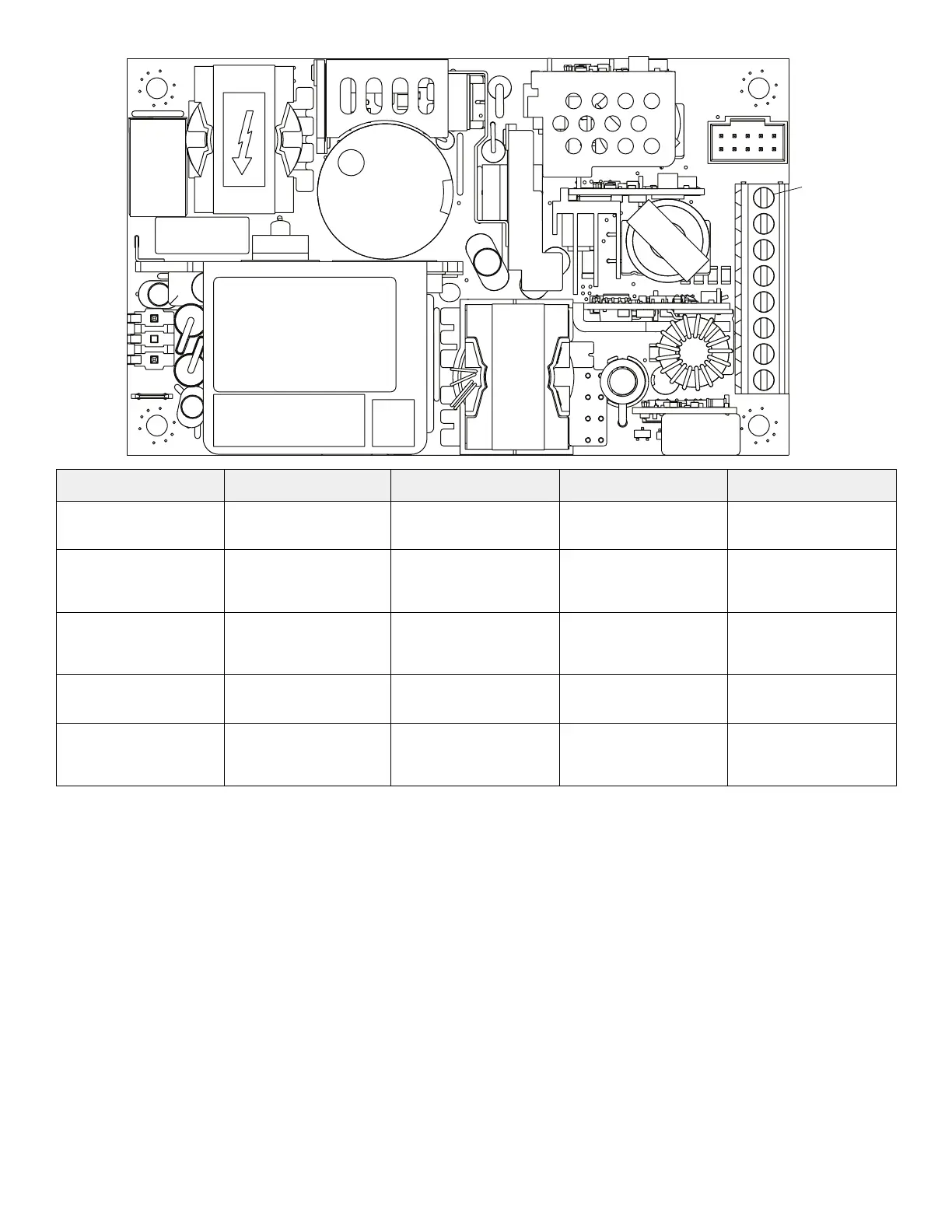

MMaaiinn ppoowweerr bbooaarrdd aasssseemmbbllyy
2971-022-140 Rev L (Reference only)
EN 14 2971-009-002 Rev D.0
