Stryker Isolibrium 2971 Maintenance Manual

G
H

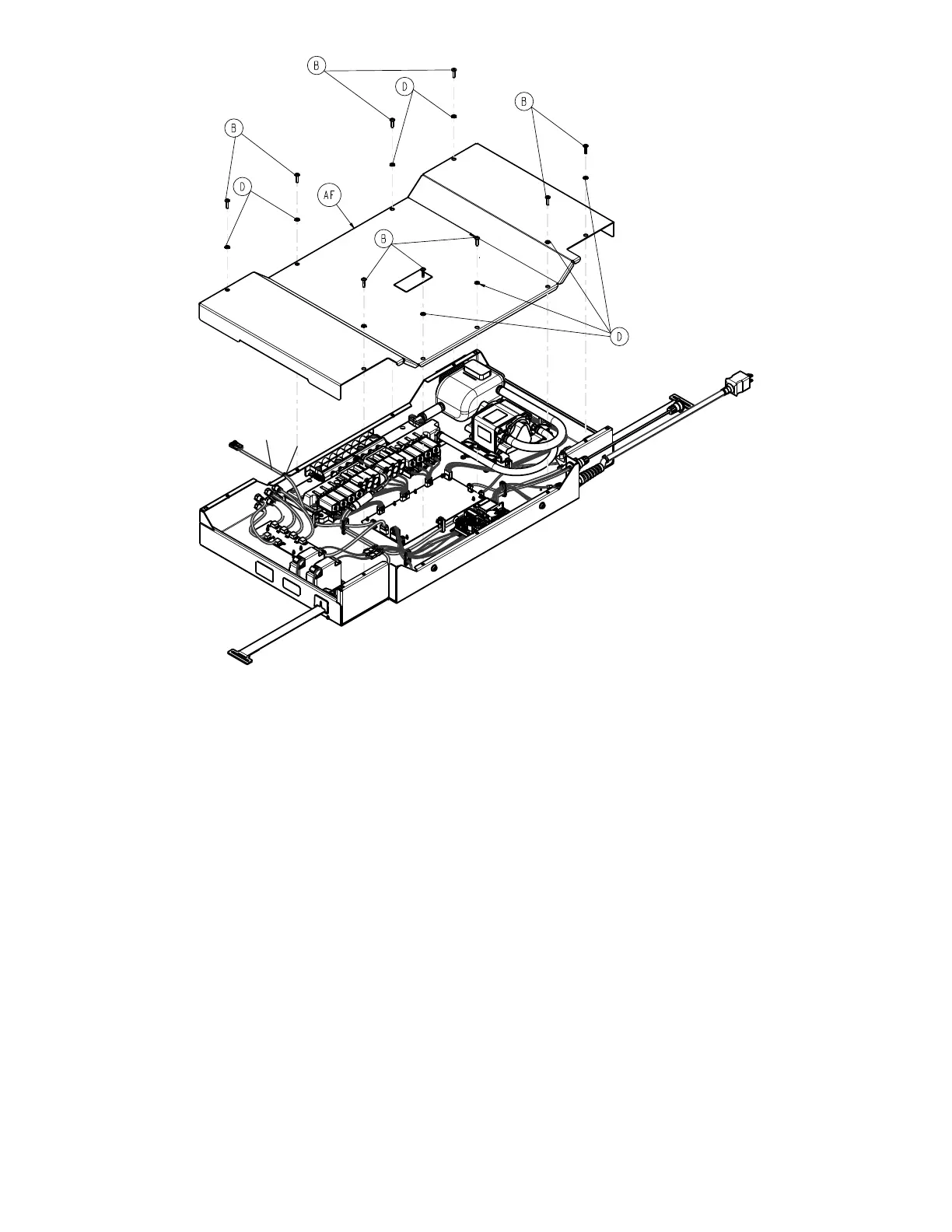

FFiigguurree 1111 –– FFoooott bbooxx ccoovveerr
15.Reverse to reinstall.
SSoolleennooiidd vvaallvvee rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• Zipper pull tool or equivalent
• Torque driver
• ESD system
PPrroocceedduurree::
1. See (
Foot box cover access (page 31)).
2. Properly ground yourself (see
Protecting against electrostatic discharge (ESD) (page 25)).
3. Using the supplied torque driver, remove the two screws that secure the solenoid valve (H, J, or K) to the manifold
assembly (Figure 12). Save the screws.
NNoottee -- During installation tighten the screws equally. Use the supplied torque driver and torque the screws to 4.4 in-lb.
EN 34 2971-009-002 Rev D.0
