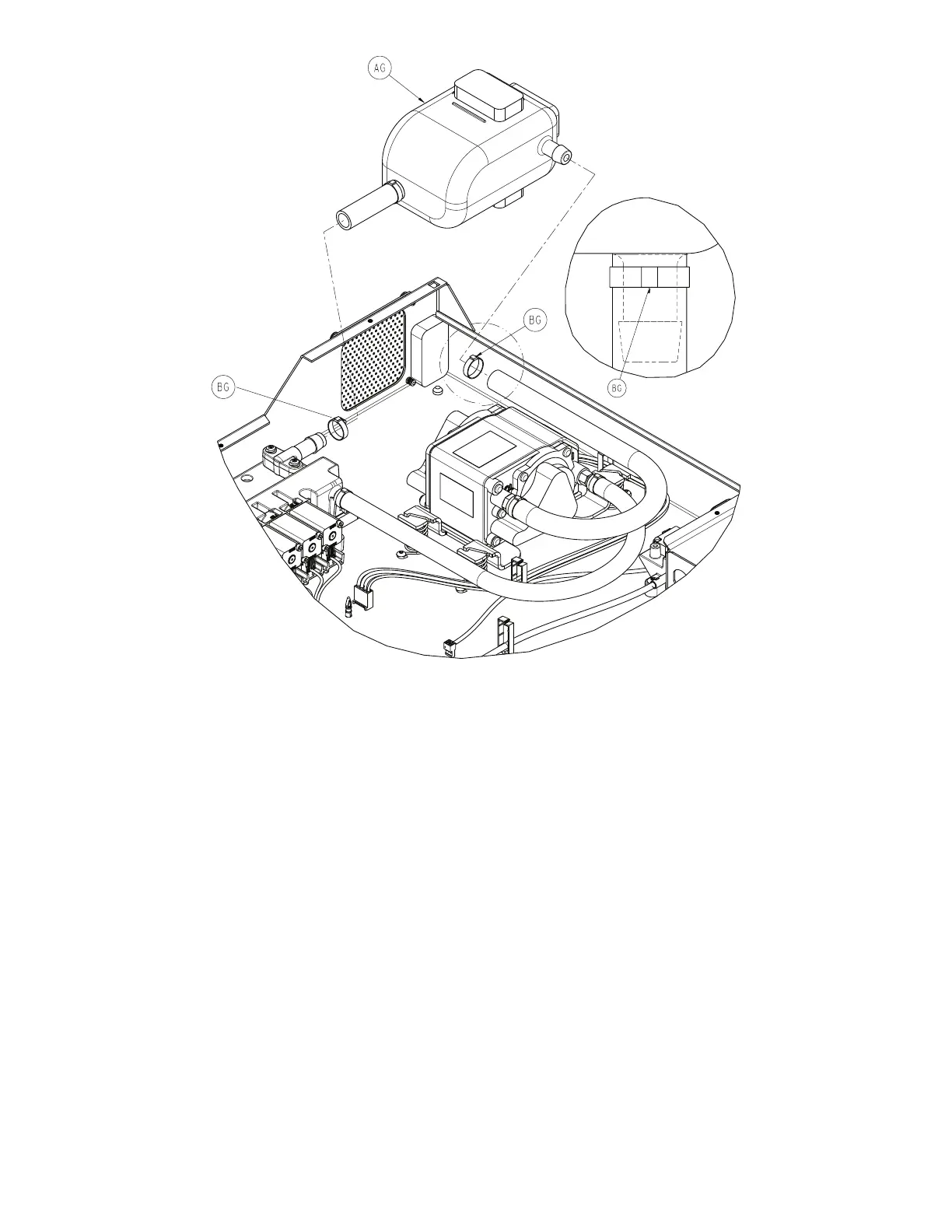

FFiigguurree 2244 –– RReessoonnaattoorr
3. Pull to disconnect each of the hoses from the resonator (AG) and the manifold (Figure 24).
4. Remove and discard the resonator.
NNoottee -- During reinstall, make sure that the compressor supply hose is not kinked or bent.
5. Reverse steps to reinstall.
NNoottee
• During reinstall, make sure to align the Velcro® patches.
• After installation, remove the zipper pull tool or equivalent from the zipper.
• Make sure that the watershed covers the zipper.
6. Verify proper operation before returning the product to service.
TTuurrnn bbllaaddddeerr aasssseemmbbllyy rreeppllaacceemmeenntt
TToooollss rreeqquuiirreedd::
• Zipper pull tool or equivalent
• Diagonal pliers
PPrroocceedduurree::
1. Remove the top cover. See
Cover replacement, top
(page 25) for removal.
2971-009-002 Rev D.0 47 EN
