2. Separate the six Velcro® connectors holding the foot section gel crib to the pod assembly.
3. Remove the foot section gel crib (F) (Figure 25). Save the gel crib.

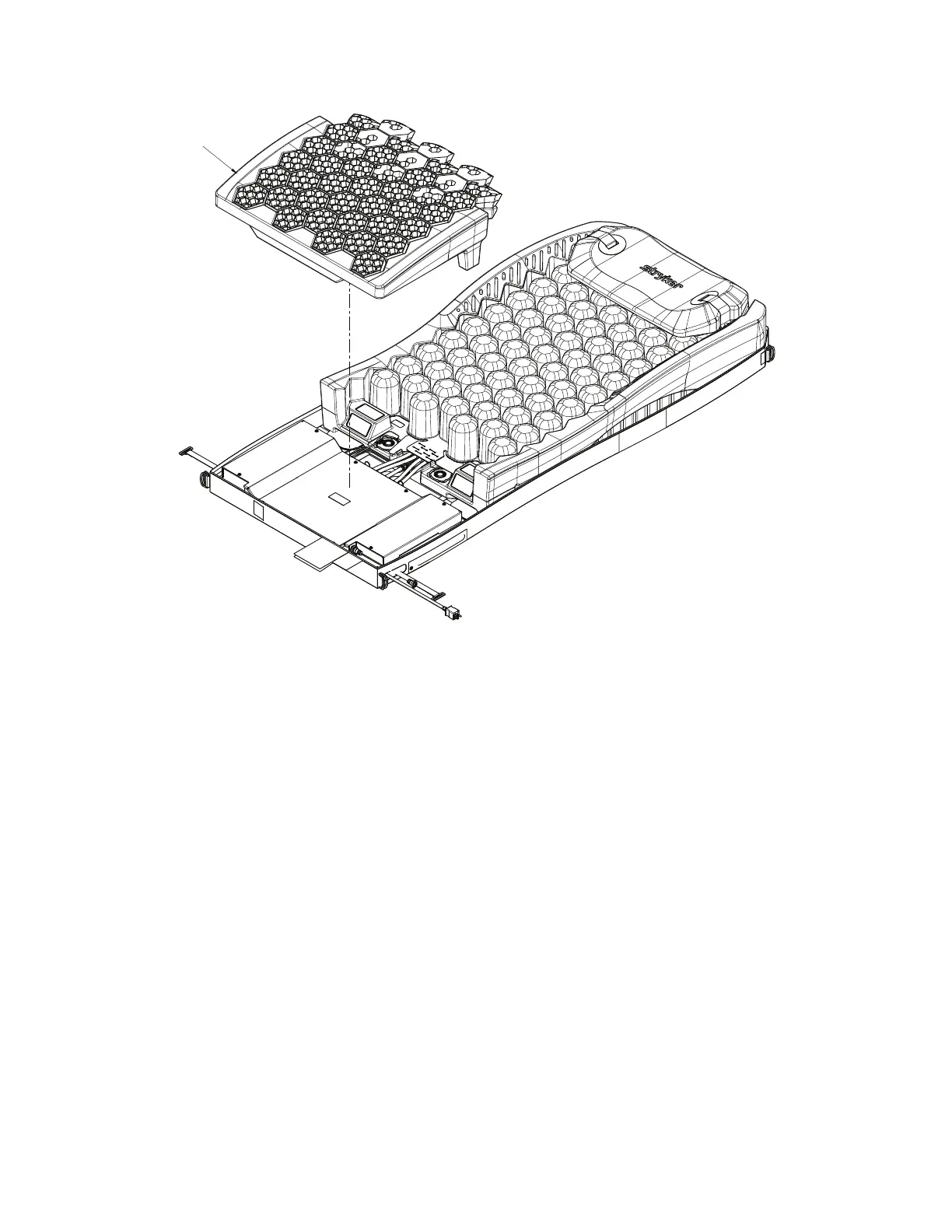

FFiigguurree 2255 –– GGeell ccrriibb
4. Lift up on the bottom corner of the pods assembly and foam crib and disconnect the turn bladder quick disconnect.
Repeat for the opposite side.
5. Remove the turn bladder red and black sensor hoses from the foot box. Push in on the sensor hose quick connector and
then pull outward on the hose.
NNoottee -- Do not kink or bend the hoses.
6. Remove the hoses from the purse clips.
7. Lift up on the foam crib, reach between the foam crib and the bottom cover to unhook the six Velcro® retainers (A) and
unsnap the 12 snap retainers (B) (Figure 26). Repeat for the opposite side.
EN 48 2971-009-002 Rev D.0
