OPERATING THE OPTIONAL FOOT EXTENSION/DEFIBRILLATOR TRAY
To use as a defibrillator tray, pull out the top knob (A) and pivot
the tray (B) over the foot extension (C) until the tray extends
flat over the foot end of the stretcher as shown in Figure 15.
To use as a foot extension, pull out knob (A) and pivot the
defibrillator tray back until it locks against the foot extension
(C). While holding onto the assembly, pull out the bottom knob
(D) and lower the foot extension down until it is flat as shown
in Figure 15.
WARNING
If the stretcher is equipped with the optional foot end I.V. pole, the
I.V. pole must be in the raised position when the foot extension/
defibrillator tray is installed. If the I.V. pole is not raised, the foot
extension will not function properly and injury could occur.
If the stretcher is equipped with the optional foot end push
handles, use caution while the foot extension/defibrillator tray
is installed to avoid pinching your fingers.
A
B
C
D
Return To Table of Contents
Stretcher Operation

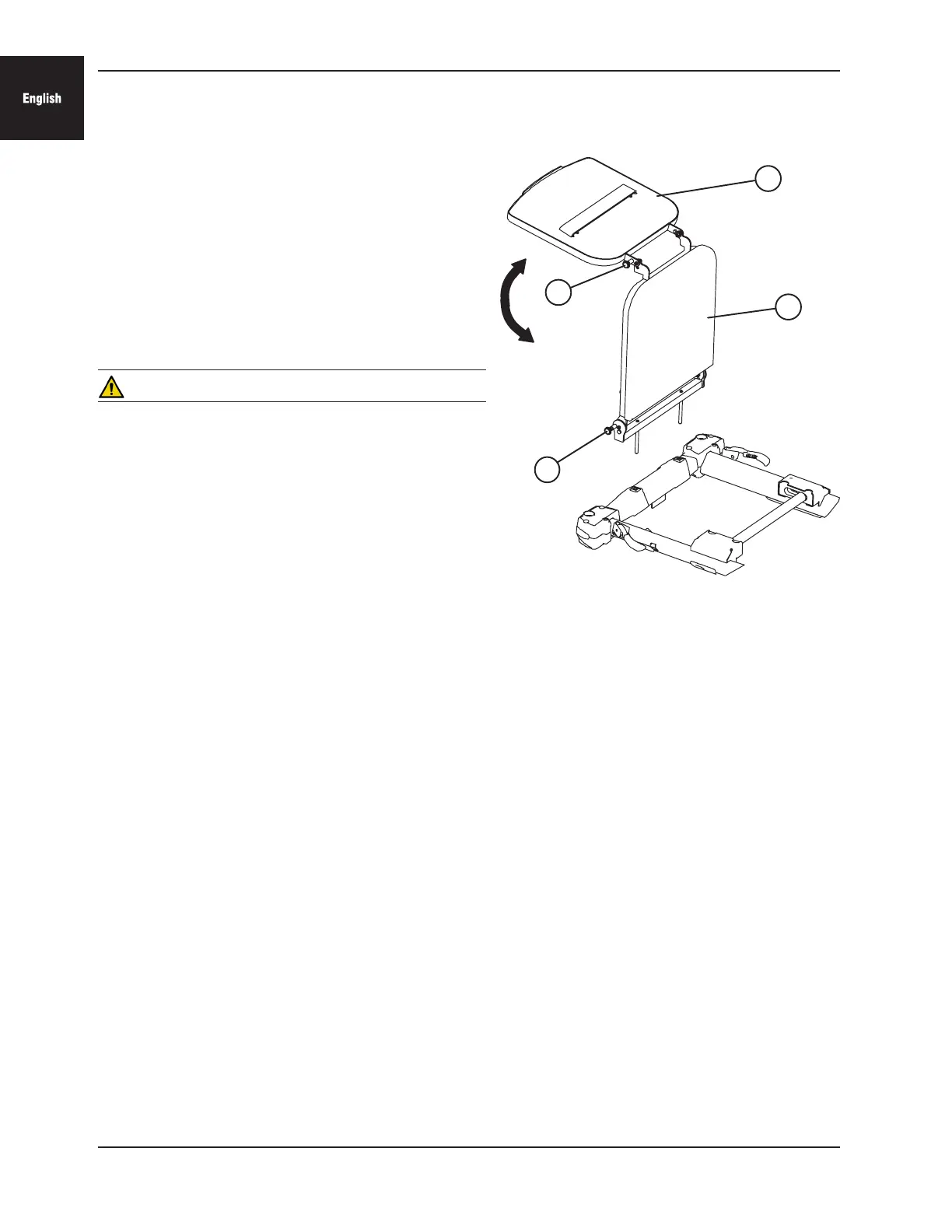

Figure 15 - Optional Foot Extension/
Defibrillator Tray - Foot End
